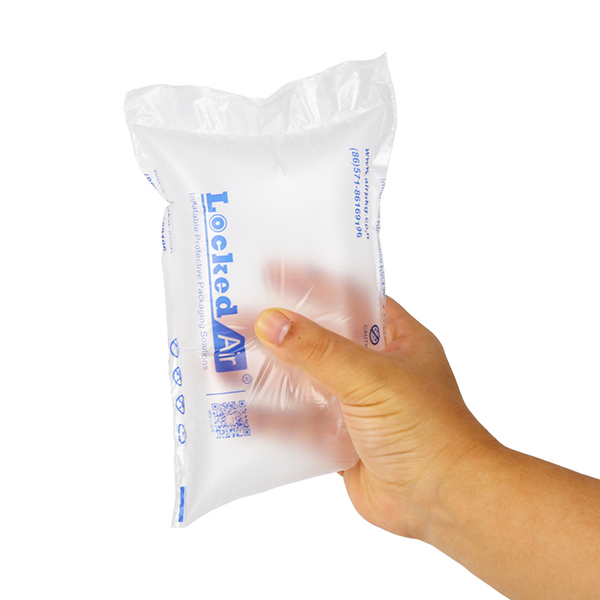

Air Pillow Bag

Introduction Of Air Pillow Bag

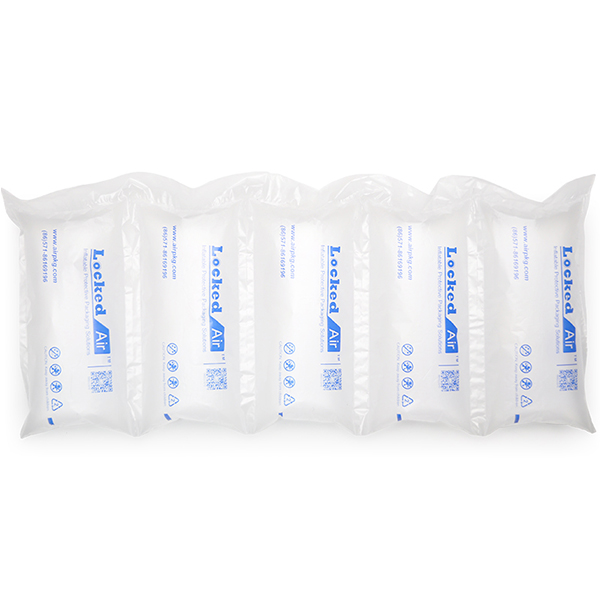

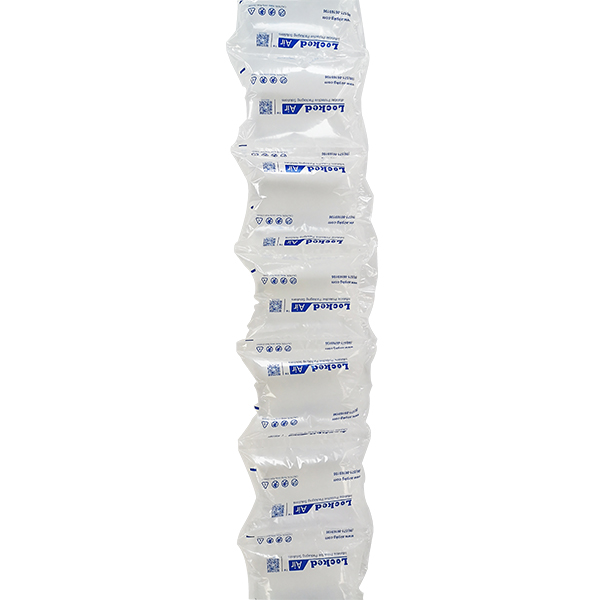

LockedAir Air Pillow Bag-ME series

Designed for high though put void fill.
Pillows per carton is available, to reduce loading effort.
With tension release pattern design, more air can be blow in.

Advantages of Locked Air^®:

Strong sealing
No air leakage
Positive inside air pressure
High uniformity
Maximum value of film

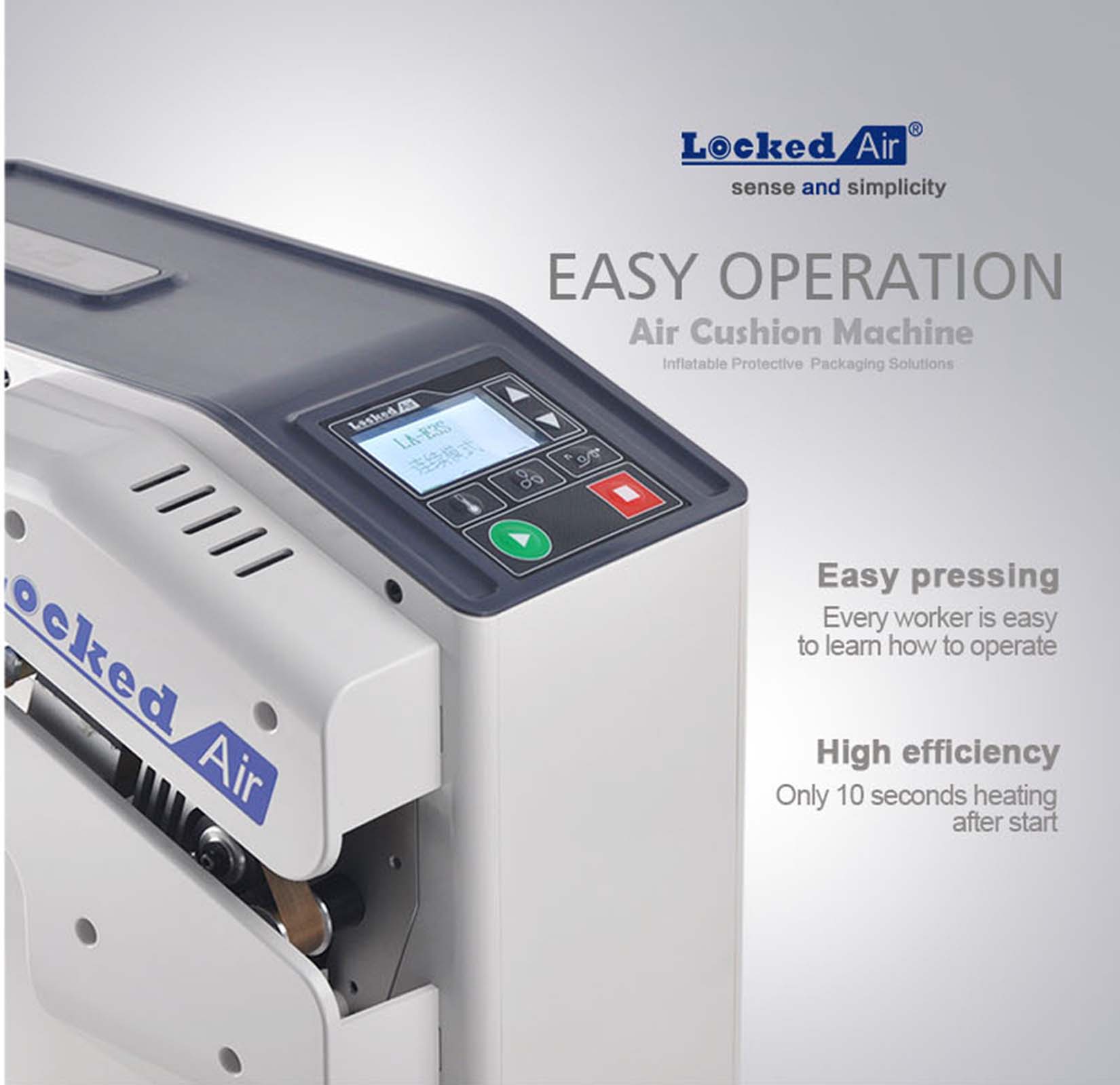

High efficiency integration system

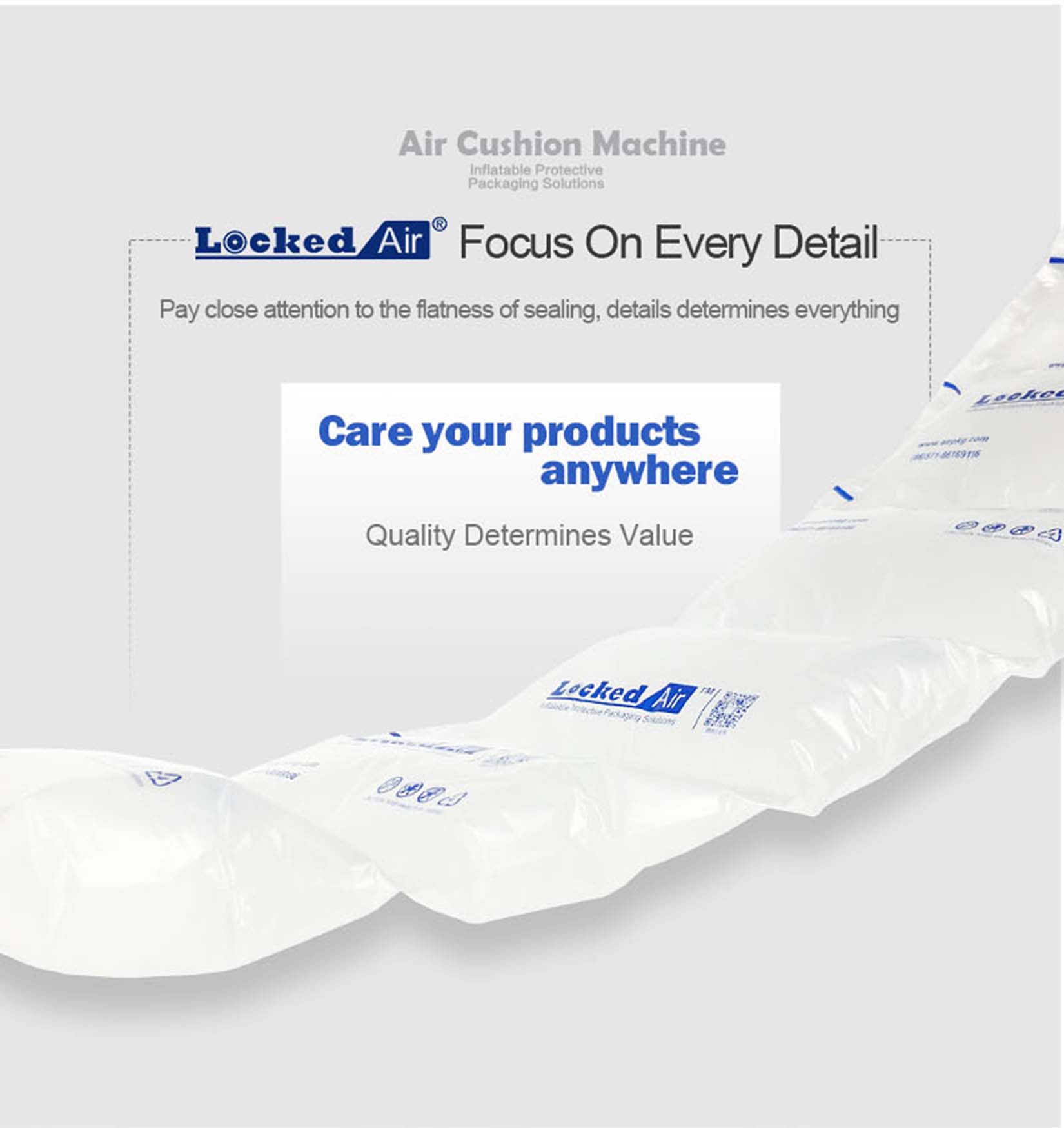

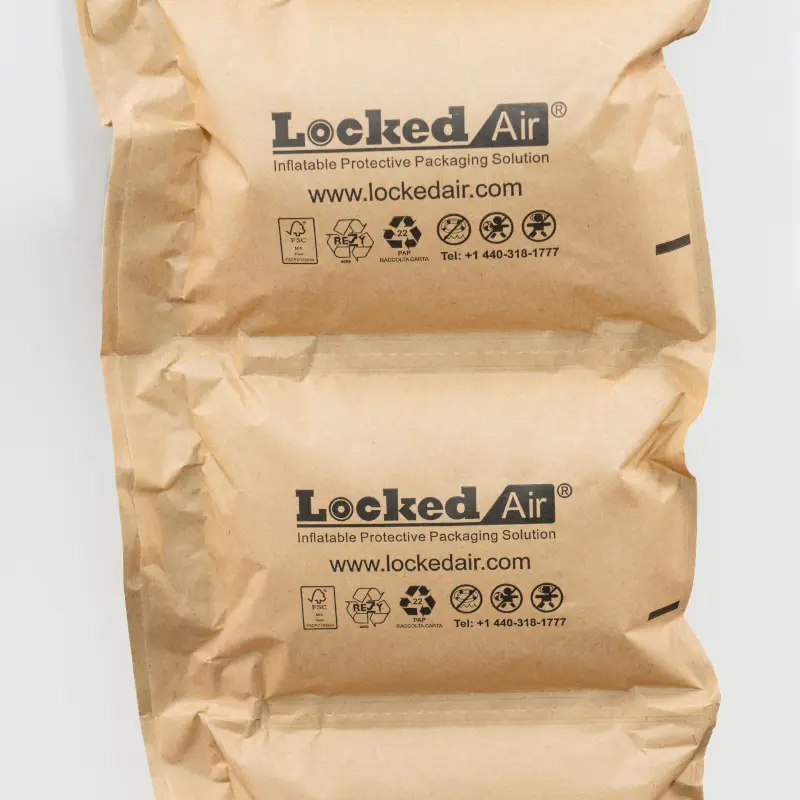

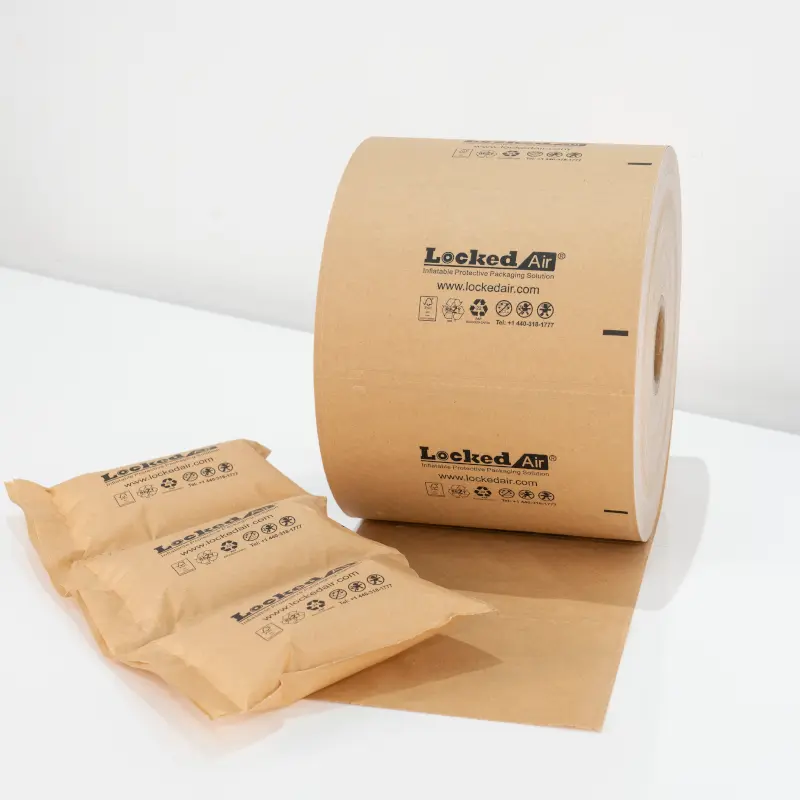

Locked Air^® air pillow film are made from 100% recyclable material, with outstanding impact resistance and puncture resistance. The air balloon feature is designed to anti prompt critical shock during the transportation, absorb the shock energy by expanding the air pillow film, but not break up. The LDPE based film is crystal clear, and with the customized logo print, that will-increase opening impression a lot. While the HDPE based film could be very thin to lower the cost.

Locked Air^® air pillow film are strong, clean, low cost and environmentally friendly.

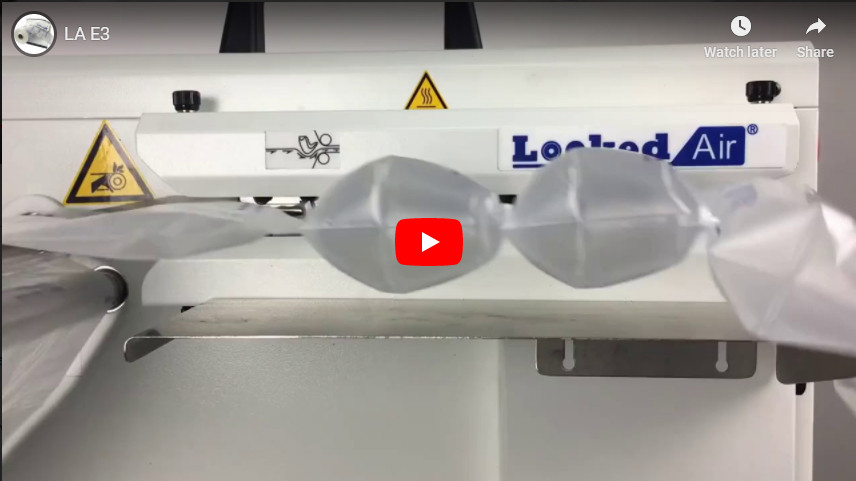

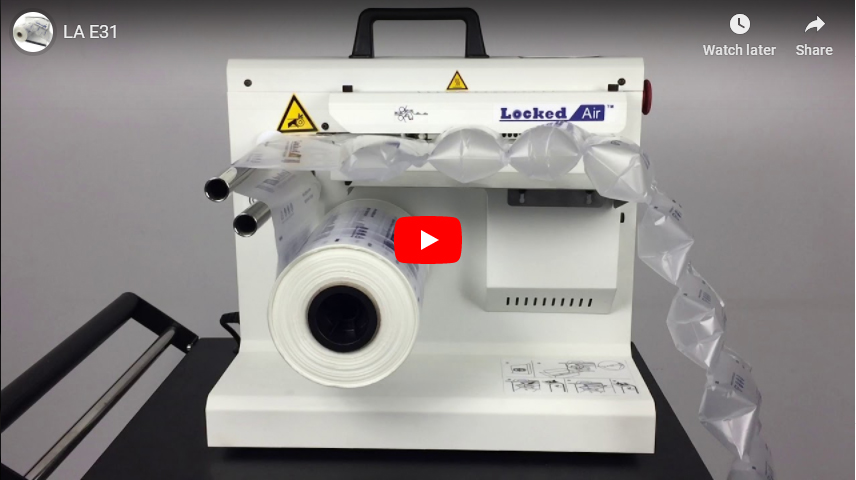

Videos Of Air Pillow Bag

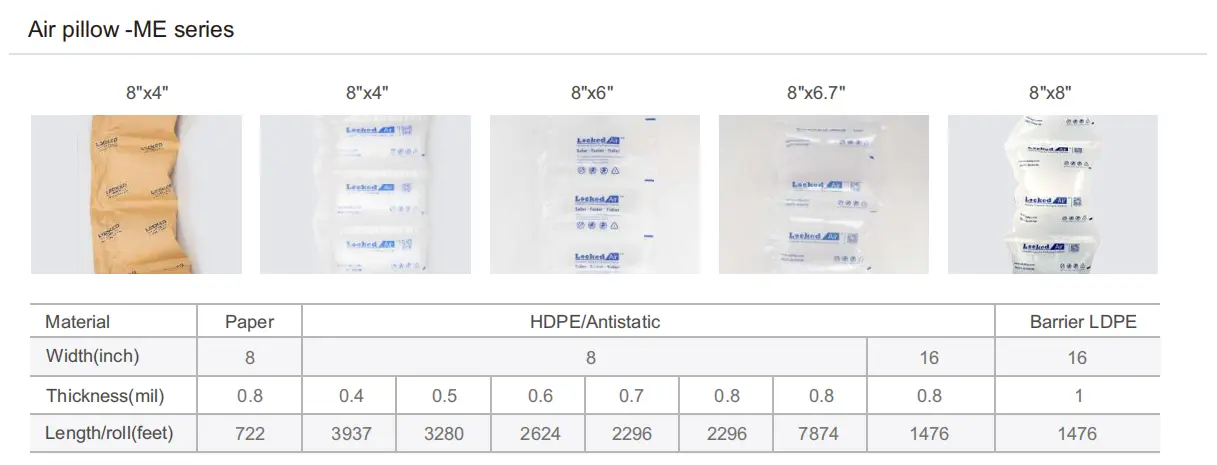

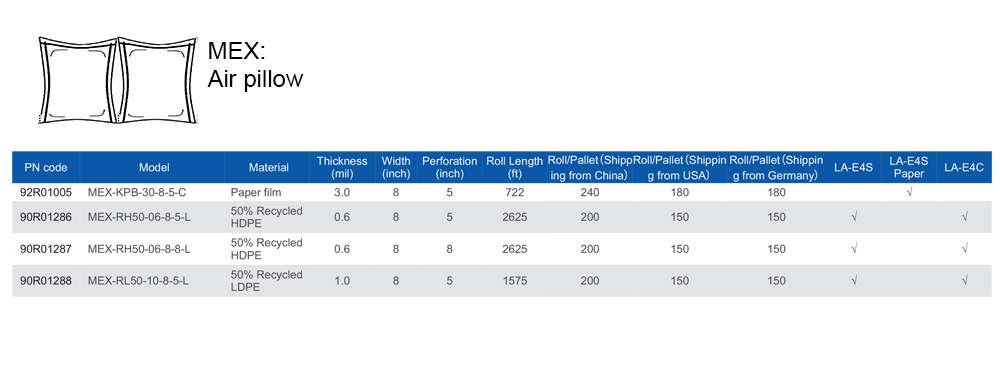

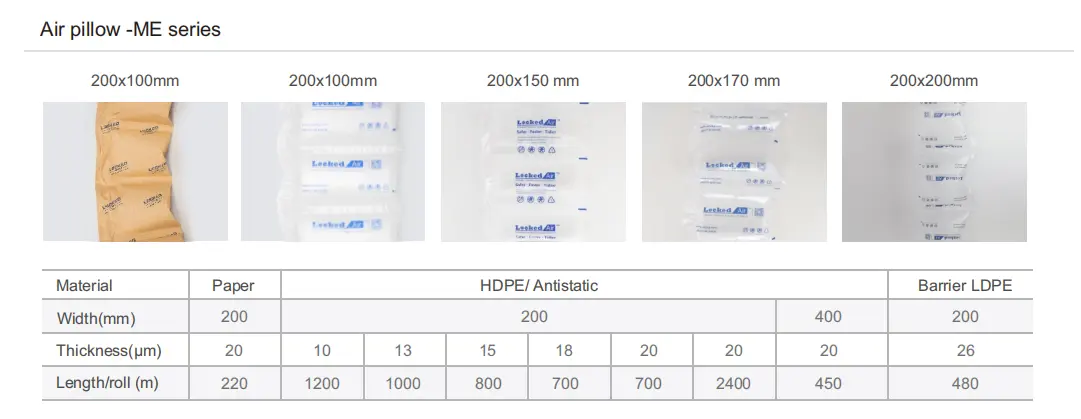

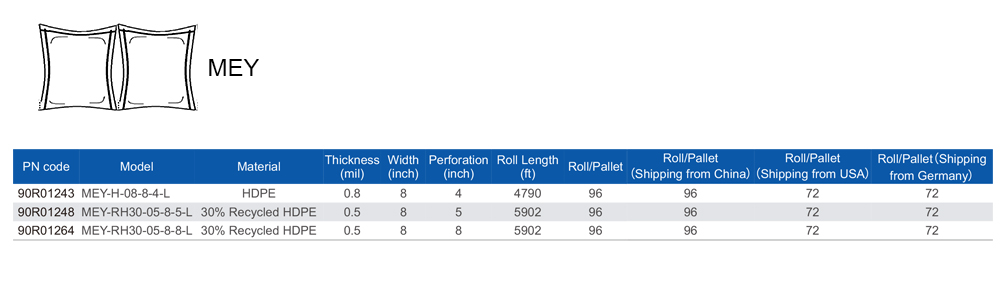

Specifications Of Air Pillow Bag

Series	Materiel M	Thickness T (um)	Width W(cm)	Perforation length L(cm)	Printing P	Film Unit	Film Length/Unit (m)	Roll or case/pallet	Pallet size (mm)
Series	Materiel M	Thickness T (um)	Width W(cm)	Perforation length L(cm)	Printing P	Film Unit	Film Length/Unit (m)	Roll or case/pallet	Pallet size (mm)
MEX	H, DH	13	20	10,12,13,15,17.5,20		Roll	1000	220	1140*1140
MEX	H, DH	15	20	10,12,13,15,17.5,20	L: Locked air C: Customized	Roll	800	220	1120*1120
MEX	H, DH	17	20	10,12,13,15,17.5,20		Roll	700	220	1120*1120
MEX	H, DH	20	20	10,12,13,15,17.5,20		Roll	700	220	1120*1120
MEX	L, DL	25	20	10,13,15,20		Roll	480	220	1120*1120
MEX	L, DL	30	20	10,13,15,20		Roll	400	220	1120*1120
MEX	L, DL	40	20	10,13,15,20		Roll	300	220	1120*1120
MEX	B	20	20	10,12,13,15,17.5,20		Roll	700	220	1120*1120
MEX	H, DH	20	40	12		Roll	450	112	1100*1100
MEC	H, DH	13	20	10,12,13,15,17.5,20		Carton	2400	48	1200*1000
MEC	H, DH	15	20	10,12,13,15,17.5,20		Carton	2400	48	1200*1000
MEC	H, DH	17	20	10,12,13,15,17.5,20		Carton	2400	40	1200*1000
MEC	H, DH	20	20	10,12,13,15,17.5,20		Carton	2400	32	1200*1000
MEC	L, DL	25	20	10,13,15,20		Carton	1920	40	1200*1000
MEC	L, DL	30	20	10,13,15,20		Carton	1600	40	1200*1000
MEC	L, DL	40	20	10,13,15,20		Carton	1200	40	1200*1000
