Name: LockedPaper-F1 Kraft Paper Void Fill Machine
Brand: Hangzhou Bing Jia Tech. Co., Ltd.

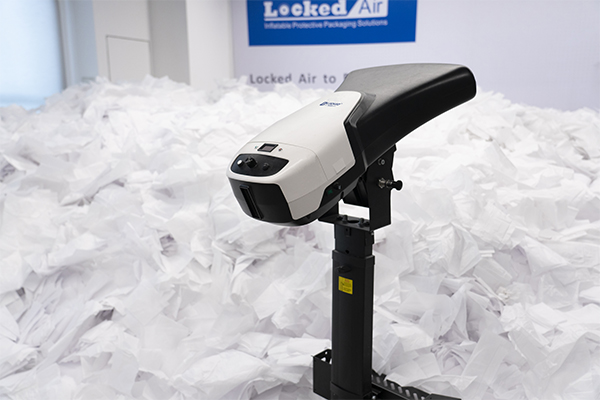

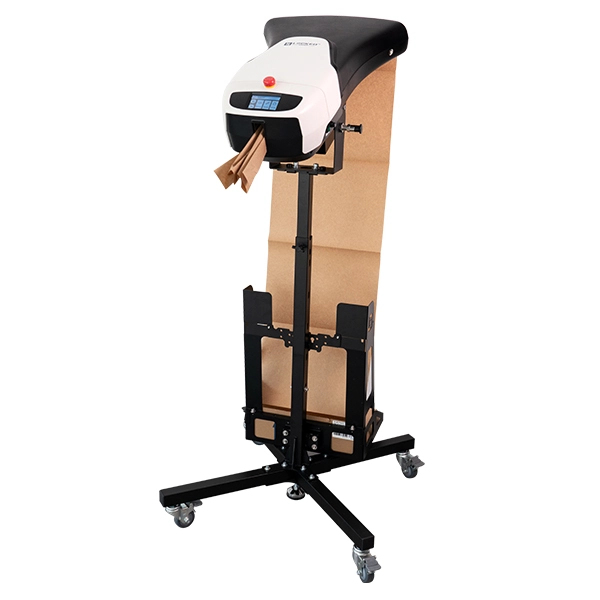

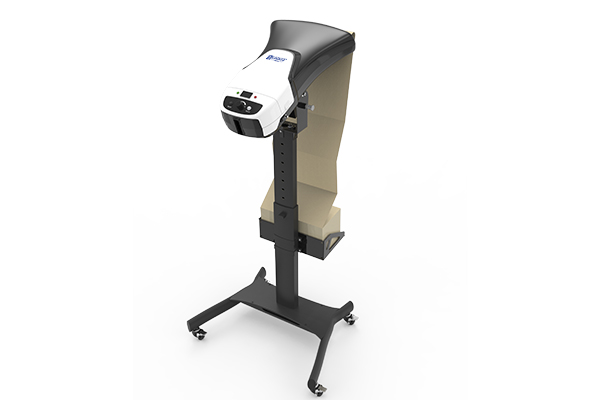

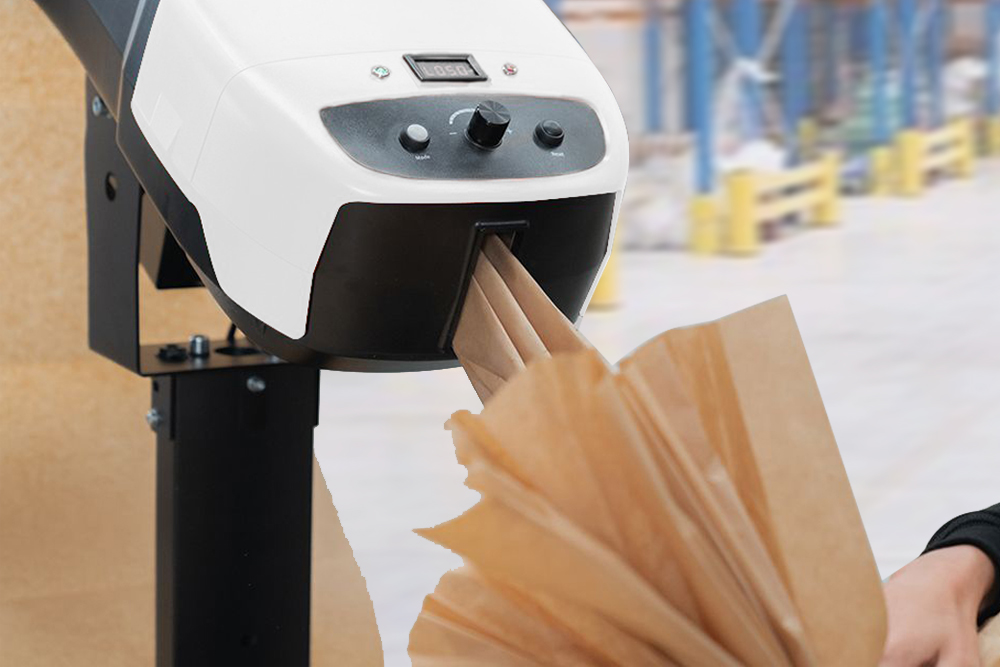

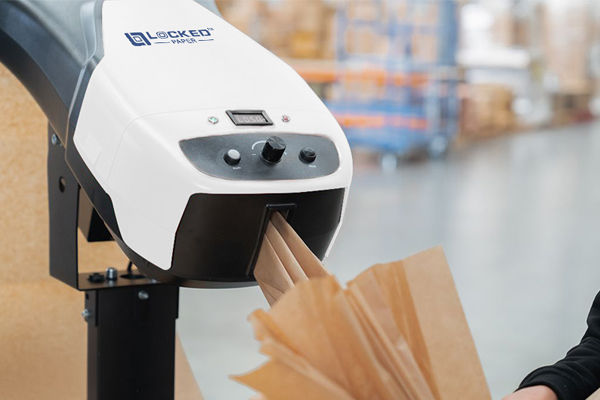

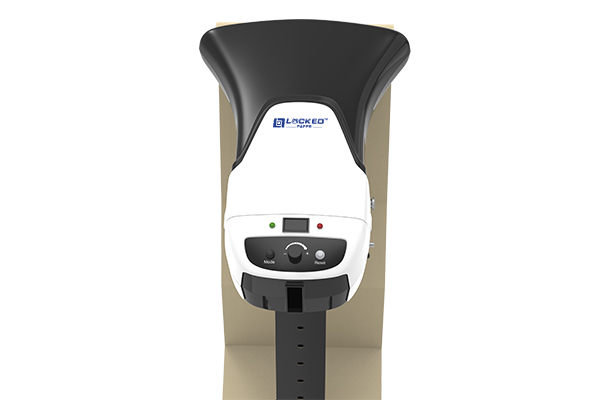

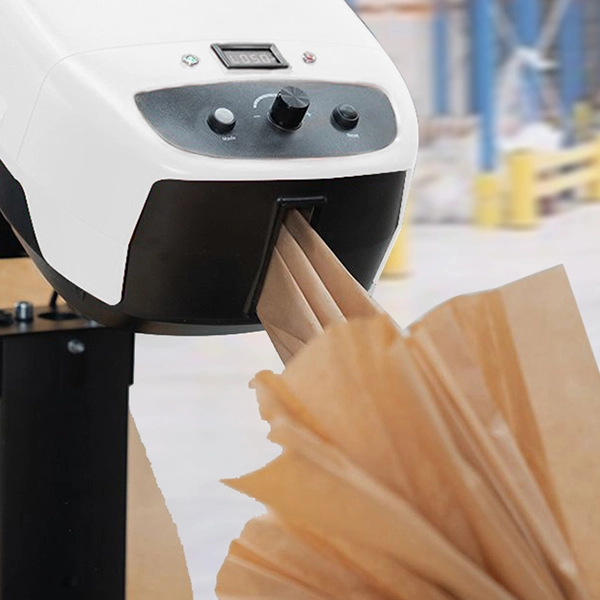

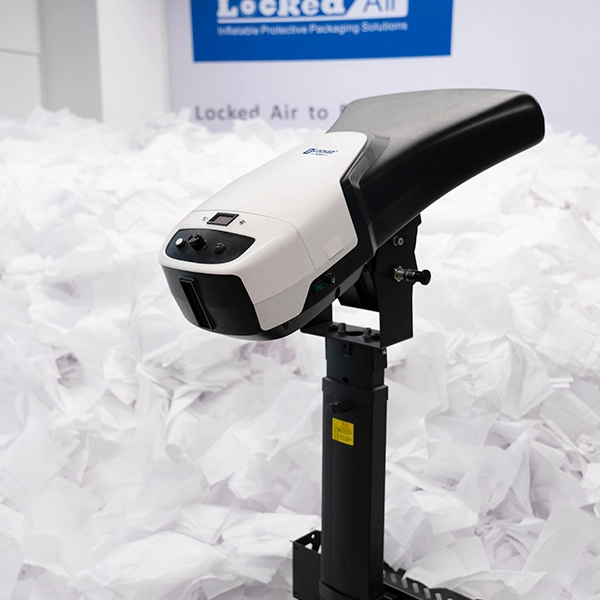

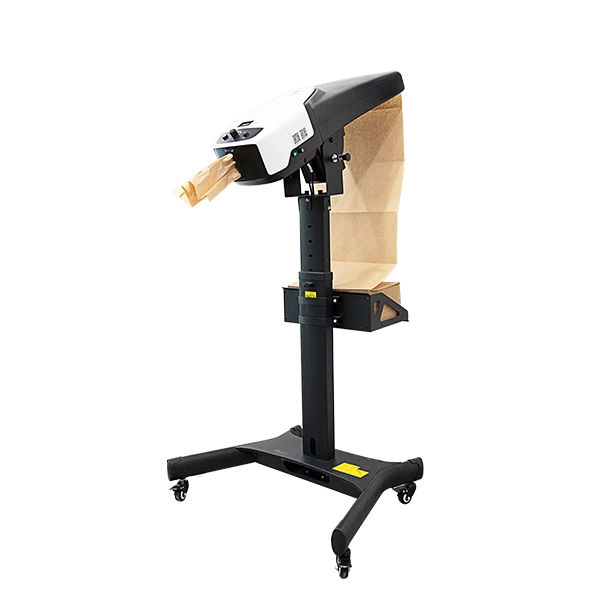

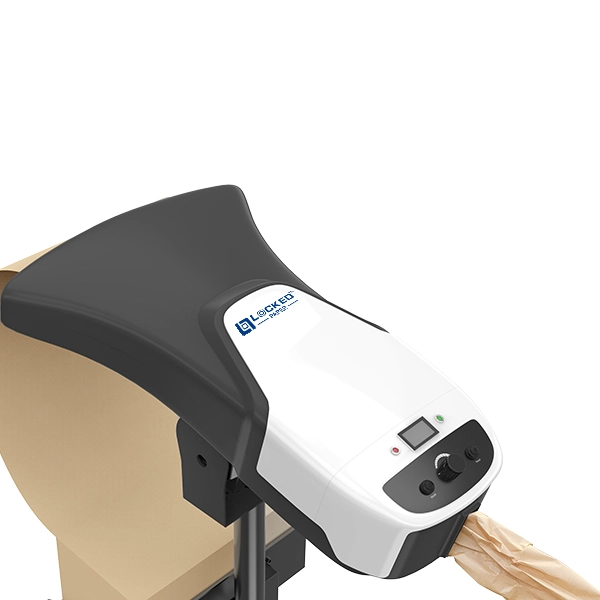

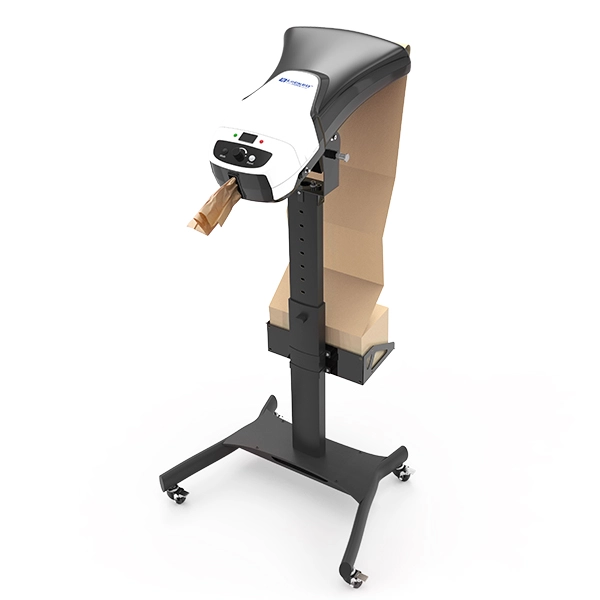

LockedPaper-F1 Kraft Paper Void Fill Machine

Introduction Of LockedPaper-F1 Kraft Paper Void Fill Machine

Paper Cushioning System for void filling and light load blocking

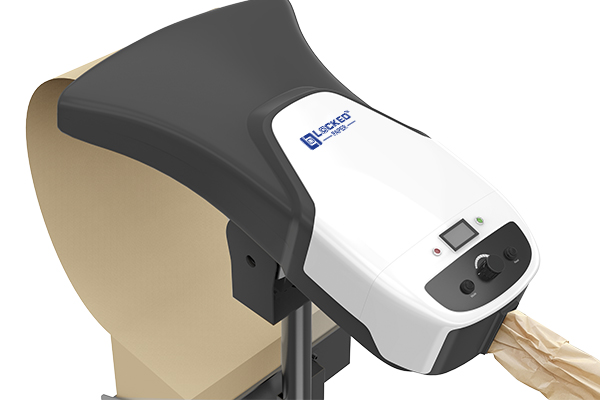

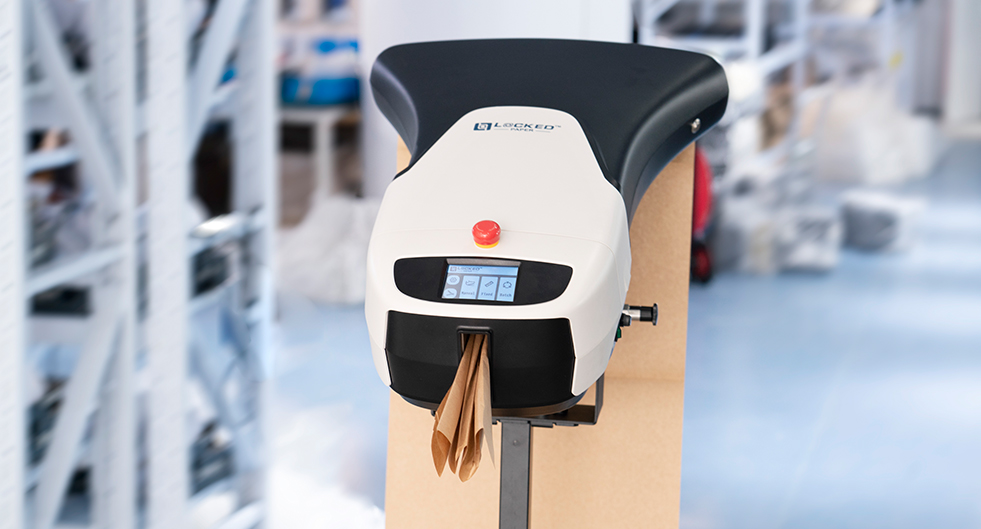

LockedPaper F1 kraft paper system is designed to fill empty voids in a box, providing environmental-friendly fill. 72m/min high speed shooter with long lifespan blade and lower than 0.5% jam rate design to cut into pieces in the length you need. It is also a decorative paper void fill system enabling the best performance with much thinner fanfold tissue paper.

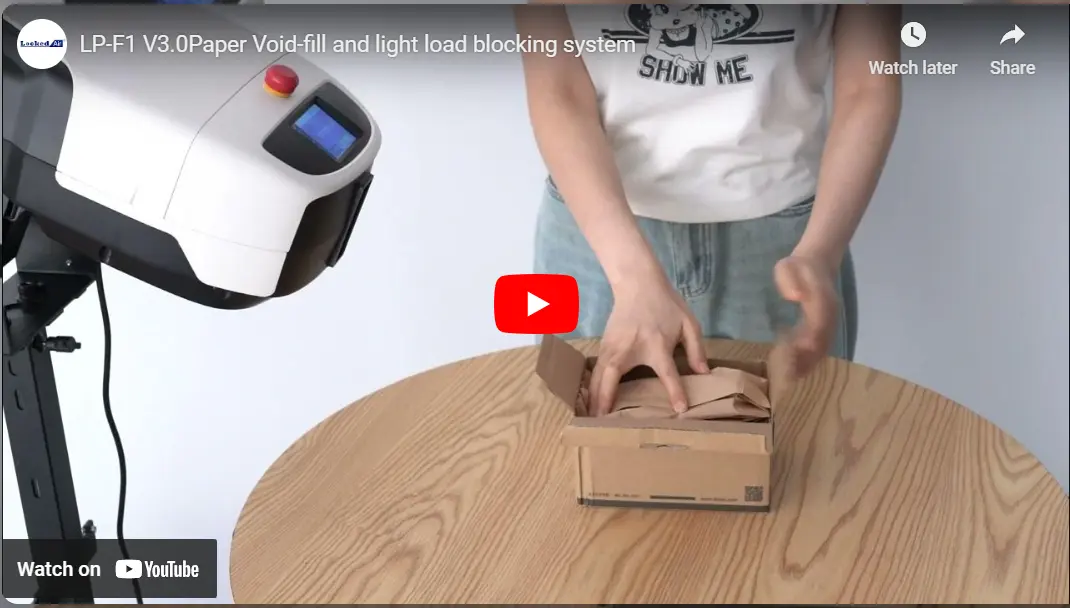

Videos Of LockedPaper-F1 Kraft Paper Void Fill Machine

Specifications Of LockedPaper-F1 Kraft Paper Void Fill Machine

Metric System

Machine Spec.		Paper Options
Feeding Speed	120m/min	Model No.	Basis Weight (gsm)	Length(m)	Width(mm)
Cutting Speed	50 times/min	MPV-50-380	50	500	380
Voltage	100-240V	MPV-70-380	70	360	380
Net Weight	17kg	MPE-50-380	50	500	380
Power	150W	MPE-70-380	70	360	380
Cushioning paper length(m)	0.25-4.5	MPR-50-380	50	500	380
Machine size (mm)	684(L)452(W)352(H)	MPR-70-380	70	360	380

Imperial System

Machine Spec.		Paper Options
Feeding Speed	394feet/min	Model No.	Basis Weight	Length(feet)	Width(inch)
Cutting Speed	50 times/min	MPV-50-380	30#	1640	15
Voltage	100-240V	MPV-70-380	41#	1180	15
Net Weight	37.5LBS	MPE-50-380	30#	1640	15
Power	150W	MPE-70-380	41#	1180	15
Cushioning paper length(inch)	9.9~177	MPR-50-380	30#	1640	15
Machine size (inch)	27(L)18(W)14(H)	MPR-70-380	41#	1180	15

Click to see the detailed Specifications

Details Of LockedPaper-F1 Kraft Paper Void Fill Machine

Features:

Long Life Span

*Core parts designed for 10 years

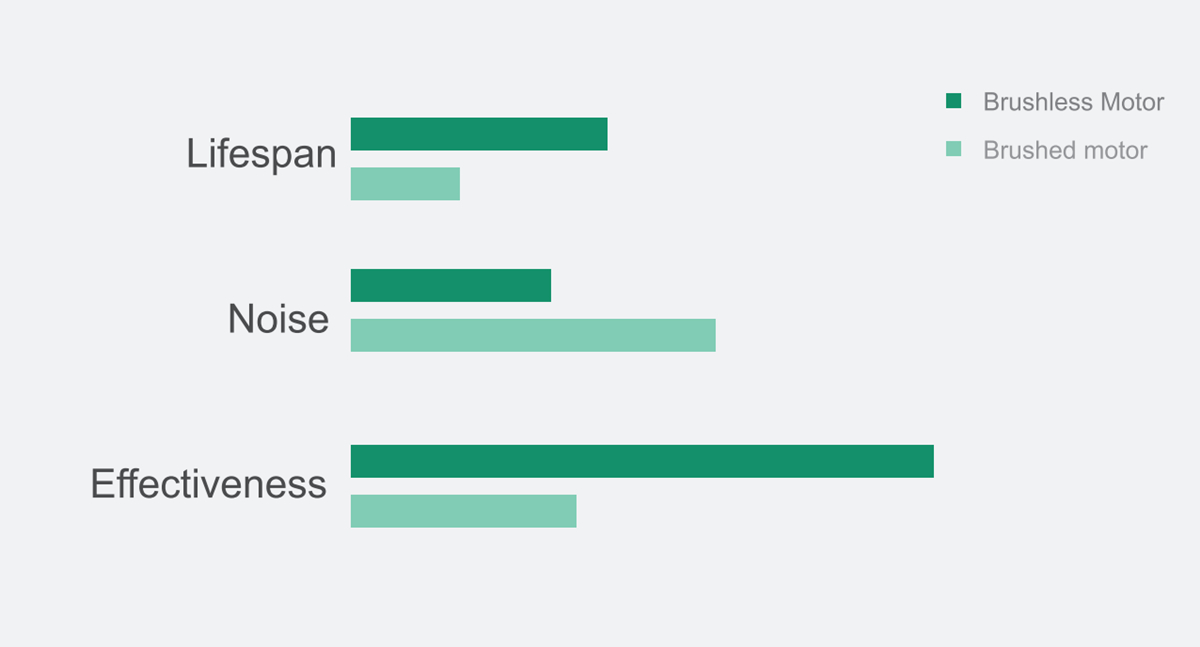

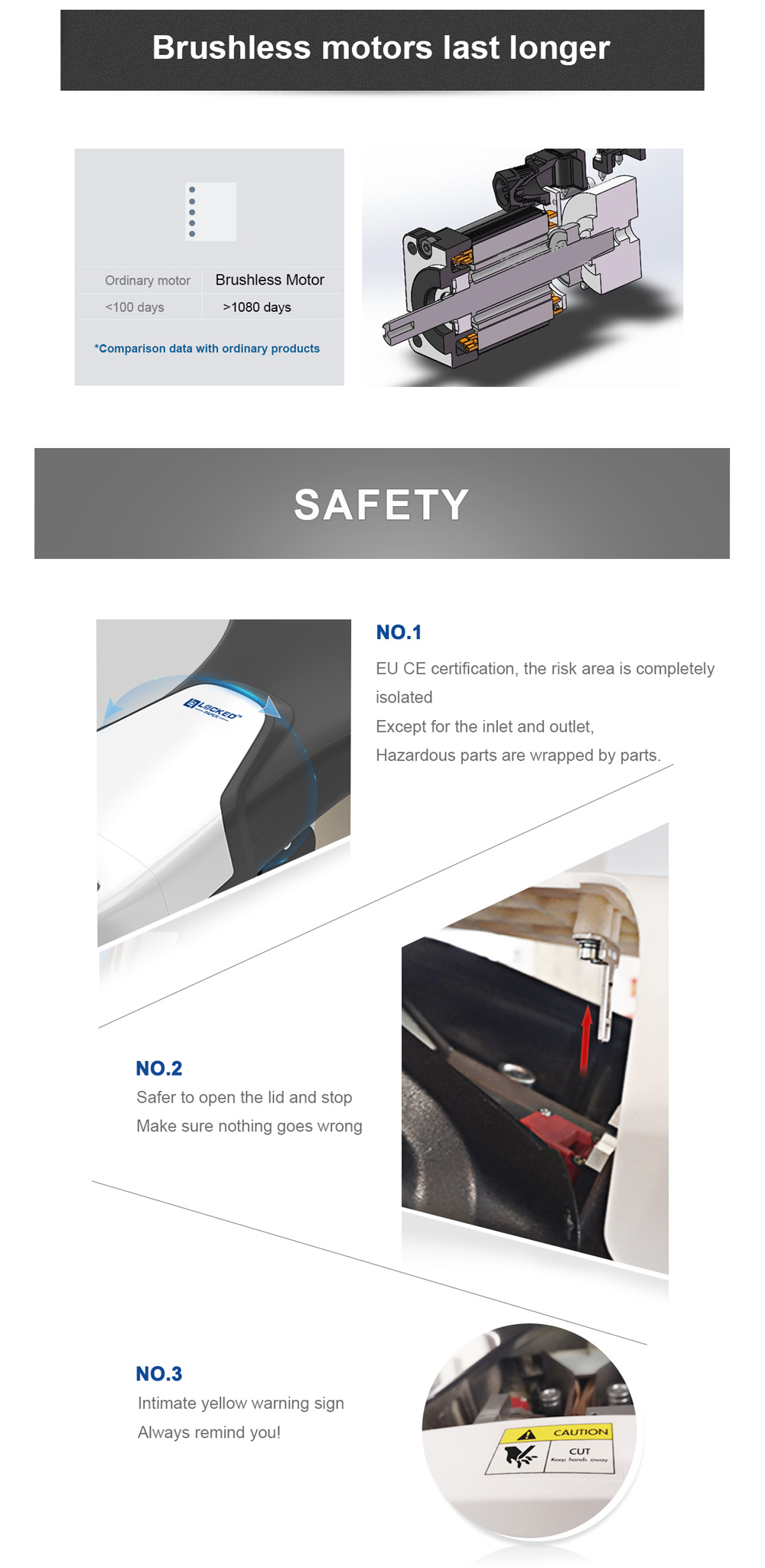

*The first to use brushless motors in similar machines, up to 10 times life span to brush motor

Reliable

*Optimized blade design to cut 20gsm to 80gsm paper

*Cut failure<0.5% , jam rate less than 0.01%,blade past 1m cut lest

Intelligent

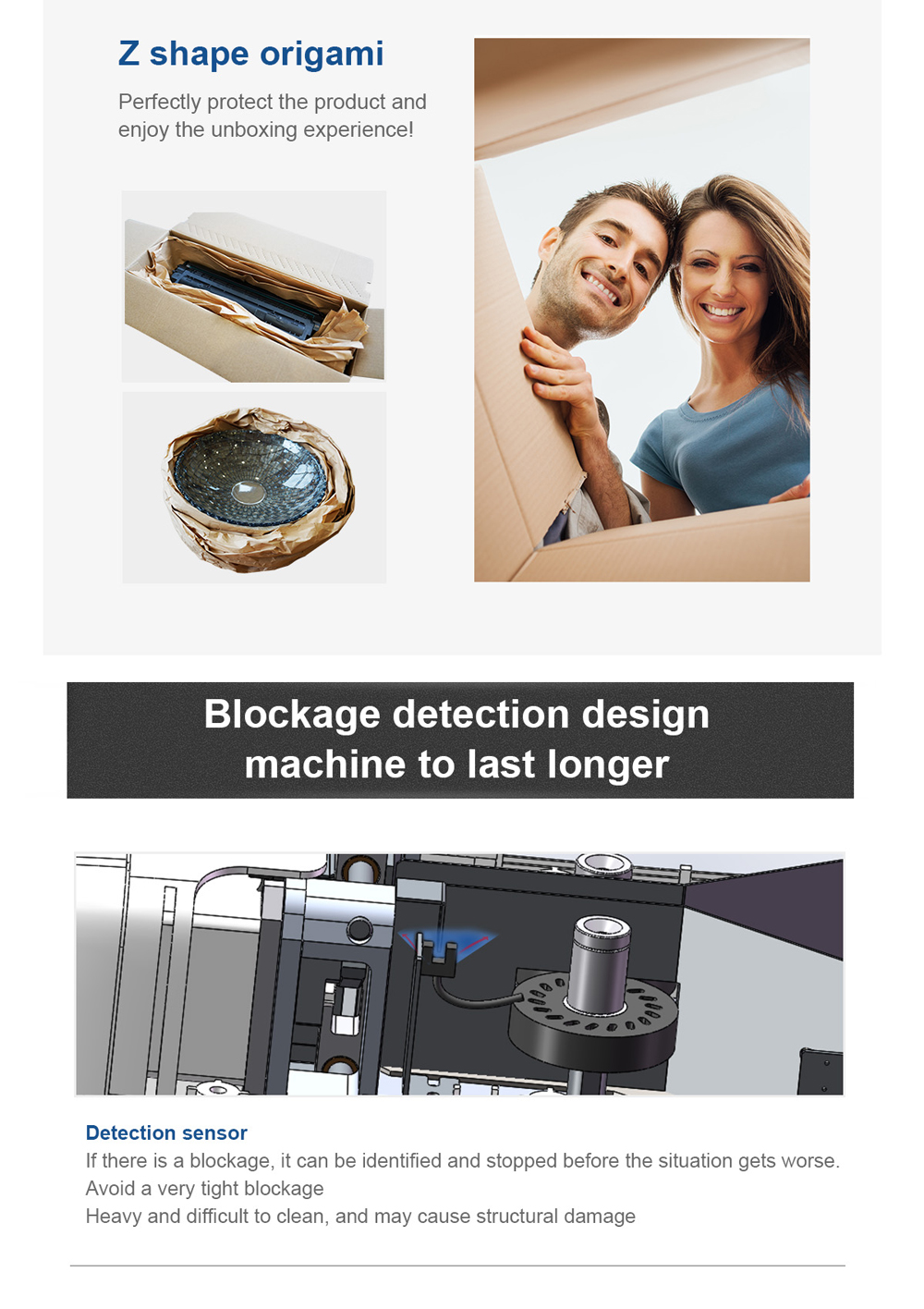

*2pcs paper jam sensors, stop machine before it goes worse, easy to clear jam with automatic jam recovery function

*No paper alarm to stop machine automatically and alarm for reload

*Paper consumption traceable, help to monitor usage and also support predictive maintenance.

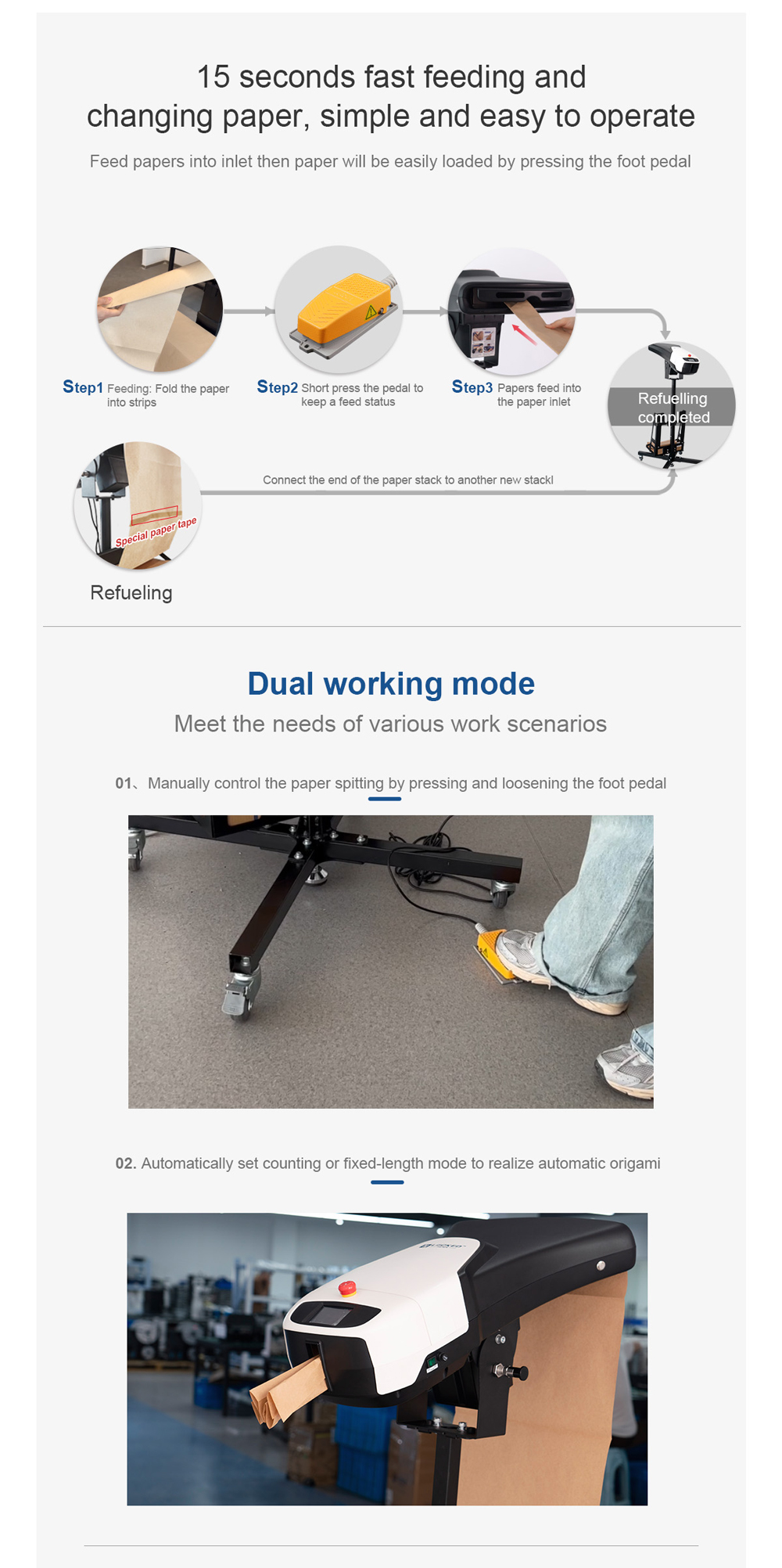

Operation Mode：

Loading mode:
Slower drive for easier material loading.
Pedal Mode:
Press the feet pedal to outfeed and release to cut.
Auto Mode:
Machine will out feed one piece with preset length once the former one is taken away.
Counter Mode:
Machine will out feed preset length pieces continously to a pre-set number into 3 hopper.

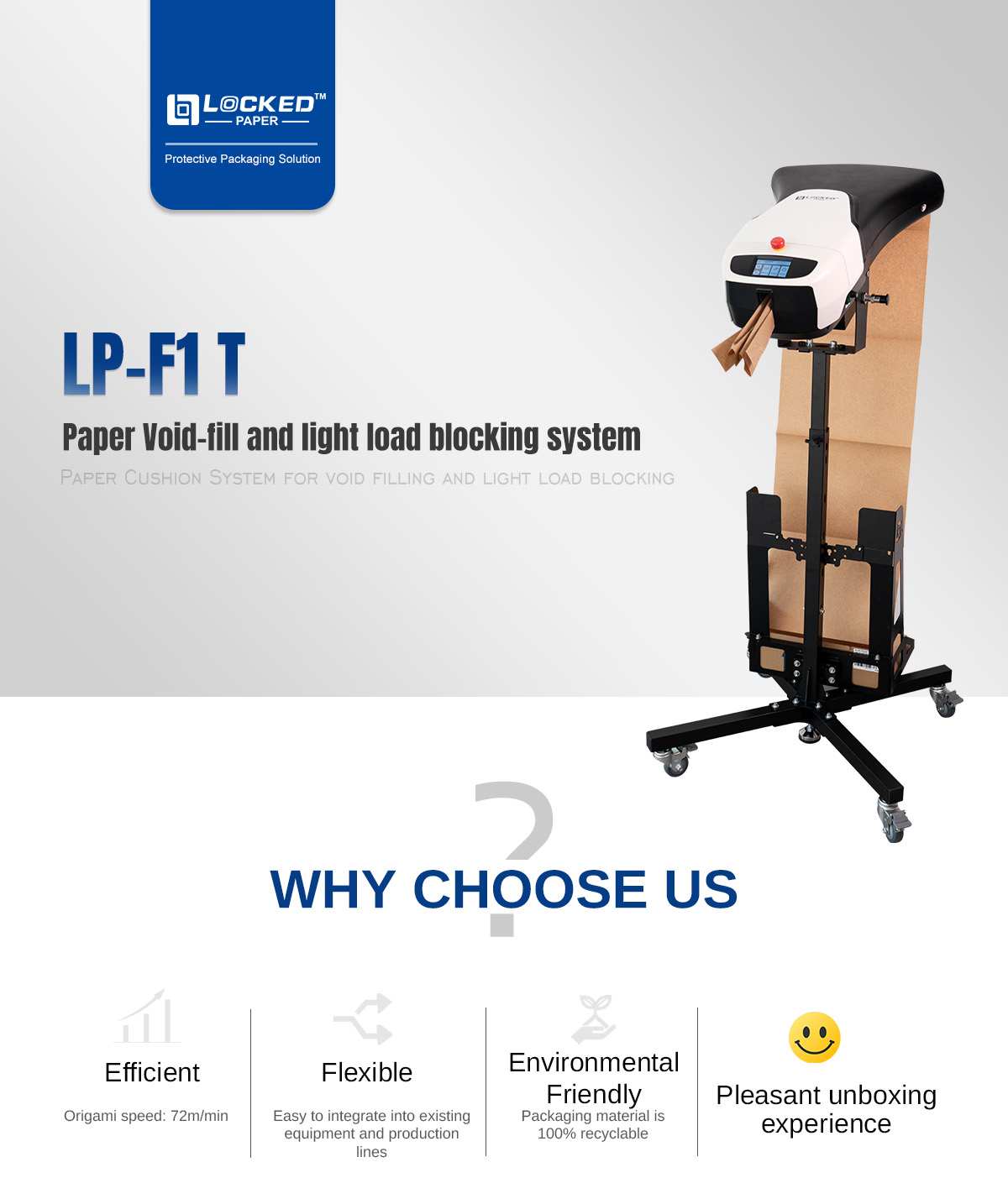

LockedPaper-F1

Paper Cushion System for void filling and light load blocking

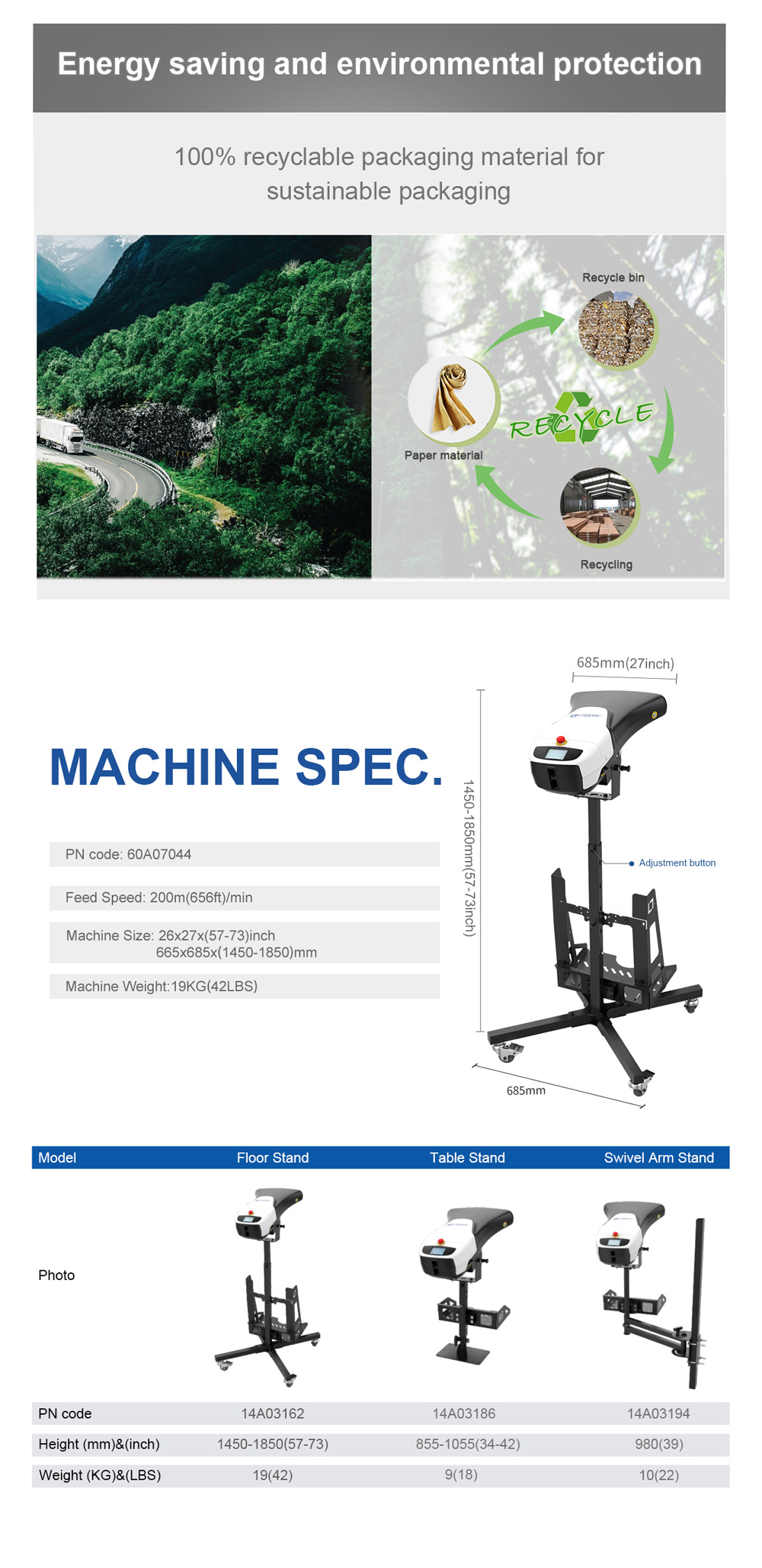

Machine Parameter

Voltage (v)
Power(w)
Weight (kg)
Feeding speed
Cutting speed
Cushioing paper length
Machine parameters(mm)
Packing size(mm)

100-240
150
16.6
50m/min
72times/min
0.25-4.5m
684(L)*452(W)*324(H)
745(L)*550(W)*380(H)

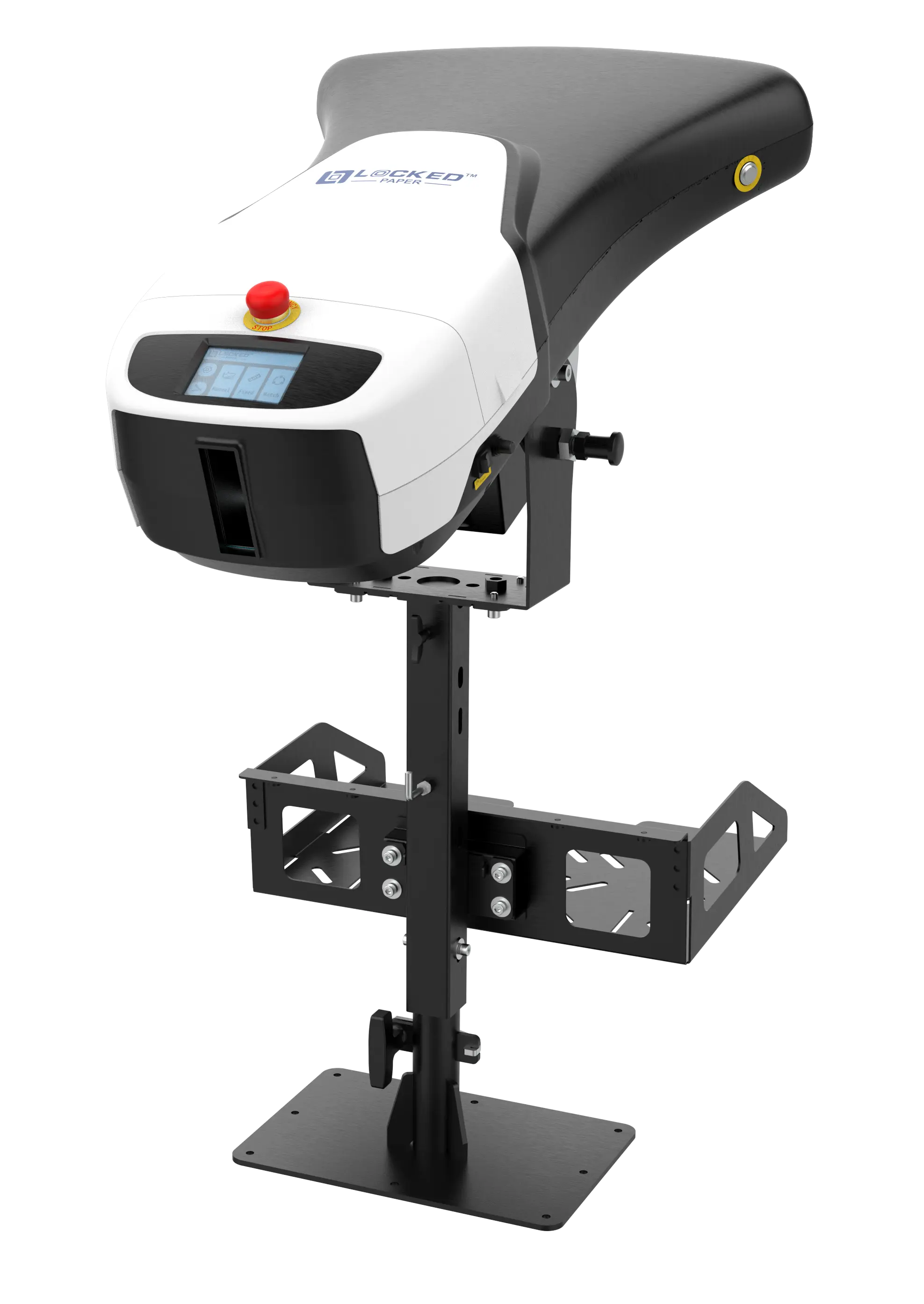

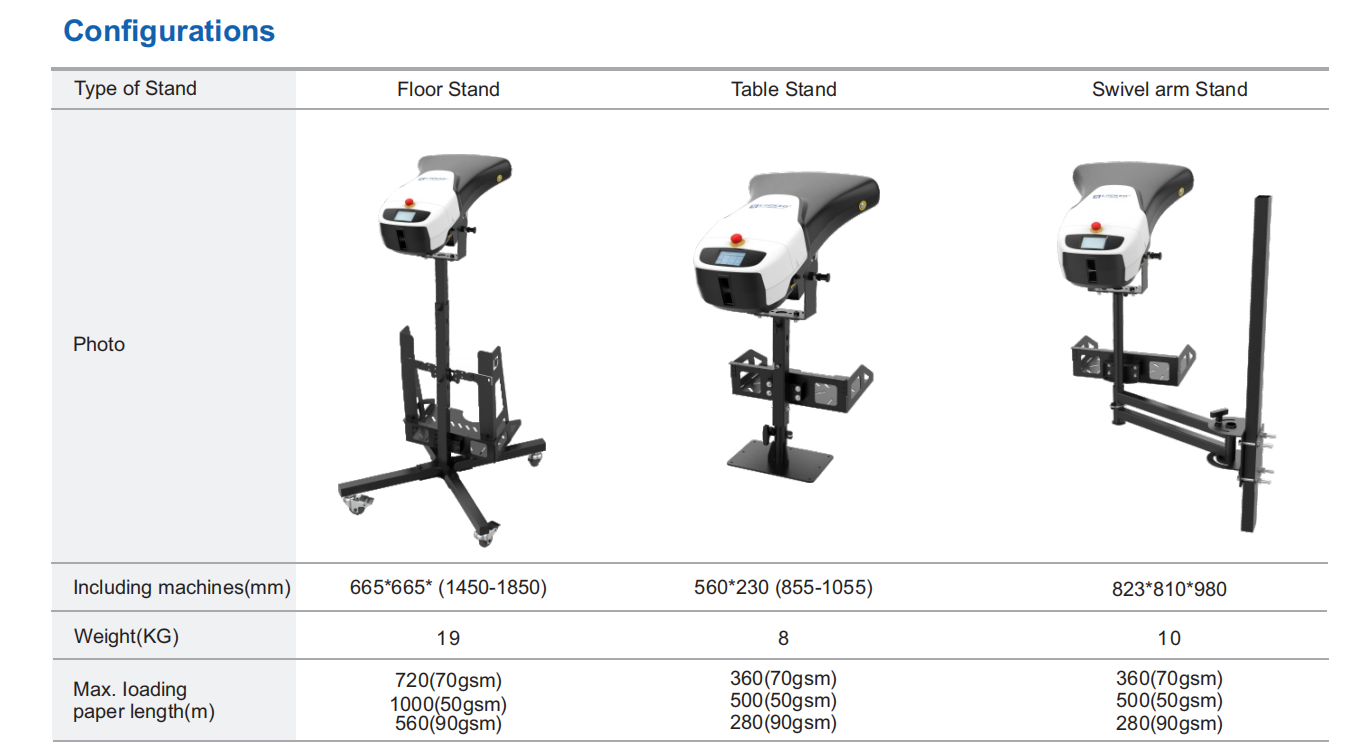

Frame Parameter

Weight(kg)
Size(mm)
Packing size(mm)

22.5
702*750*(1320-1570)
1300*450*165


    		                • Easy:

    		            Press and run, very easy to operate

    		                • Fast:

    		            High speed shooter to 72m/min

    		                • Safe:

    		            CE certified, hazard parts highly isolated

    		                • Reliable:

    		            2 times longer lifespan*, cut failure rate low to 0.01%.

    		               • Intelligent:

    		            No paper alarm, Jam alarm, auto jam recovery,

    		                • Ergonomic：

    		           Height adjustable, <65dB during running.

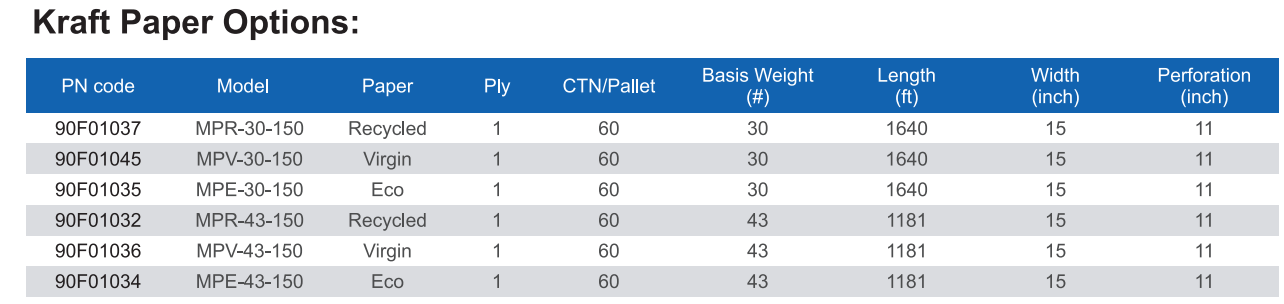

Paper Options

P/N	Basis Weight (gsm)	Length(m)	Width(mm)
P70	70	360	380
P50	50	500	380
	Stack Weight 9.6kg

*: comparing to common machine with brush motor
