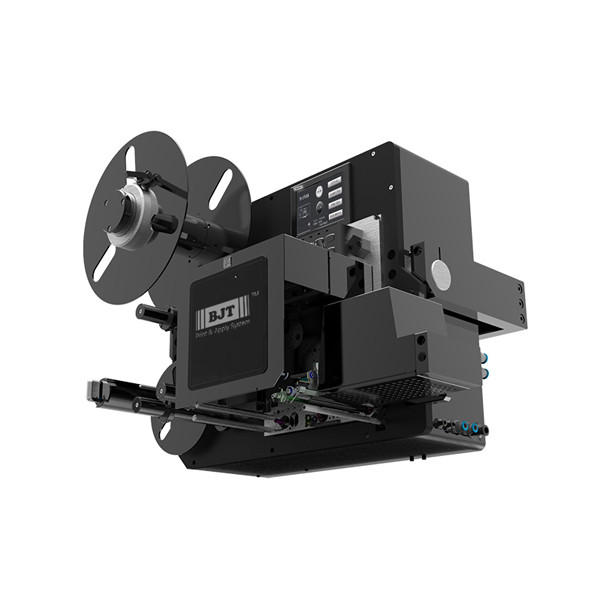

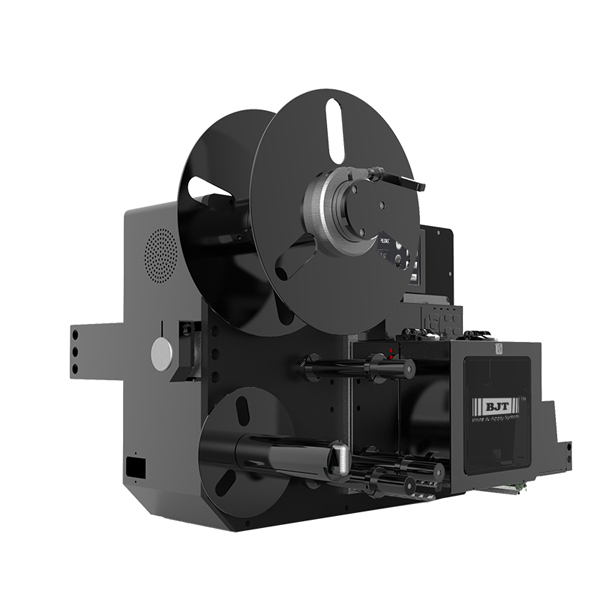

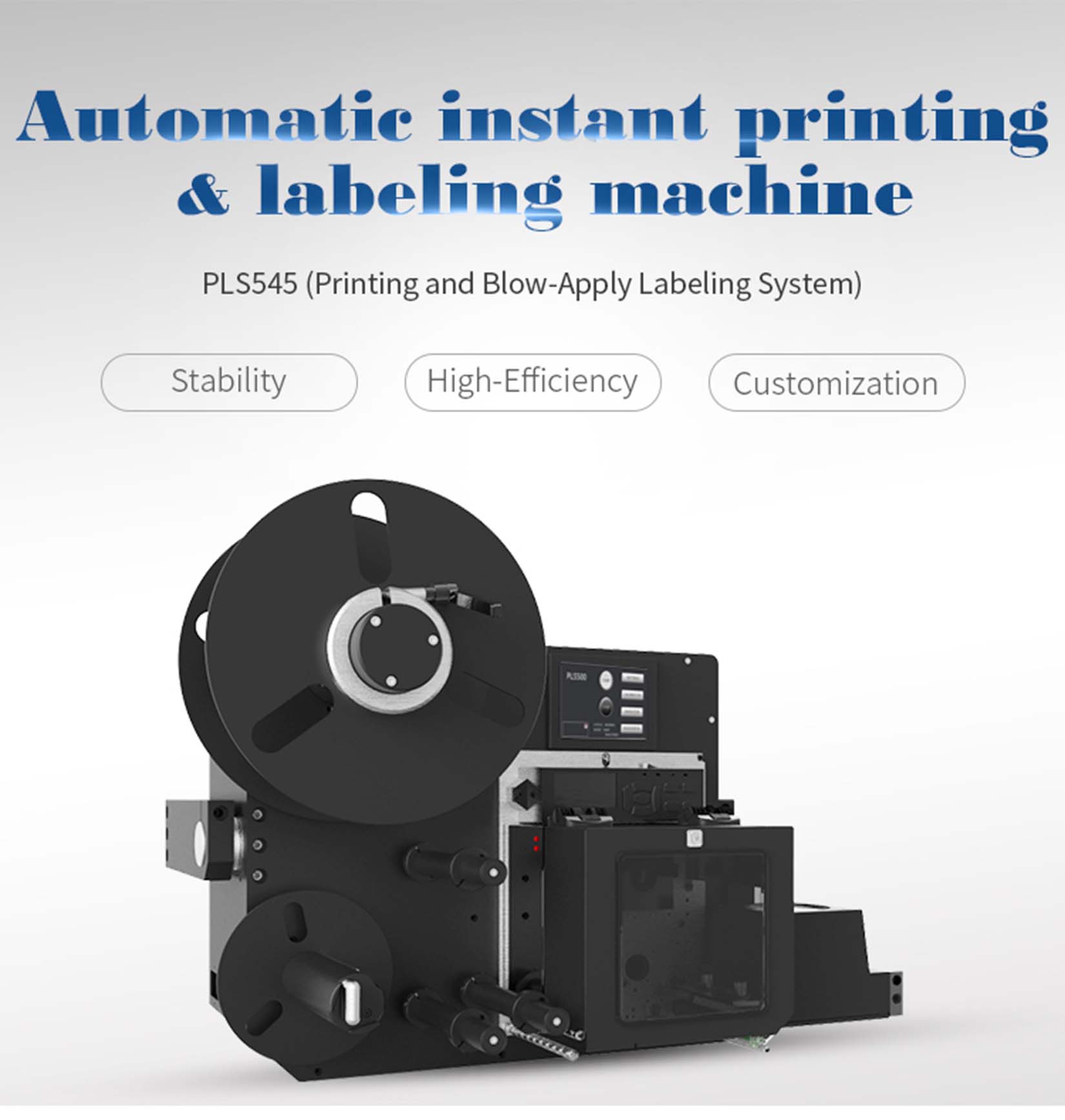

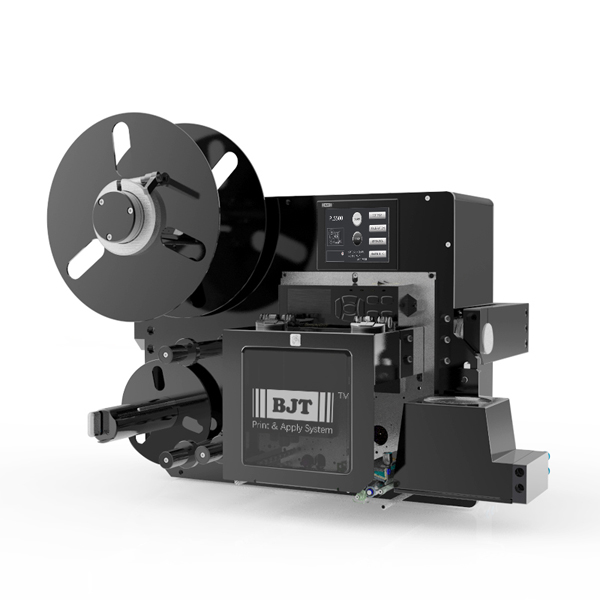

Print and Blow-Apply Labeling System PLS545

Print and Blow-Apply Labeling System PLS545

Introduction Of Print and Blow-Apply Labeling System PLS545

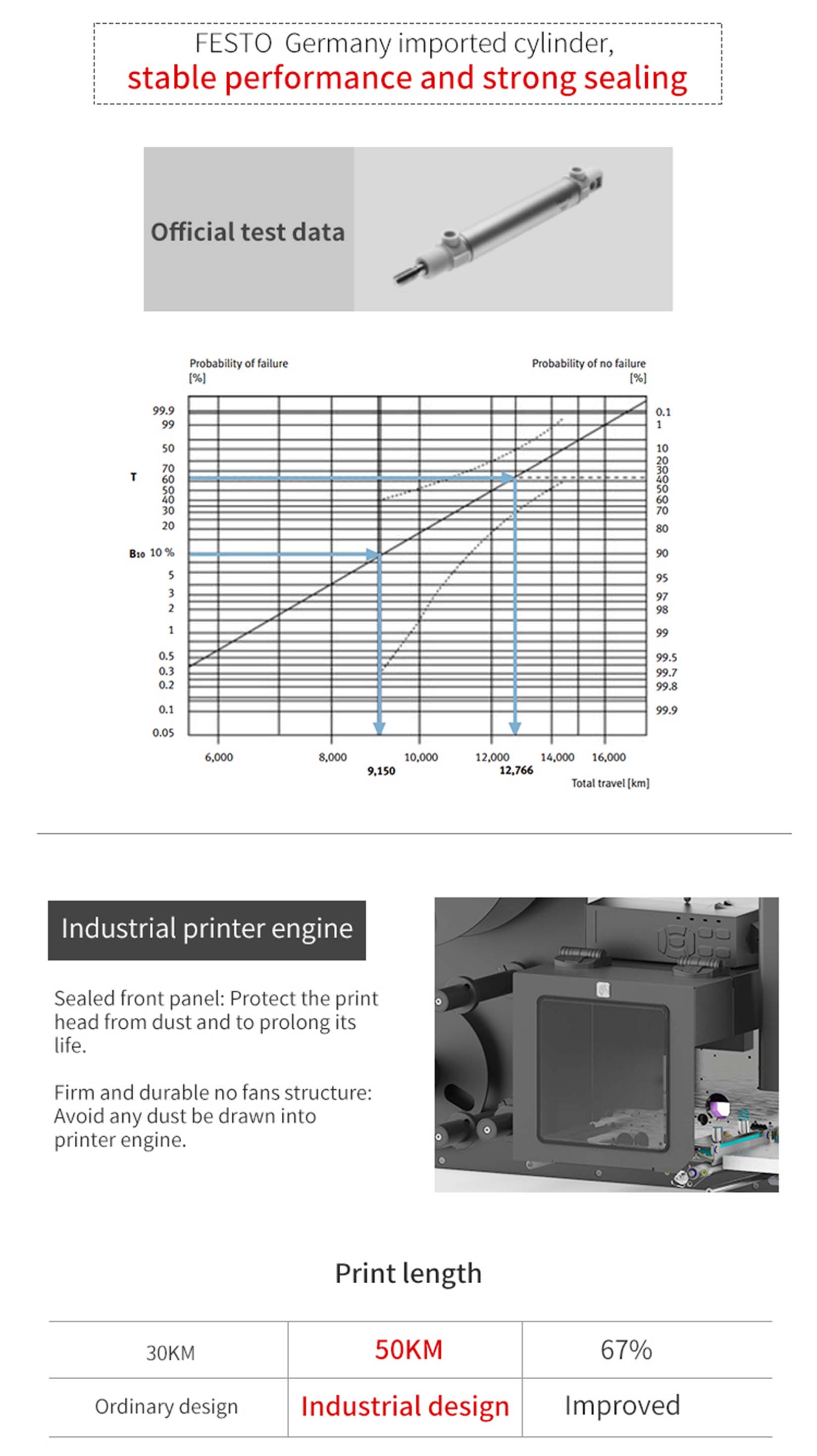

PLS545 can print the realtime label instantly and blow-apply label on to box or surface of product. As no direct contact, it works prefect with fragile product or non-flat product. Using Zebra ZE500 printing engine and Festo pneumatic part this system which works reliably to improve working efficiency and reduce labor cost.

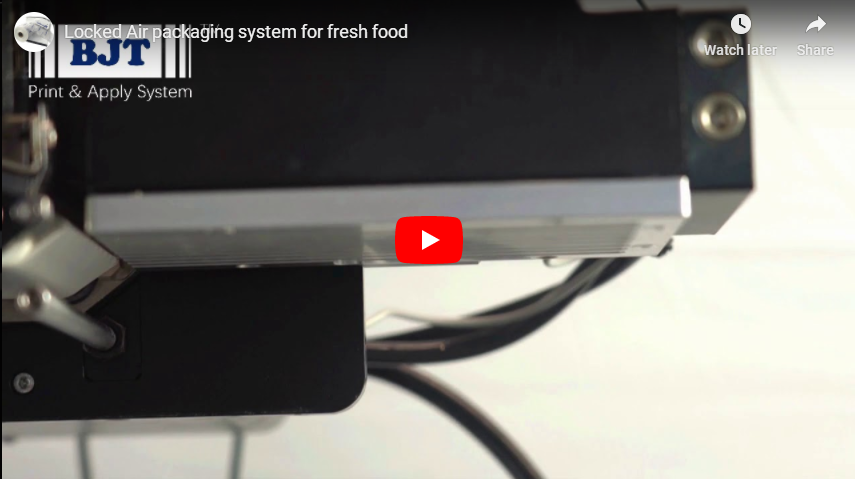

Videos Of Print and Blow-Apply Labeling System PLS545

Specifications Of Print and Blow-Apply Labeling System PLS545

Model

PLS545(Blow Labeling System)

Labeling Accuracy

±5mm

Machine Size

740*562*386

Weight

50kg

Power

500W

Voltage

AC220V

Air Consumption

110L/min @ 6bar

Material of Labe

Coated paper/Silver paper/Express bill(thermal paper)

Size of Label

Width 25-107mm,Length 15-150mm

Type of Labe

Thermo sensitive/Thermal transfer

Feeding Mode

Label, fold label

Diameter of Label

Max 254mm(10inch

Diameter of Base Label

Max 152mm(6 inch)

Roll Paper Diameter

100mm

Peel-away Spee

Max 305mm/s(depend on the type of printer engine and label)

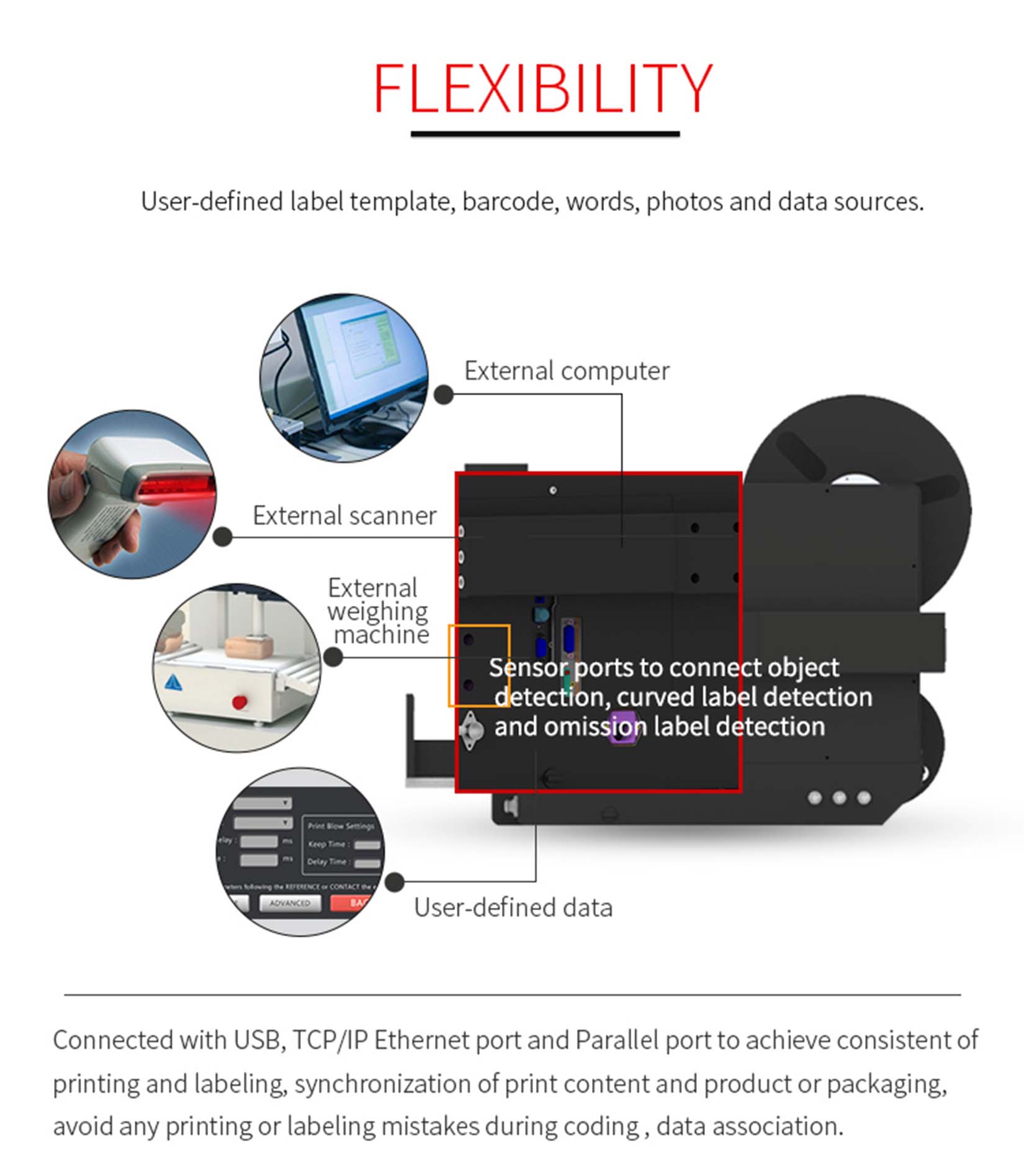

Printer Port

USB, Ethernet port, Parallel port

Labeling Trigger Mod

Labeling/Printing( Changeable)

System Input Port

Labeling/Printing

System Output Port

Print task ready、Finished labeling、Error alarm


Click to see the detailed Specifications

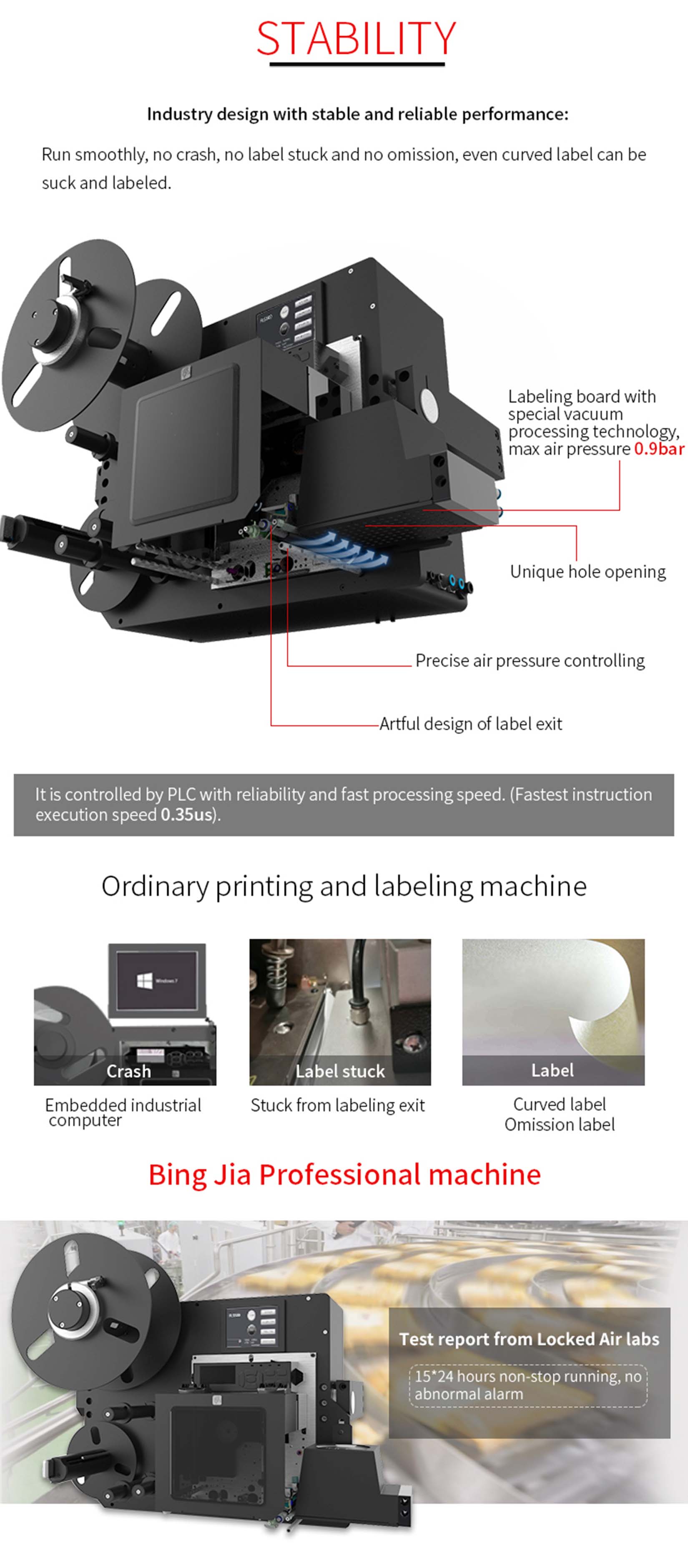

Details Of Print and Blow-Apply Labeling System PLS545
