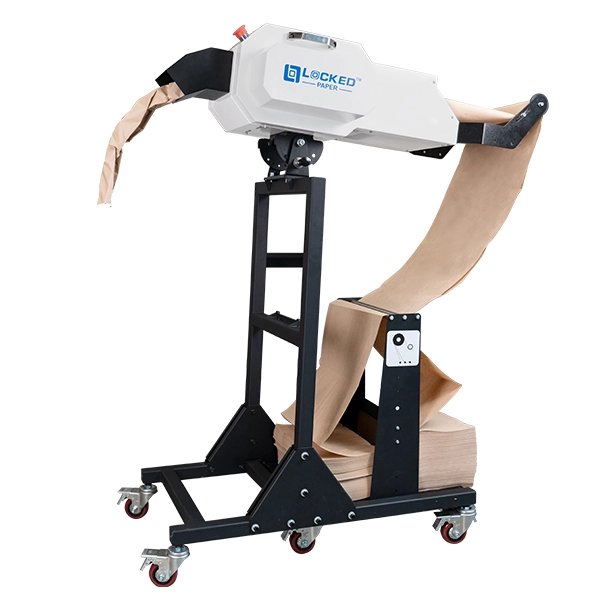

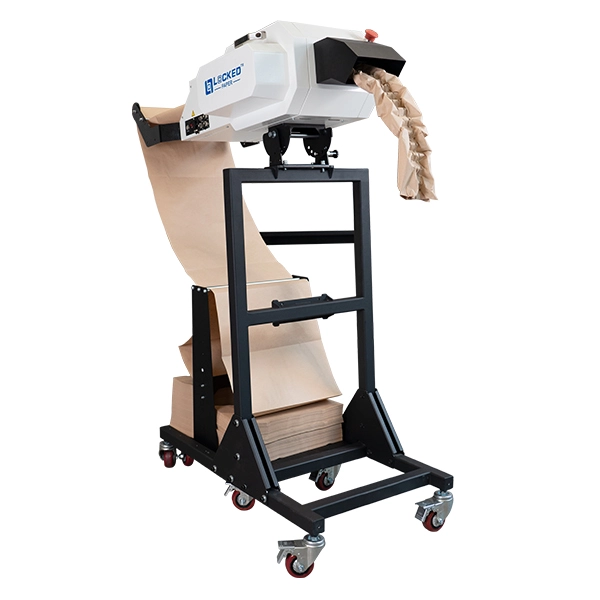

LockedPaper-C1 Paper Cushioning Machine

Introduction Of LockedPaper-C1 Paper Cushioning Machine

Paper Cushion System for fragile and heavy load cushioning.

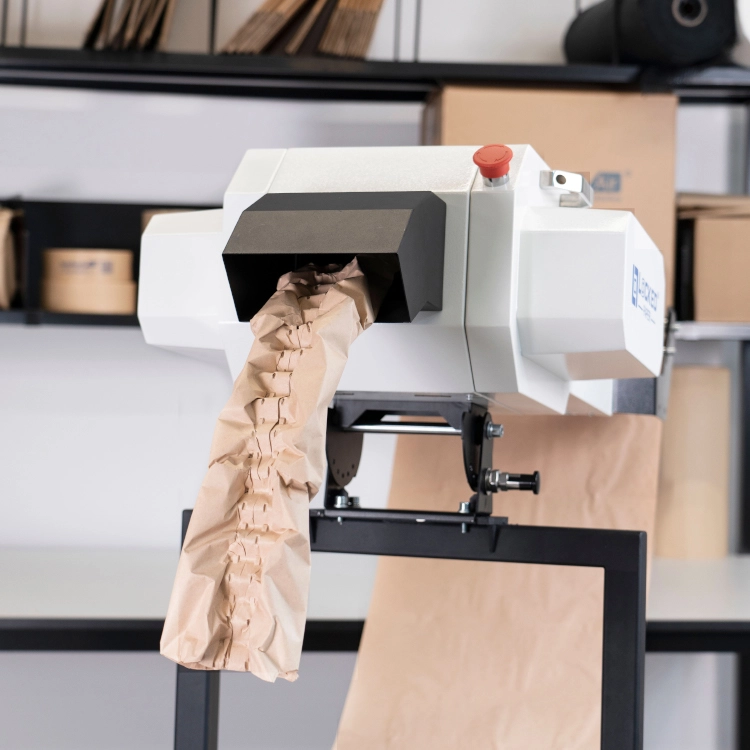

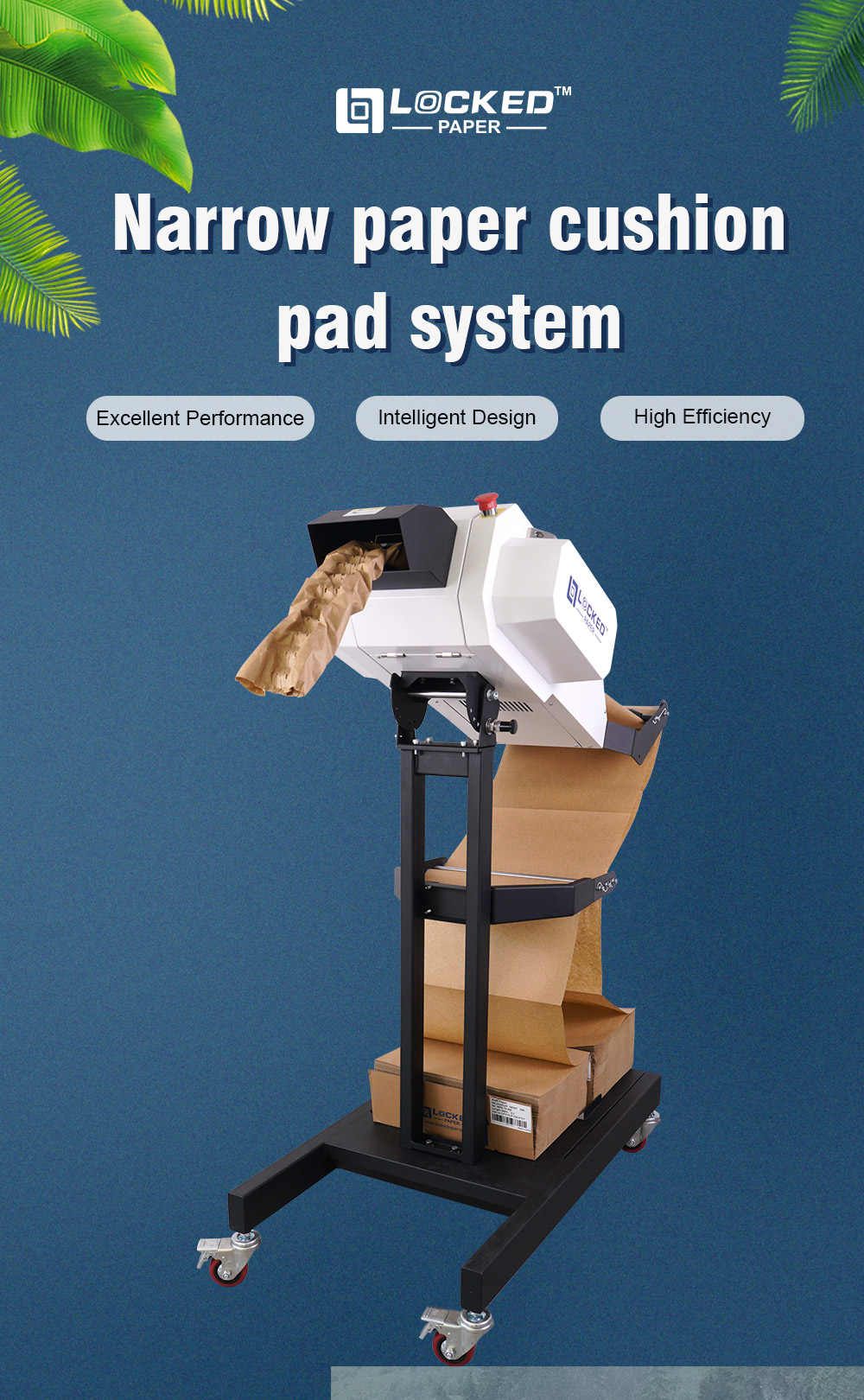

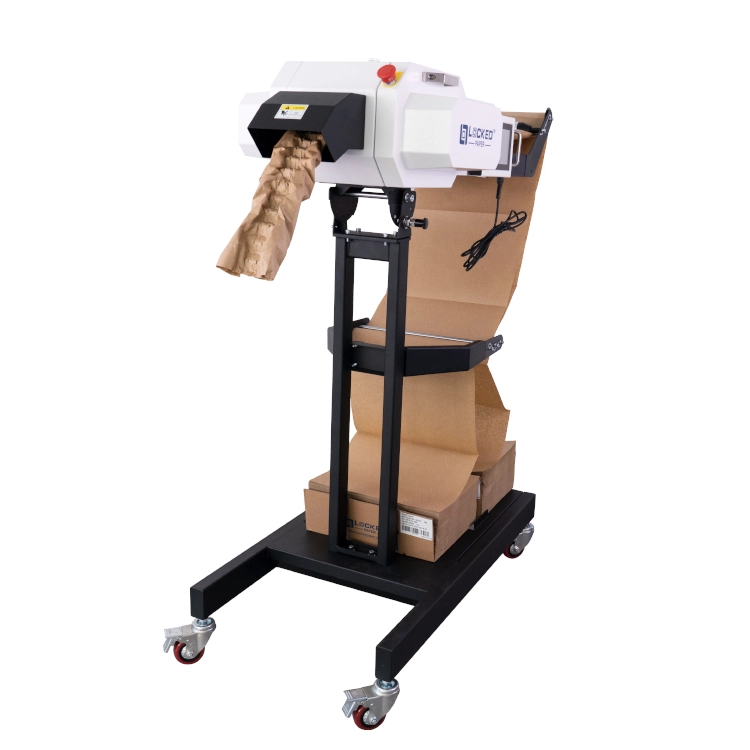

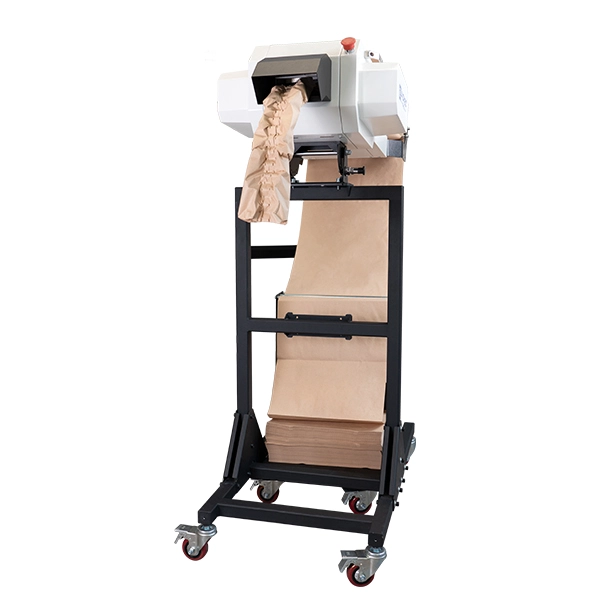

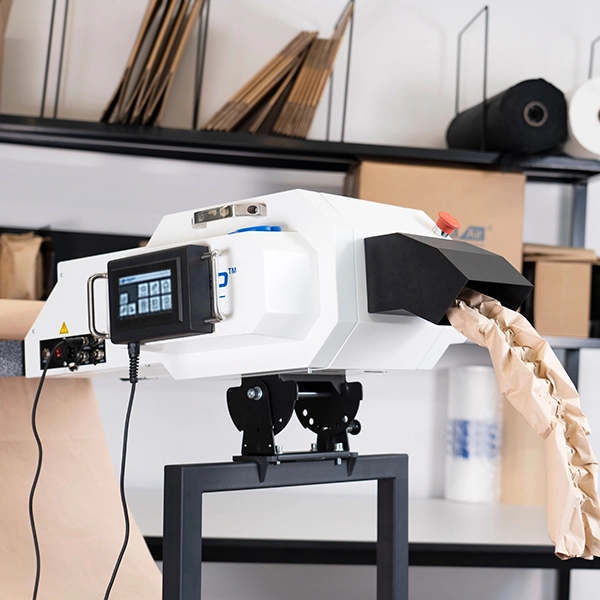

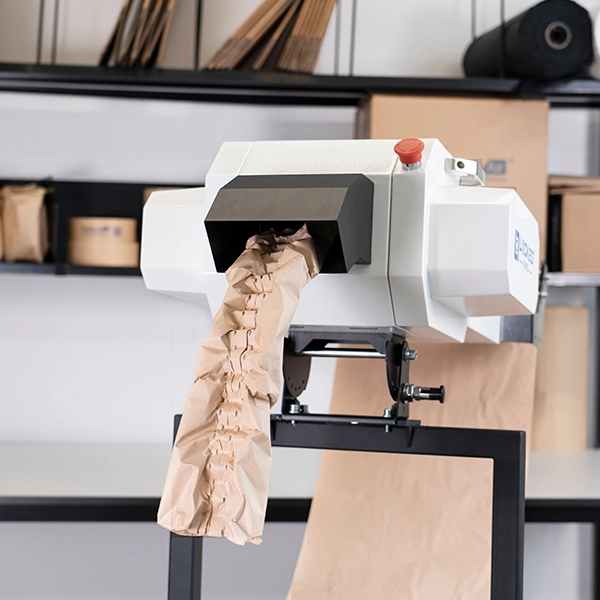

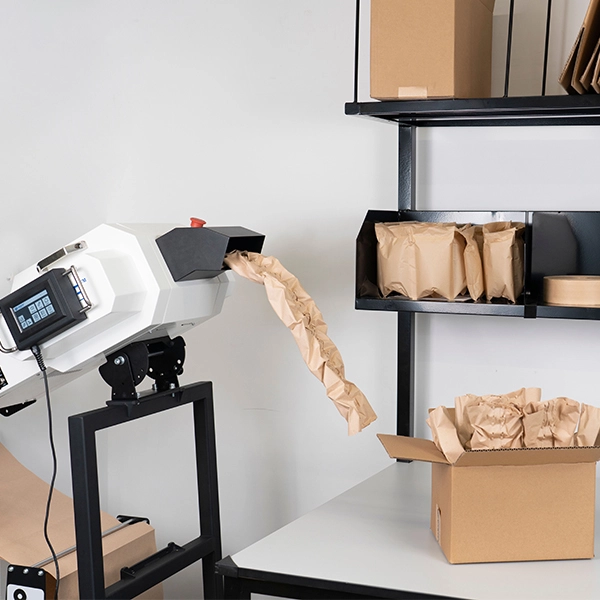

LockedPaper C1 is one compact, smart and fast protective cushioning system. It can efficiently convert 2 layers of kraft paper in to a 3D crimped shape with high density in seconds directly at the packing station, and its highly provides excellent shocu and wbration resistance which can protect well for fragile and heavy items during shipping or transportation. It is an ideal packaging solution for shipping automatic parts, electronics, fine china and more.

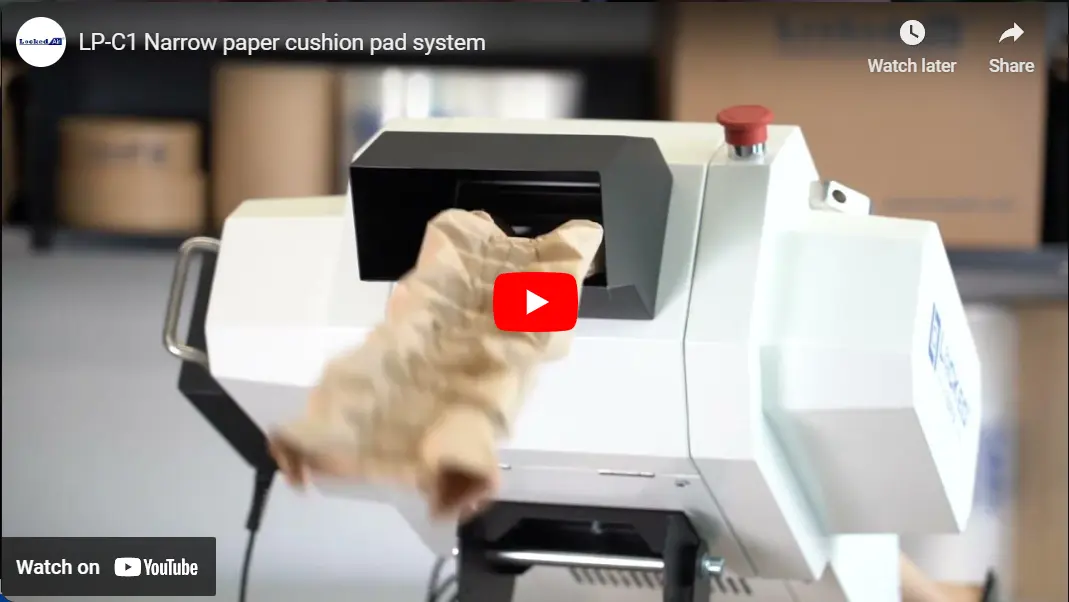

Videos Of LockedPaper-C1 Paper Cushioning Machine

Specifications Of LockedPaper-C1 Paper Cushioning Machine

Metric System

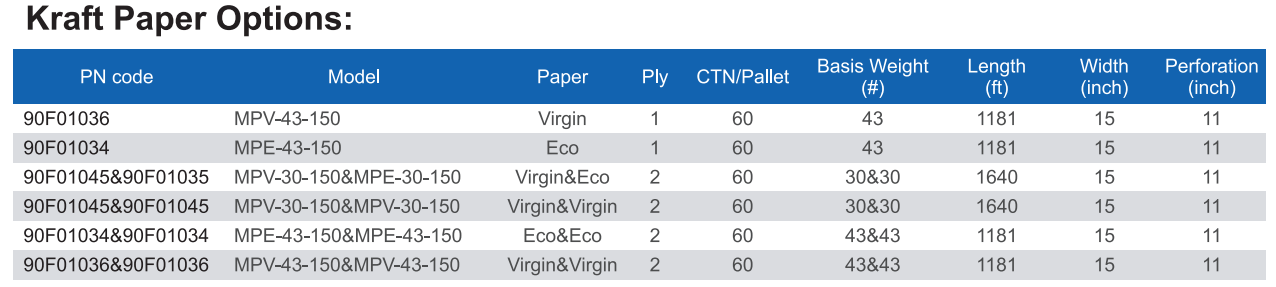

Machine Spec.Paper Options
Feeding Speed

36m/min


Model No.Basis Weight (gsm)Length(m)Width(mm)

Cutting Speed

80 times/min

MPV-50-38050
500380

Voltage

100-240VAC 50/60Hz

MPV-70-38070360380

Power

350W

MPE-50-38050500380

Machine Weight

45KG

MPE-70-38070360380

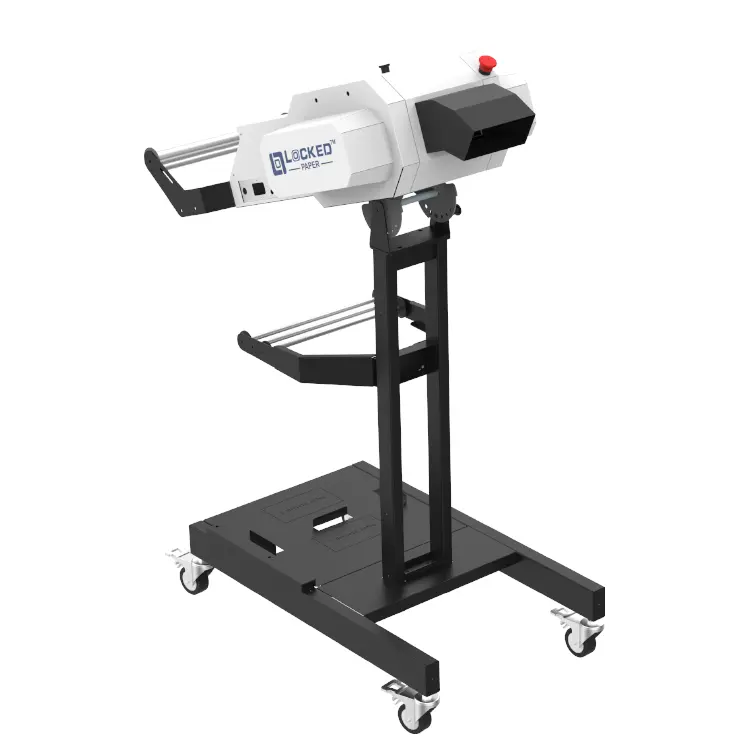

Stand Weight

27.5KGMPR-50-38050
500380

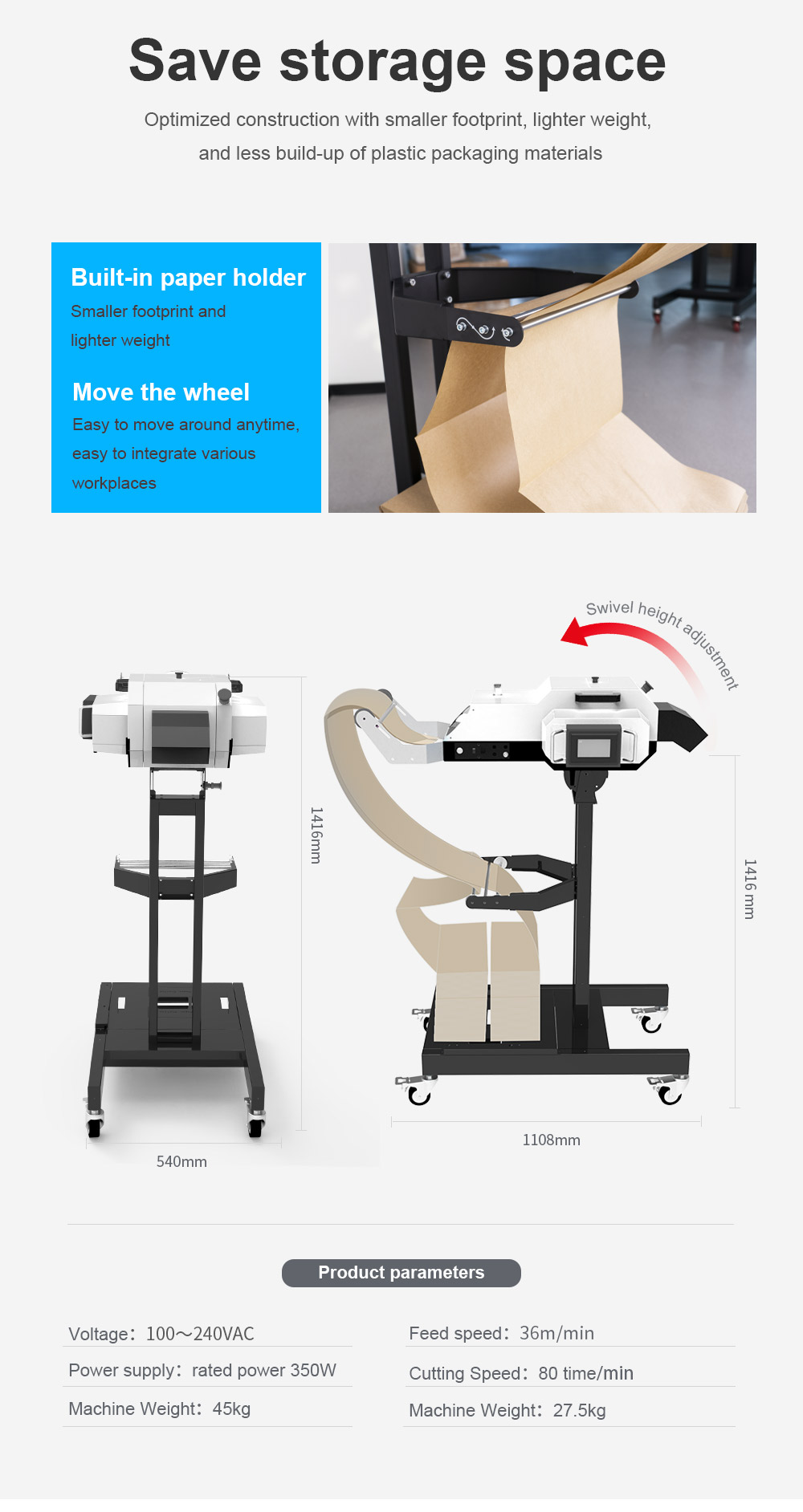

Machine Size (mm)

1108(L)*540(W)*416(H)MPR-70-38070360380
MPV-90-38090280380


Imperial System

Machine Spec.Paper Options
Feeding Speed

98.4feet/min

Model No.Basis Weight Length(feet)Width(inch)

Cutting Speed

80 times/min

MPV-50-38030#164015

Voltage

100-240VAC 50/60Hz

MPV-70-38041#118115

Power

350W

MPE-50-38030#164015

Machine Weight

99.2LBS

MPE-70-38041#118115

Stand Weight

66.2LBS
MPR-50-38030#164015

Machine Size (inch)

143.62(L)*21.25(W)*16.37(H)MPR-70-38041#118115
MPV-90-38053#91815




Click to see the detailed Specifications

Details Of LockedPaper-C1 Paper Cushioning Machine

Features

High performance for density and resilience

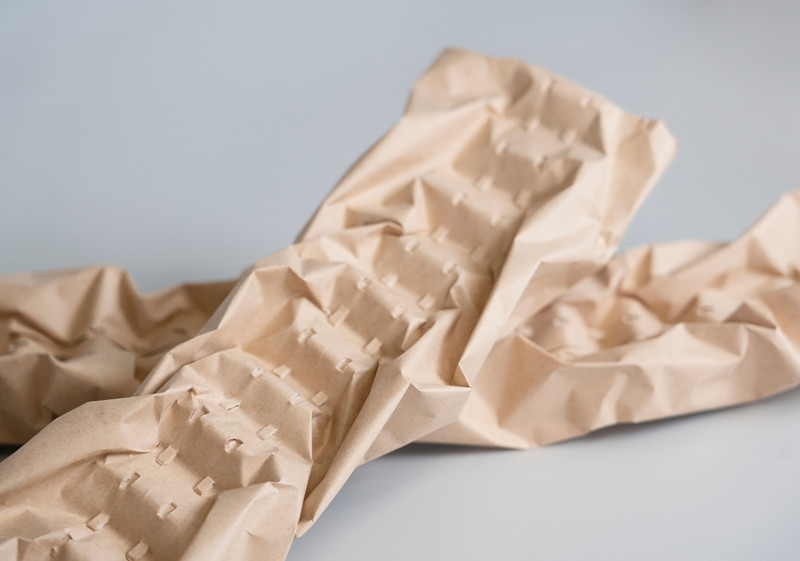

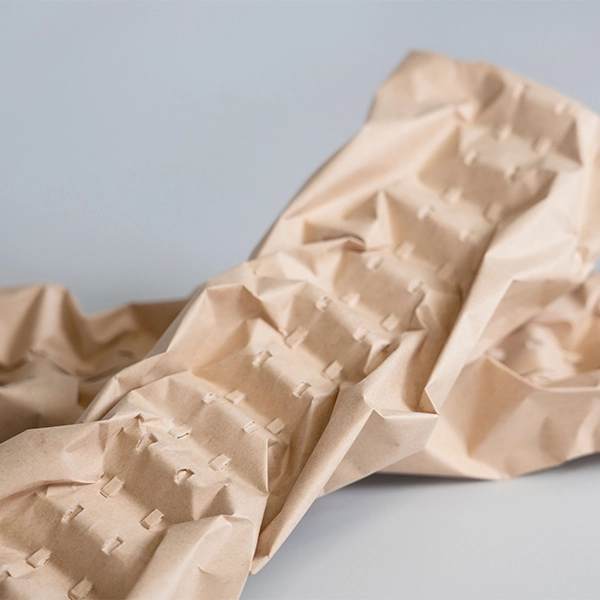

*3D structure with nailless stapling to provide robust cushioning

*High resilience with less paper, convert paper up to 70X of original volume compactible with automatic winder for easier use.




Reliability

*High speed blade with less cycle times

*Jamless design for longer run time between failure

*Modular design makes jam clearance and maintenance very easy




Safe and Easy To Use

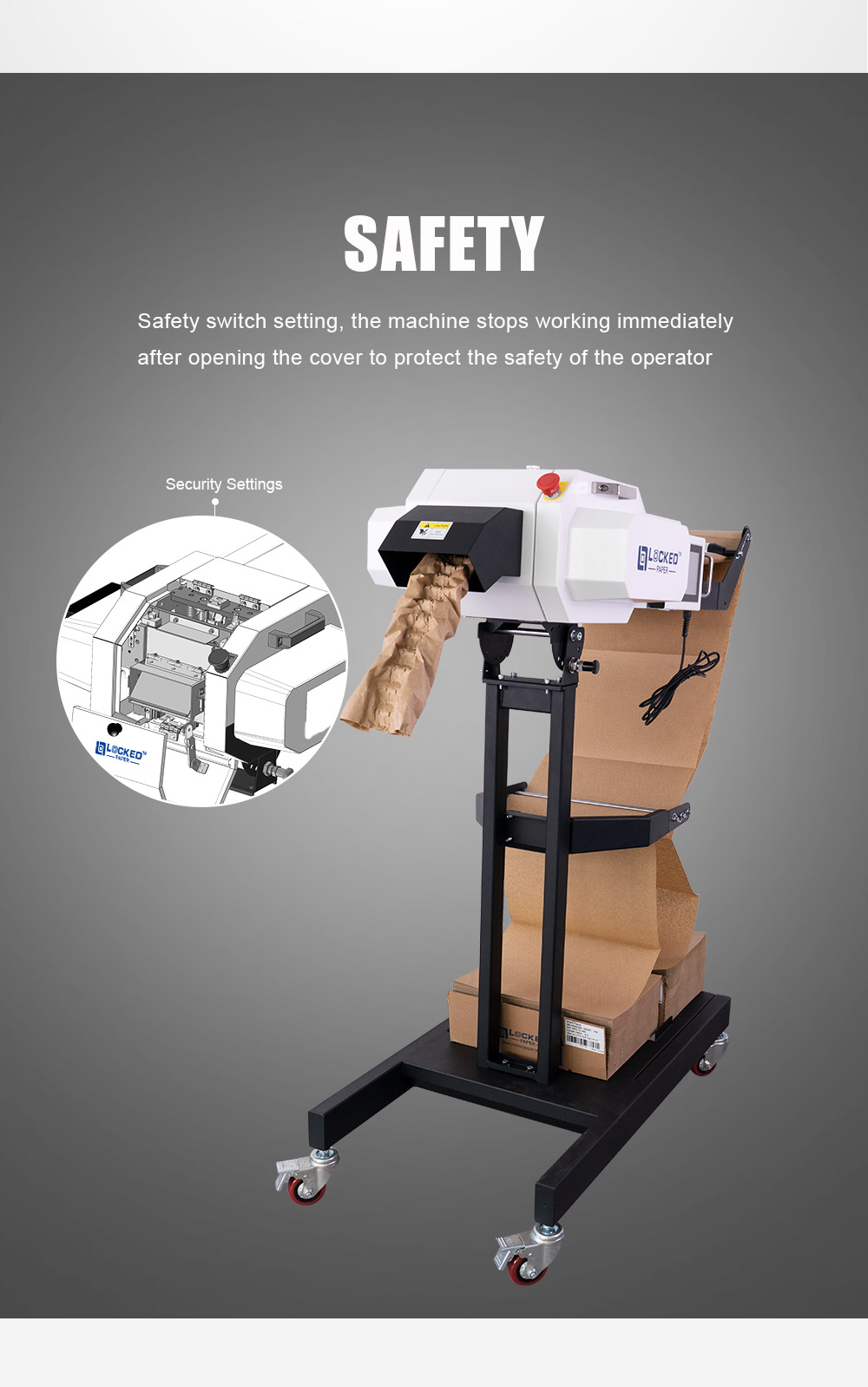

*Safety design with CE certificate, all hazard area isolated with safety lockouts

*Programmable HMI provides powerful and easier control of machine, 7 working modes for your choice

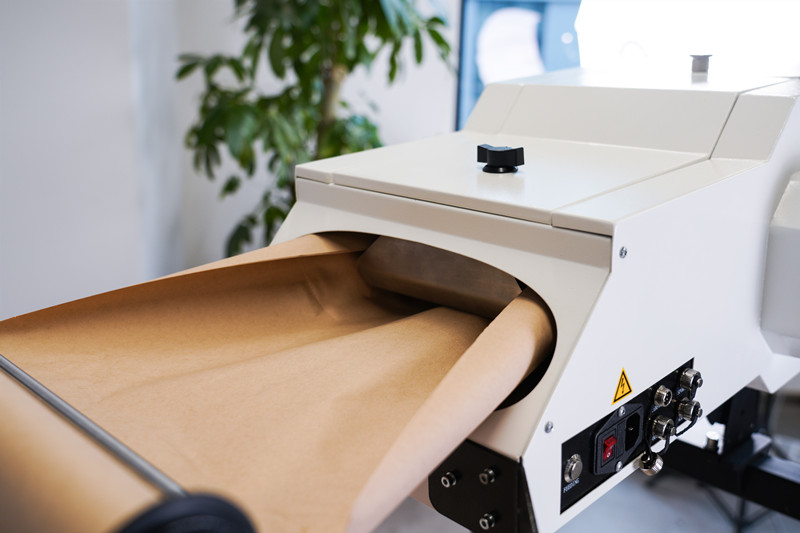

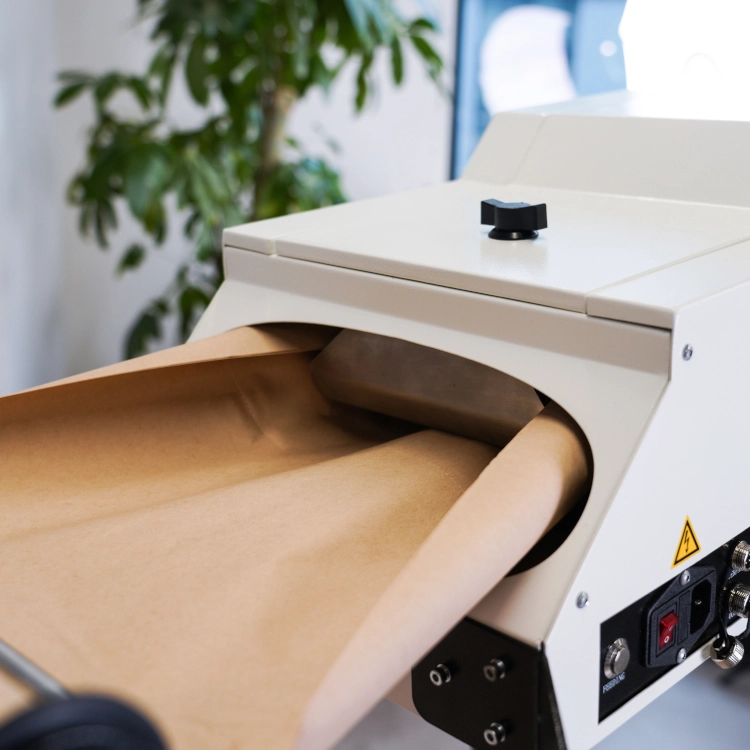

*No need to open cover to load paper, load and go within 30 seconds.




Lockedpaper C1 Paper Cushion Machine Advantages

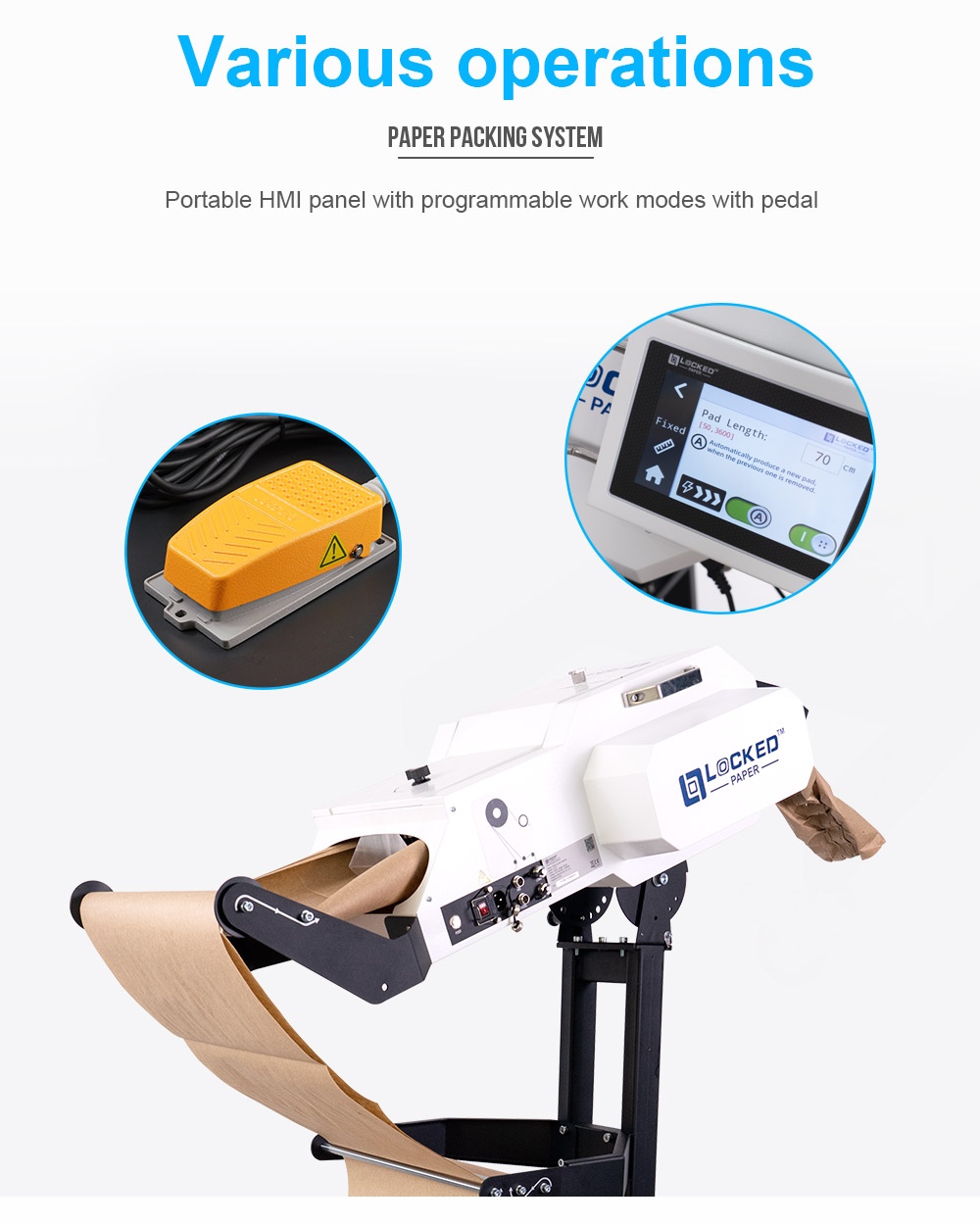

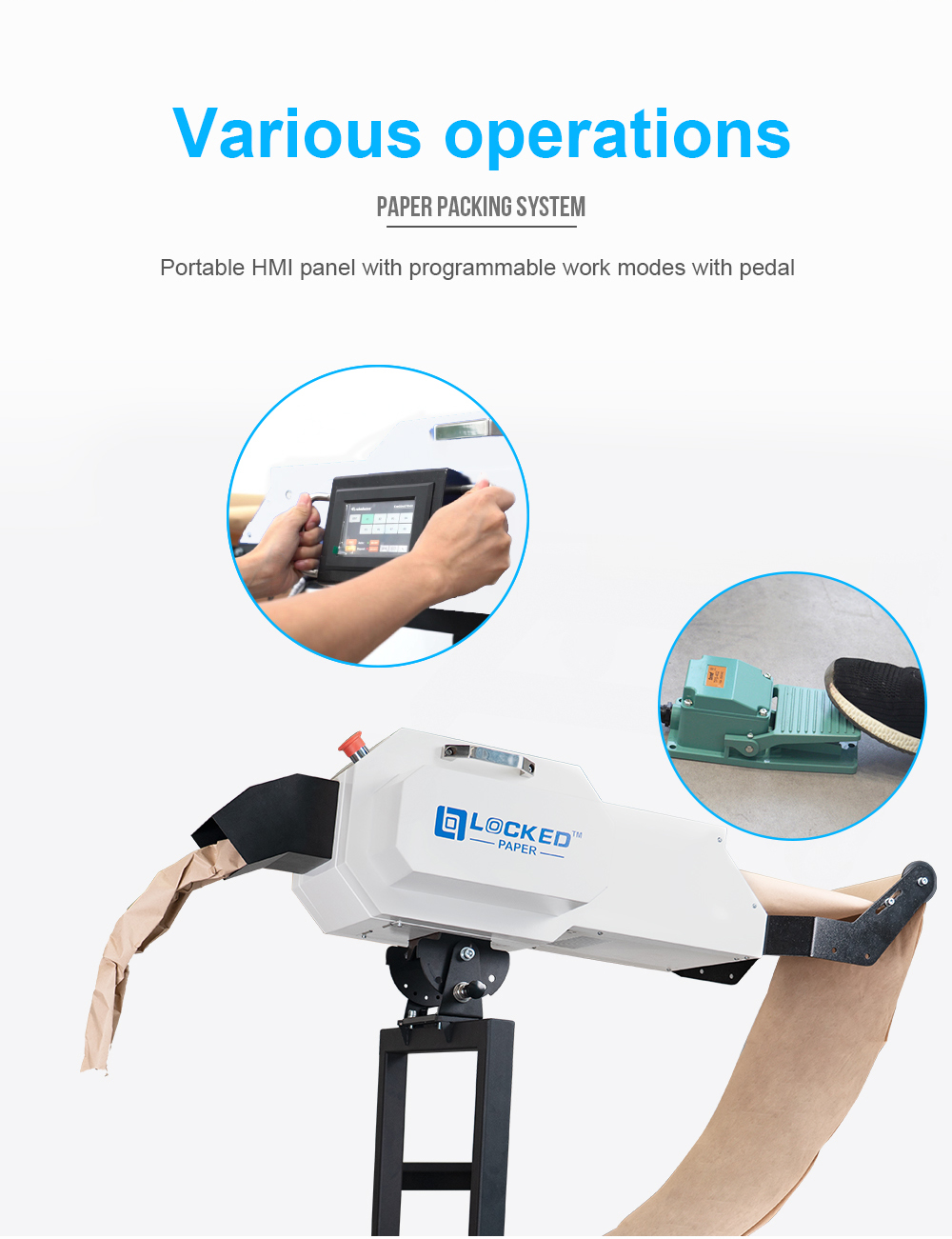

1. Multi Operations: Portable HMI panel, programmable work mode with pedal;

2. Compact design: Smaller footprint and light weight than Ranpak;

3. Fast: High speed shooter 30m/min;

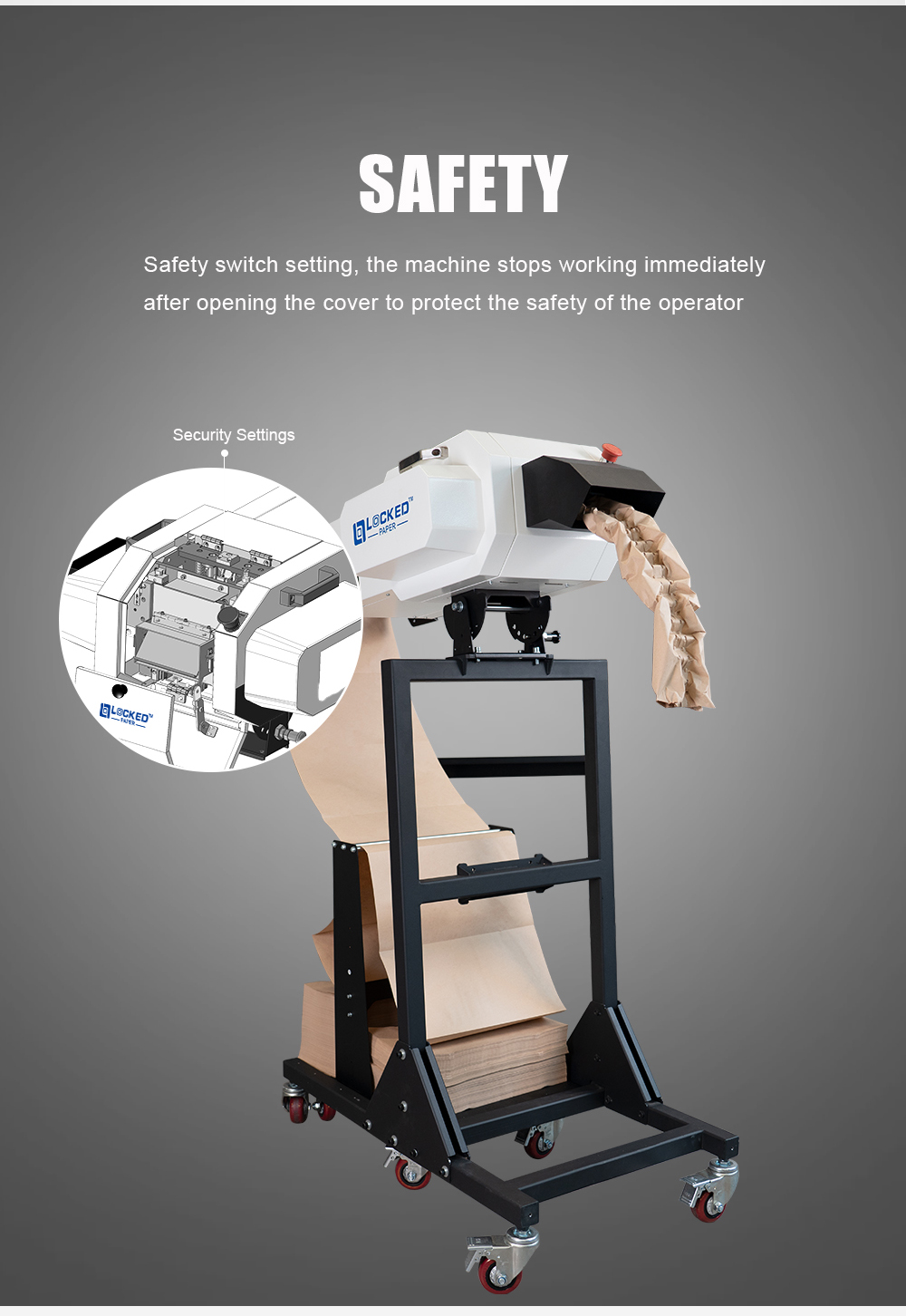

4. Safe: Machine stops working when open its cover;

5. Intelligent: Paper shortage and jam alarm.



Benefits:

Multi operations: Meet various kind of application;

Compact design: Space saving, easy to integrate into workplace;

Fast: This paper void fill packaging machine saves time to fill same carton.


Spotlights:

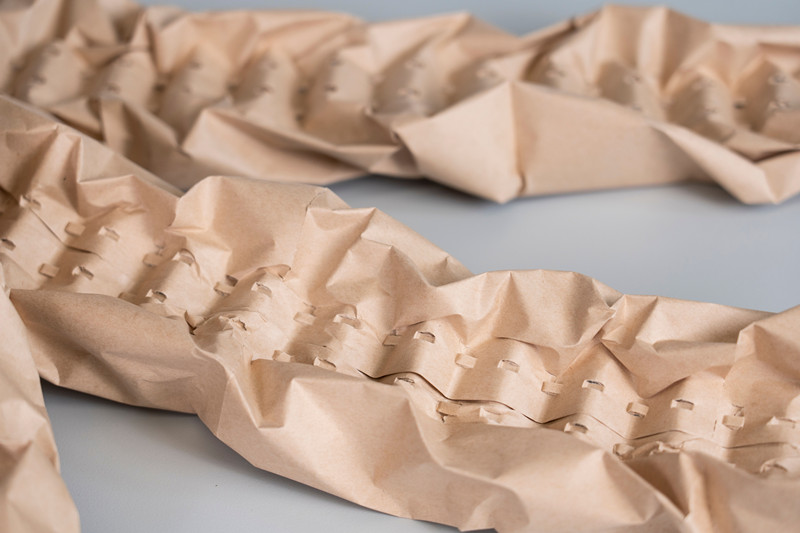

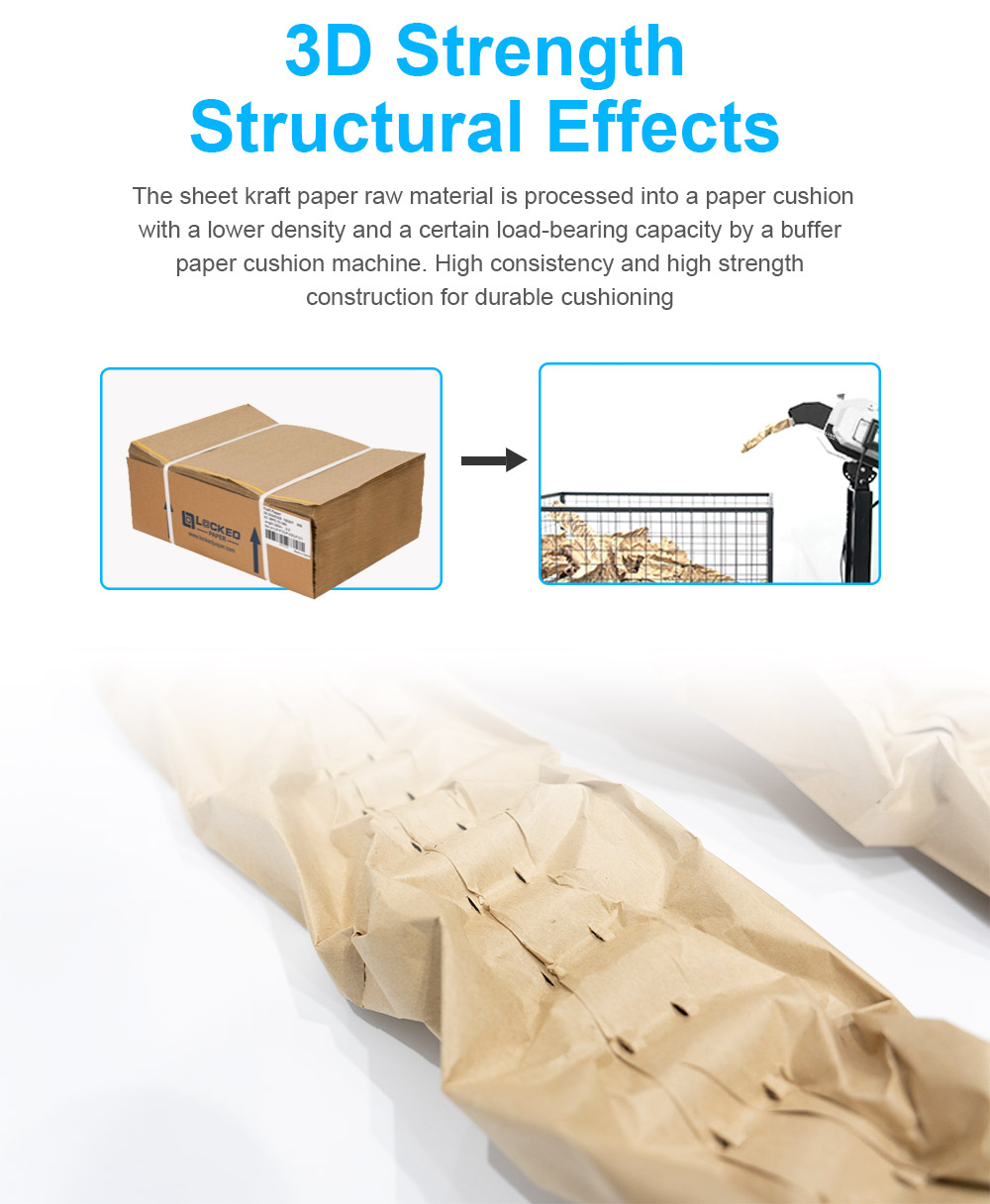

1. 3D strength structure, firm kitting/nails;

Benefits: High consistancy and high strength structure for long lasting cushioning.

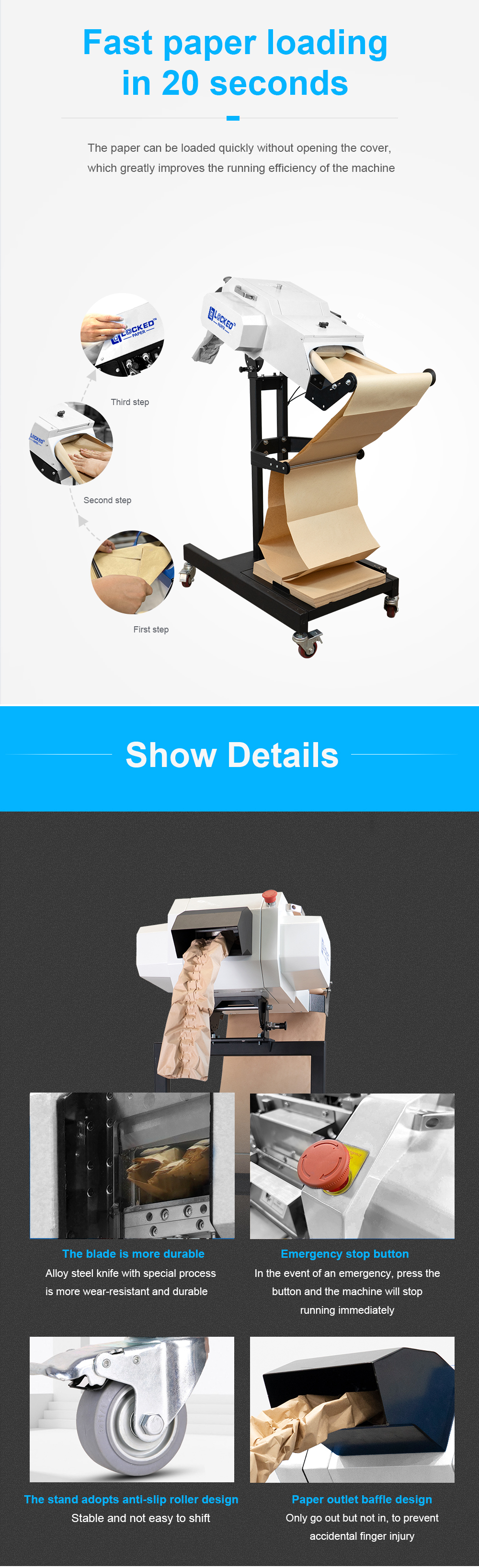

2. Fast paper loading within 20s, No need to open cover;

Benefits: Increase operation efficiency.

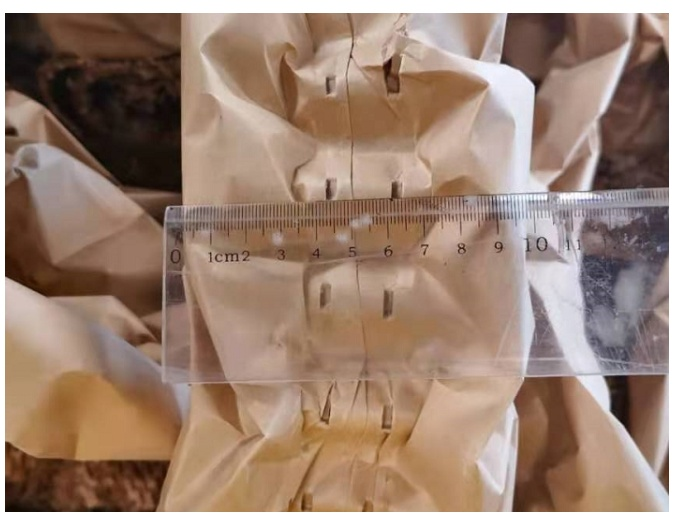

3. High expansion ratio for pad cushions

Benefits: High paper utilization, less cost for same cushioning.

Lockedpaper C1 Paper Cushion Machine Applications

Cushioned paper cushions are suitable for a wide range of applications in the automotive parts, instrumentation, crafts and other industries.







LockedPaper-C1 Paper Cushioning Machine
