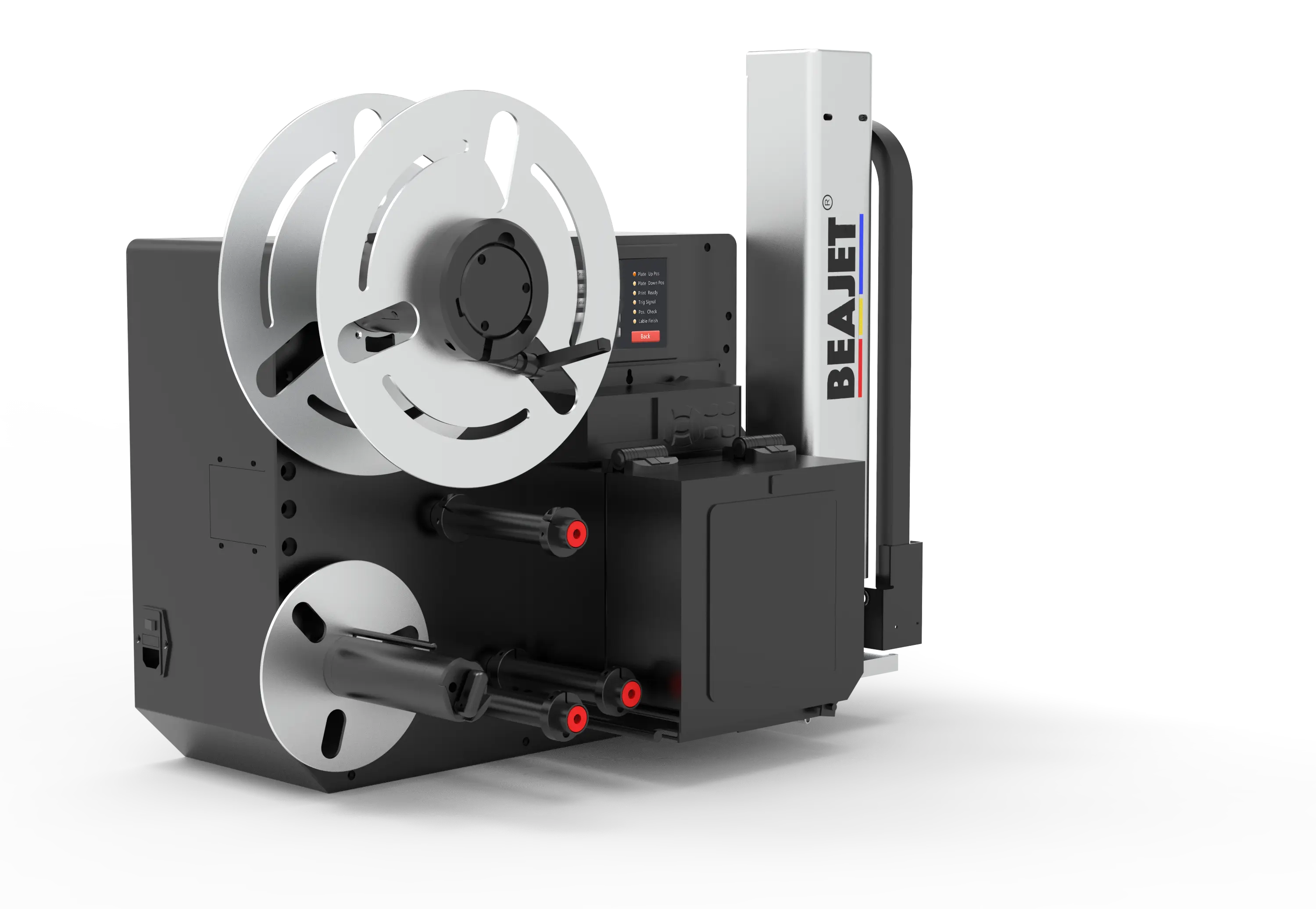

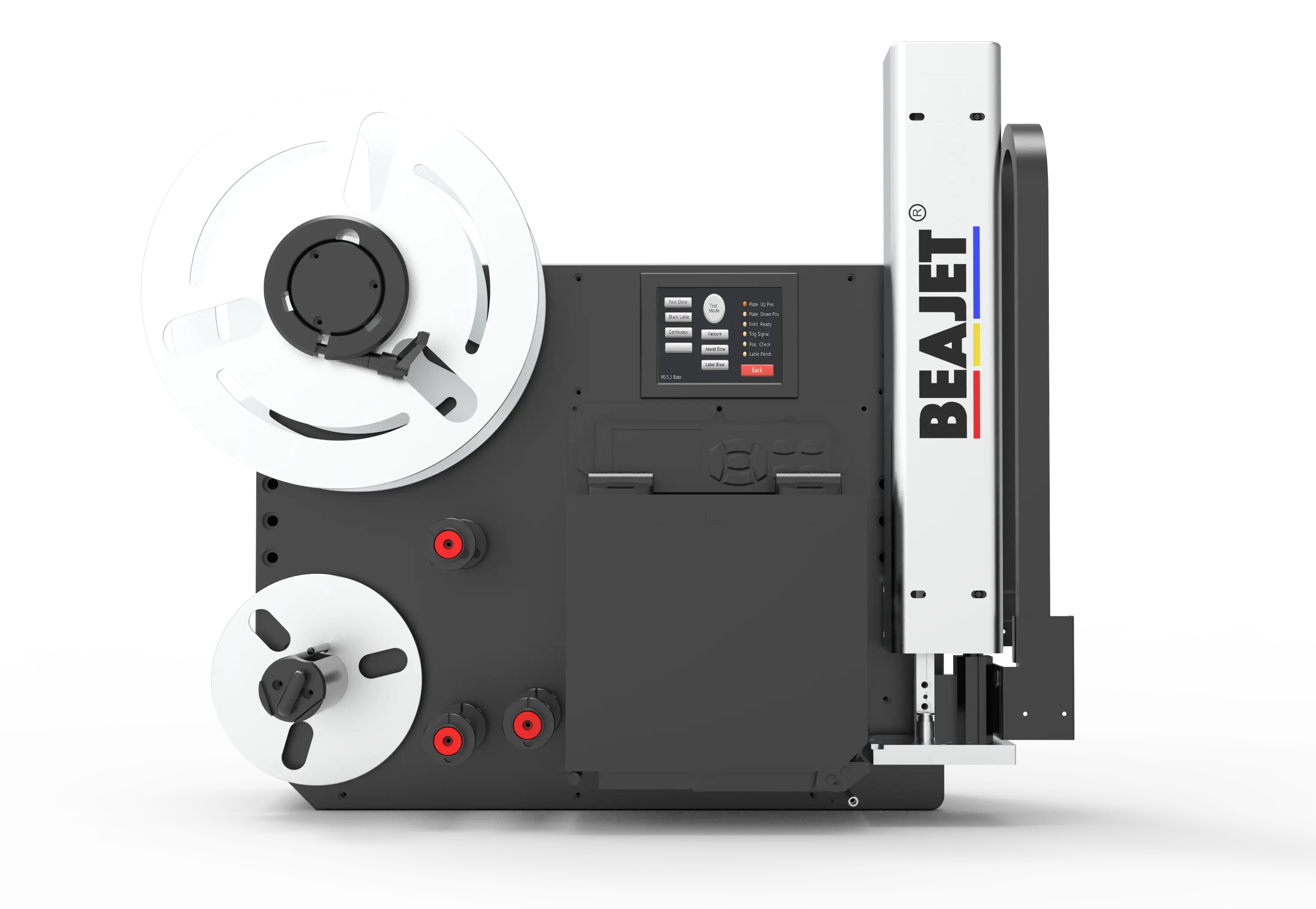

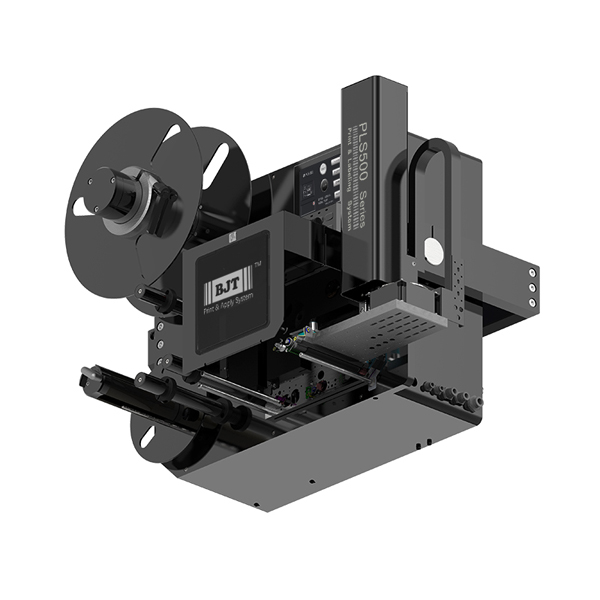

Print and Press-Apply Labeling System PLS540

Print and Press-Apply Labeling System PLS540

Introduction Of Print and Press-Apply Labeling System PLS540

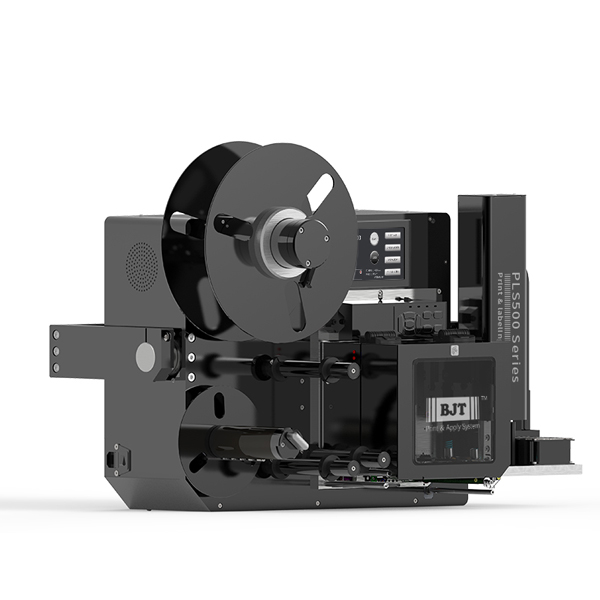

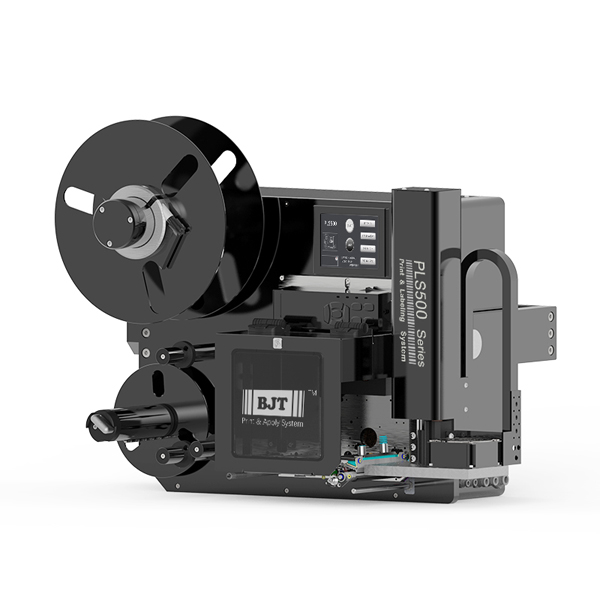

PLS500 Series print & label apply system is unrivaled regarding stability. It uses Zebra ZE500 printing engine and this engine is one of the most professional printing engines in the world. The other structure used the most reliable Festo pneumatic part. With the design & development of BJT engineer, it is highly integrated design and spare part is modularized for fast installment & maintenance. Warranty can be 5 years at most.


PLS500 Series print & label apply system can reach 60 times/min and with clear and readable barcodes.

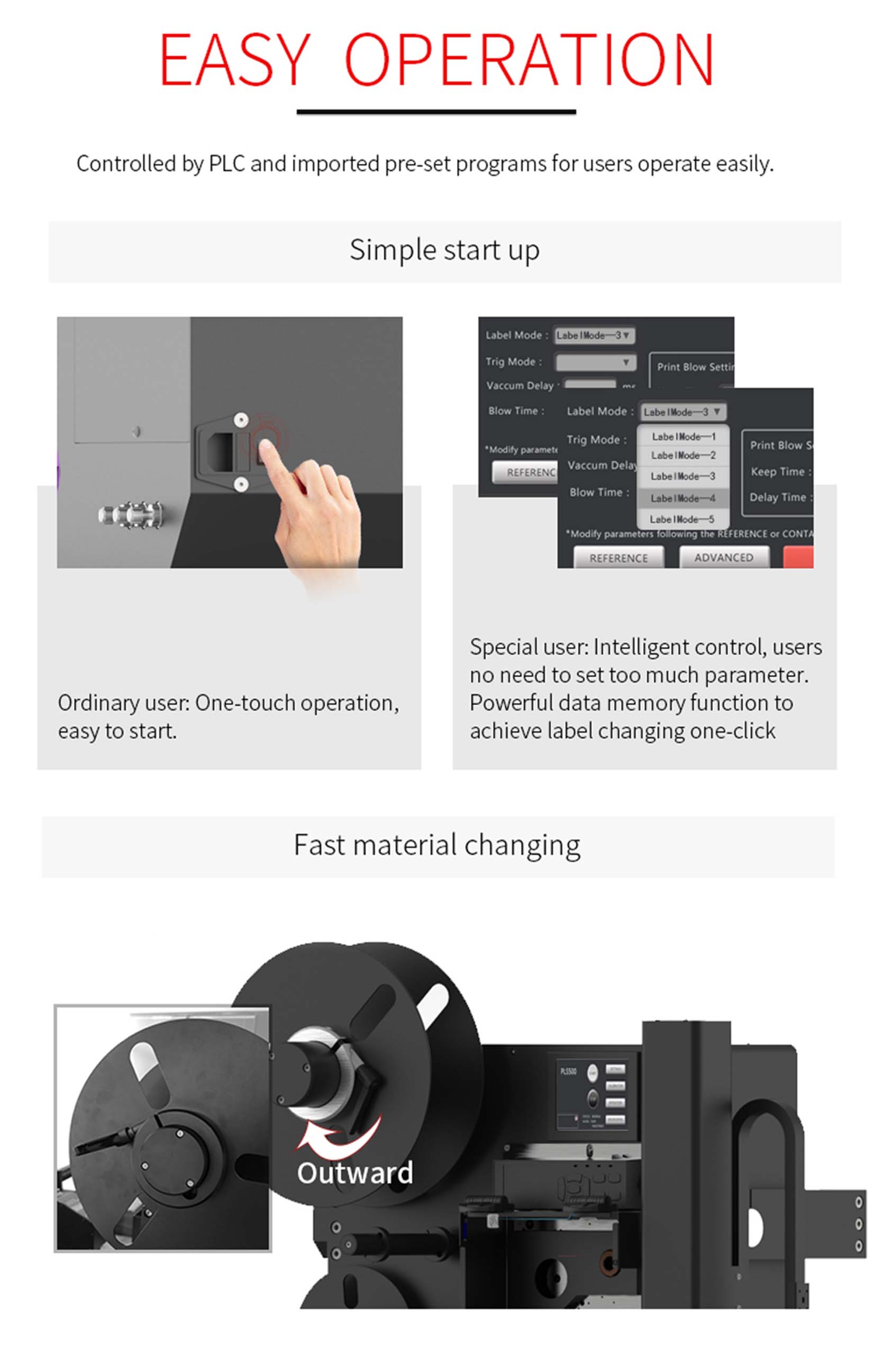

With ergonomic integration design, you can replace labels and ribbons quickly, operator only needs less than 2 minutes to replace them.

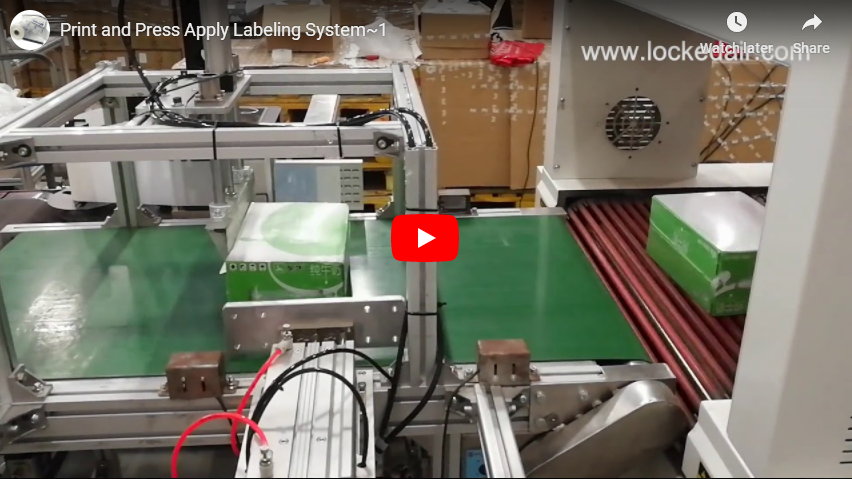

Videos Of Print and Press-Apply Labeling System PLS540

Specifications Of Print and Press-Apply Labeling System PLS540

Model

PLS540(Printing and Press-Apply Labeling System)

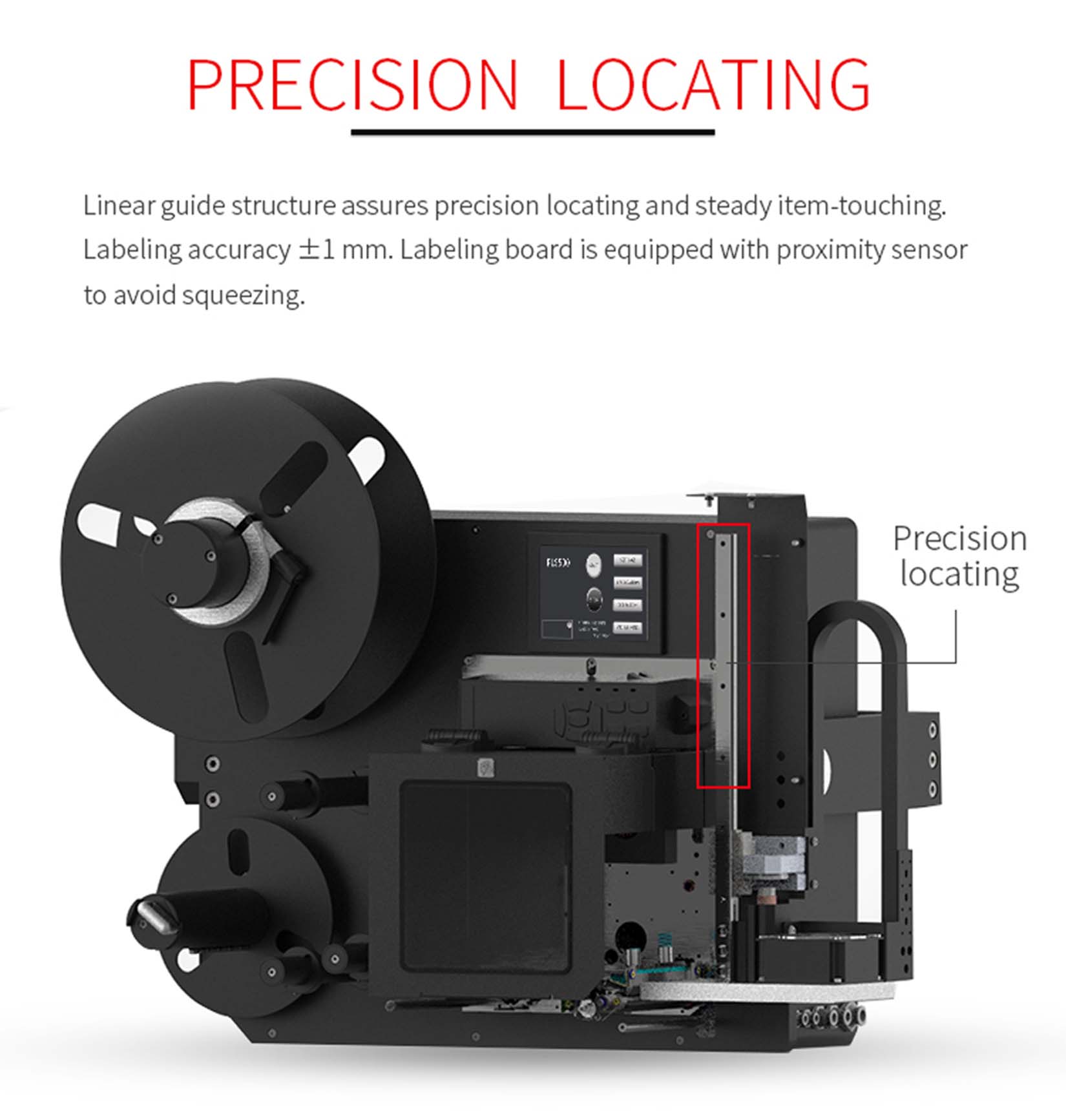

Labeling Accuracy

±1mm

Machine Size

740*562*386

Weight

50kg

Power

500W

Voltag

AC220V

Air Consumption

110L/min @ 6bar

Material of Labe

Coated paper/Sliver paper/Express bill(thermal paper)

Size of Label

Width 25-107mm,Length 15-150mm

Type of Labe

Thermo sensitive/Thermal transfer

Feeding Mode

Label, fold labe

Diameter of Label

Max 254mm(10inch

Diameter of Base Label

Max 152mm(6 inch)

Roll Paper Diameter

100mm

Peel-away Spee

Max 305mm/s(depend on type of printer engine and label)

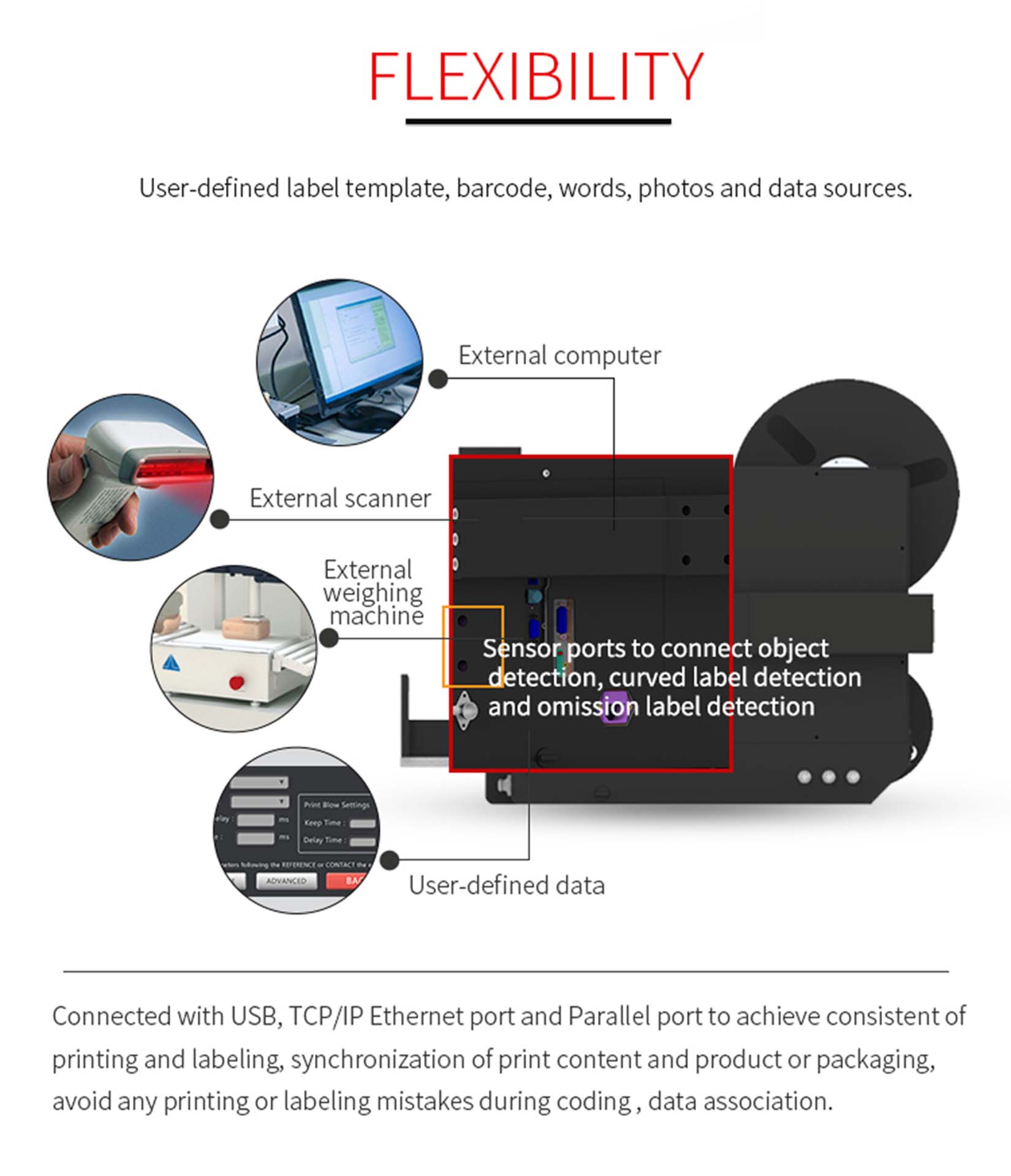

Printer Port

USB, Ethernet port, Parallel port

Labeling Trigger Mod

Labeling/Printing( Changeable)

System Input Port

Labeling/Printing

System Output Port

Print task ready、Finished labeling、Error alarm


Click to see the detailed Specifications

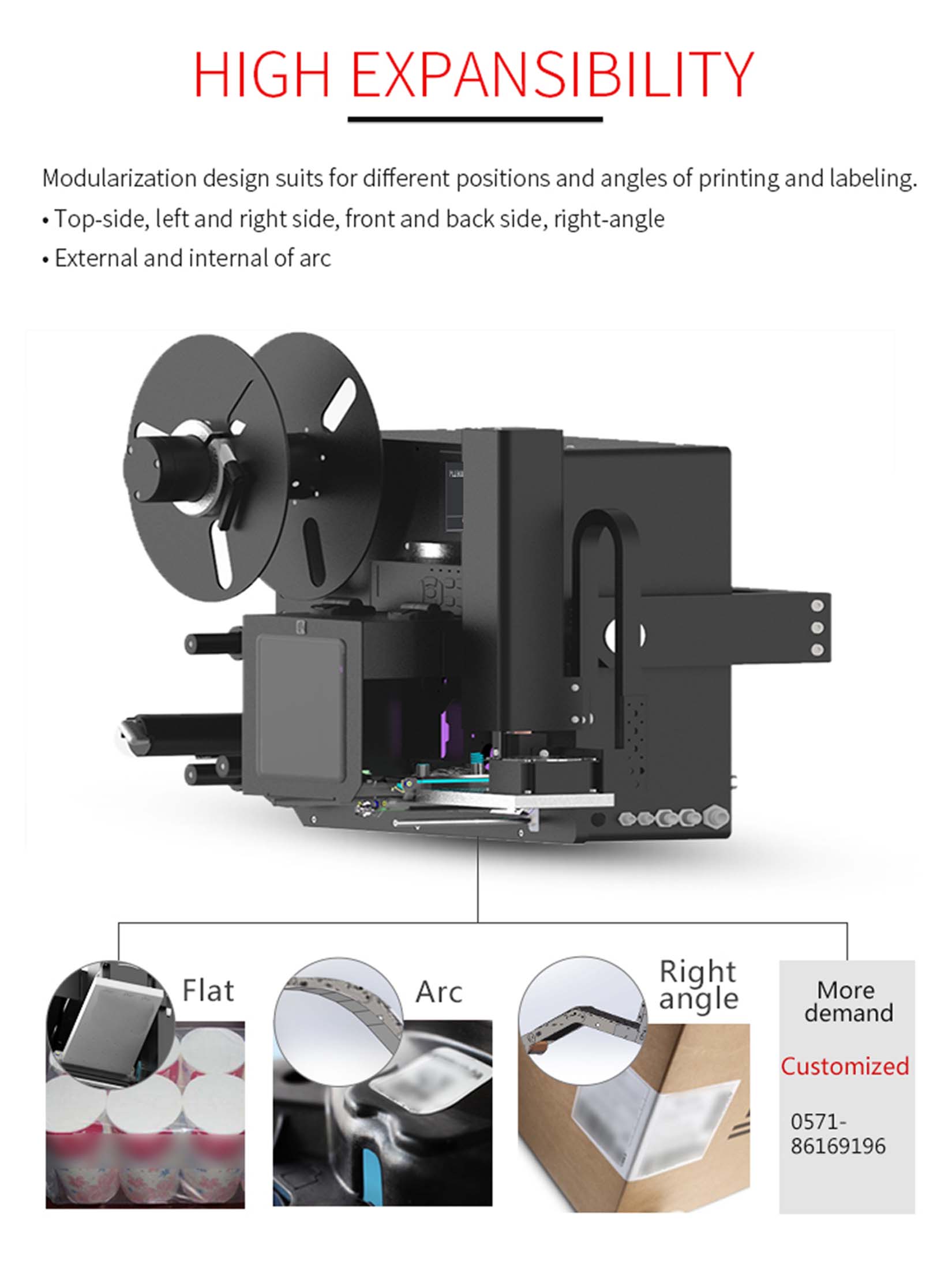

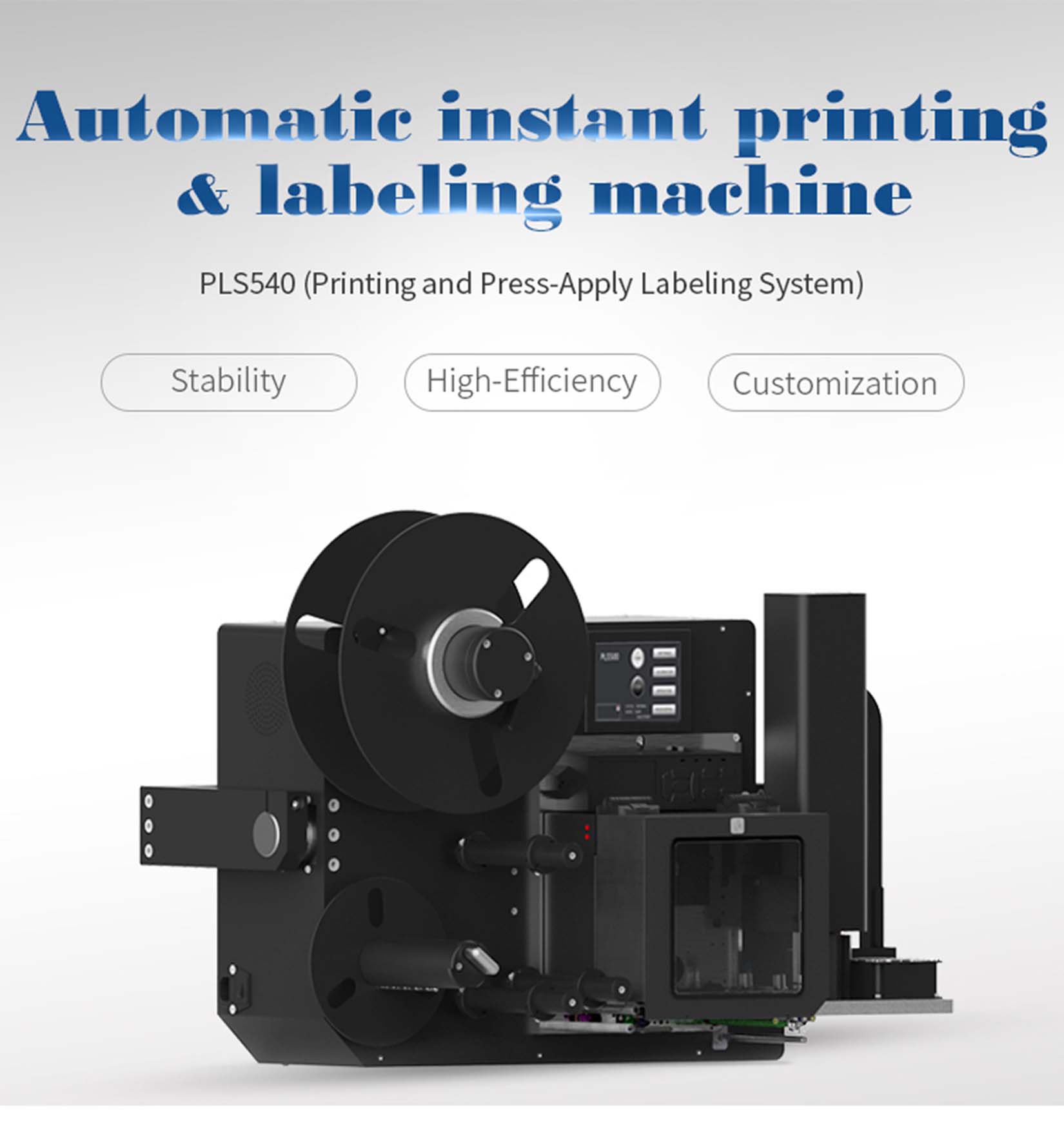

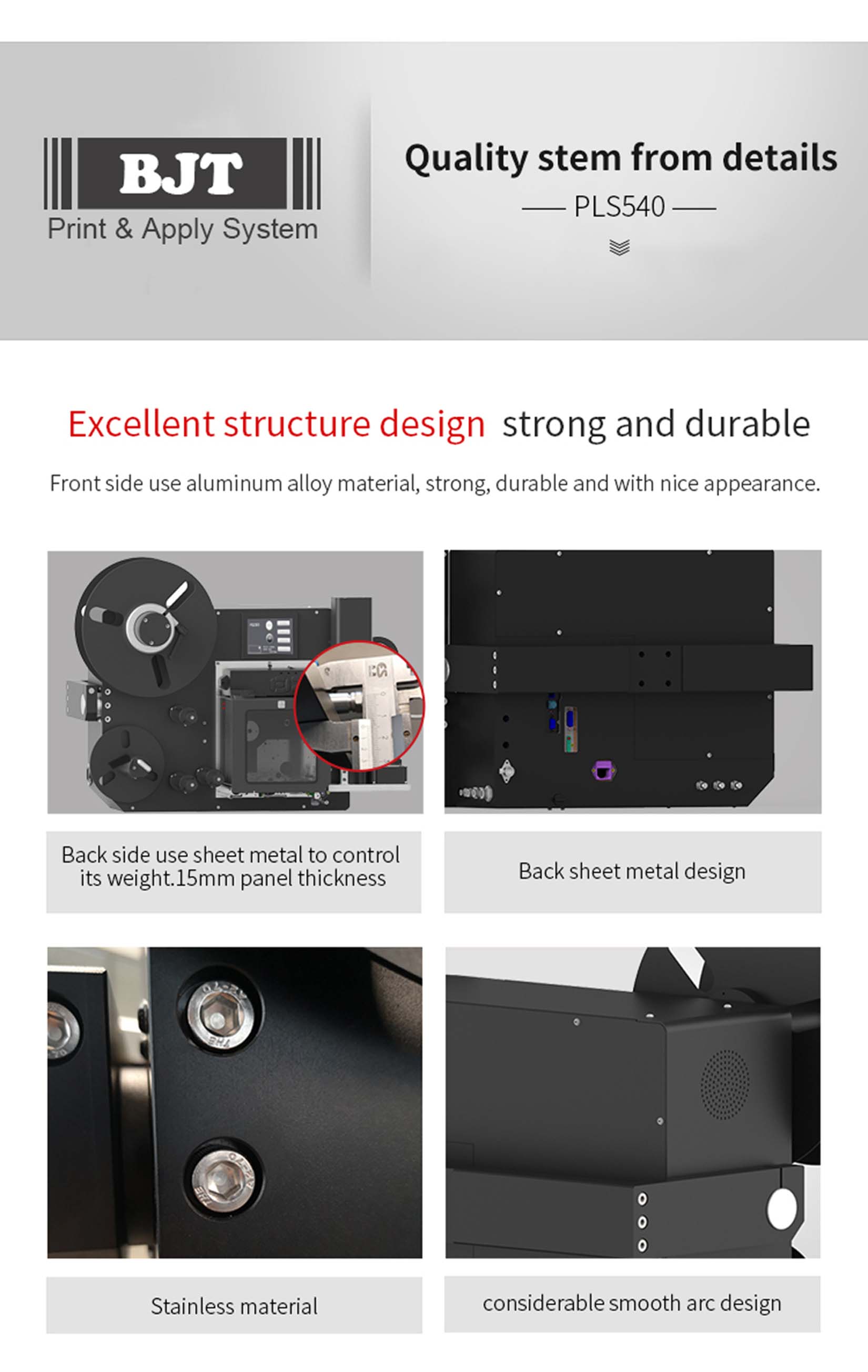

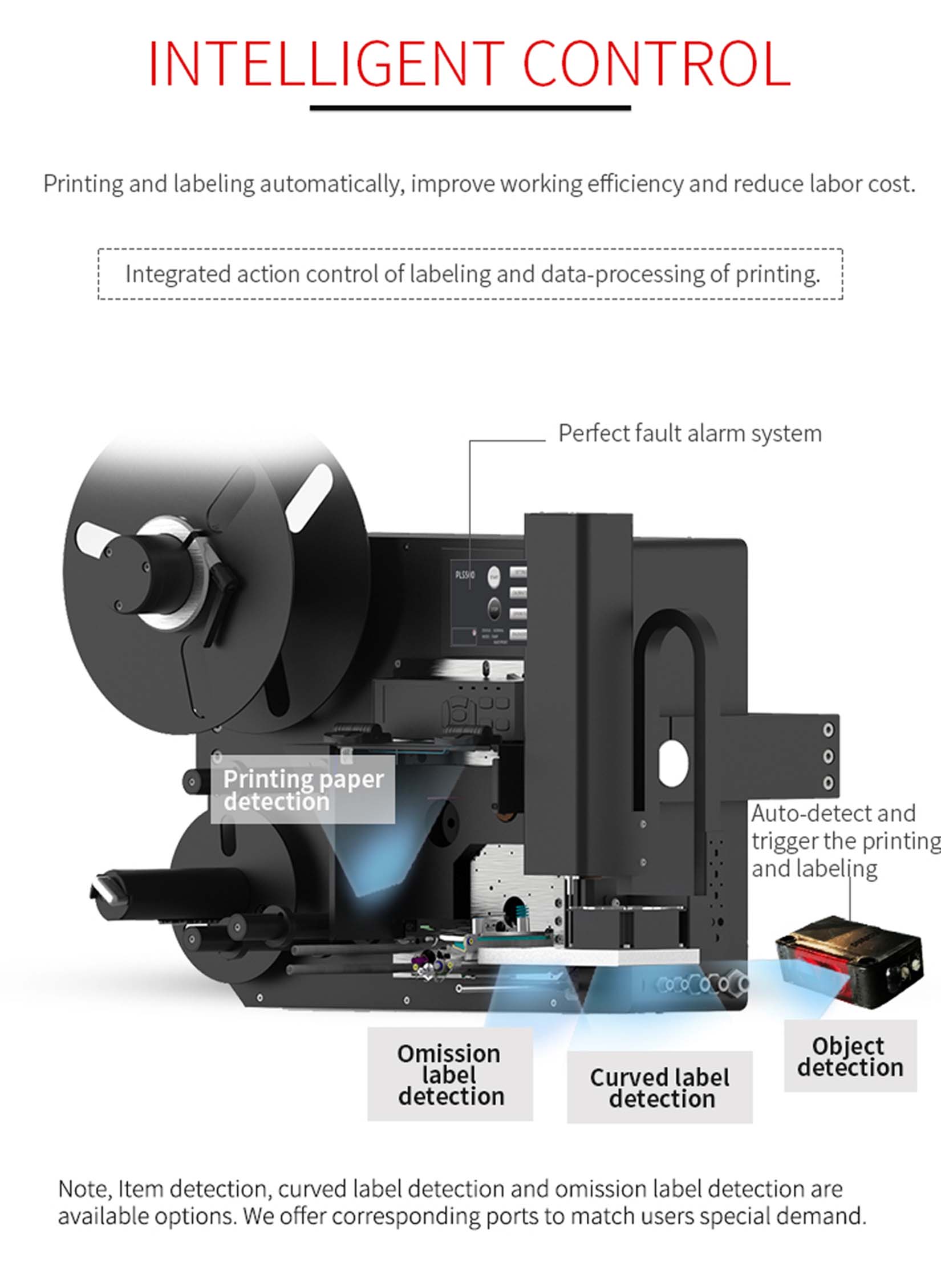

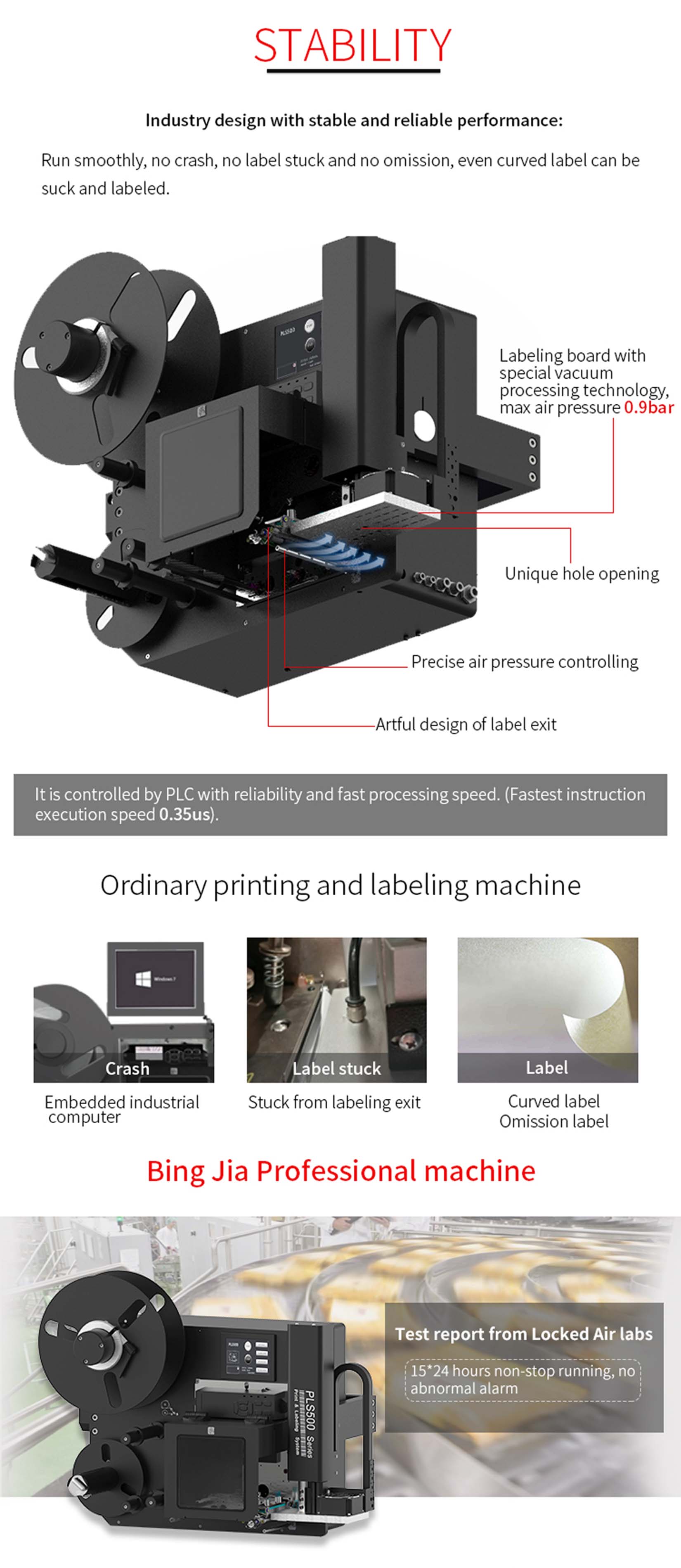

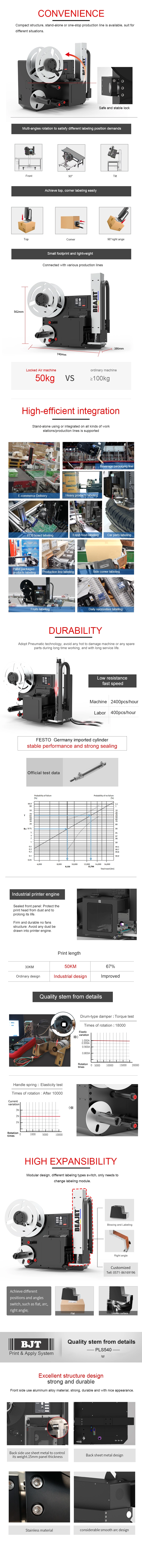

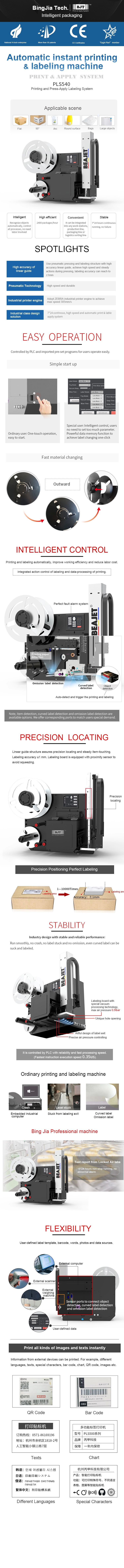

Details Of Print and Press-Apply Labeling System PLS540

Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540 Print and Press-Apply Labeling System PLS540
