Air Cushion Delivery System -ET1004

Introduction Of Air Cushion Delivery System -ET1004

Air bubble delivery system, save ground space, deliver air bubble to each packer, efficient and convenient.

Videos Of Air Cushion Delivery System -ET1004

Specifications Of Air Cushion Delivery System -ET1004

ModelET 1004
Cushion TypeAir Pillow
Film Thickness20um~35um
Film TypeHDPE(2 LAYER)、LDPE(3 LAYER)、PA/PE(7 LAYER)
Air pillow Film Width (mm)200, 250
Options-S(Single sensor)、-SS(double sensors)
Dimension(L*W*H)820*546*Customized Height
Weight28Kg(Main module)、4.5Kg(Control box)
Auto Positional StopTop+Bottom
Film anti-drop ProtectYes
Palletizing4 sets/pallet
Pallet Size1100*1100mm
CertificationN.A.
Warranty2 years (Work with LockedAir sys)

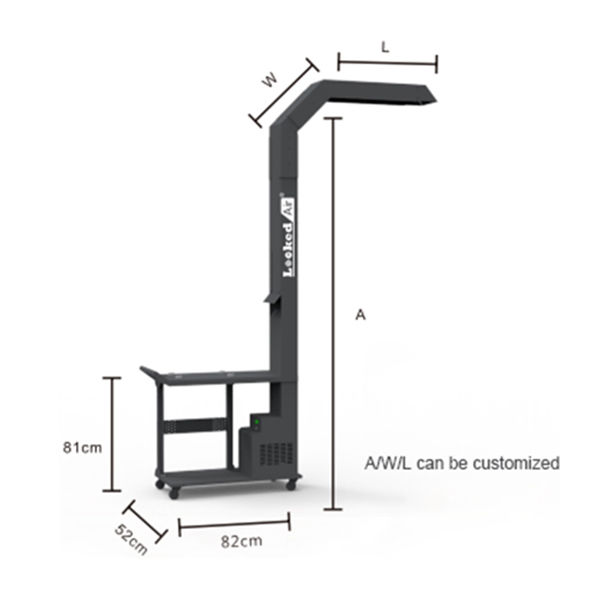

For more information refer to engineering drawing


Click to see the detailed Specifications

Details Of Air Cushion Delivery System -ET1004

Air Cushion Delivery System -ET1004 Air Cushion Delivery System -ET1004
