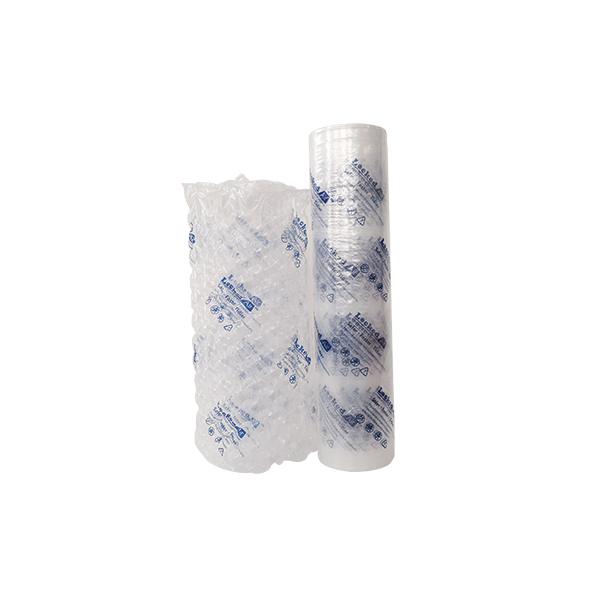

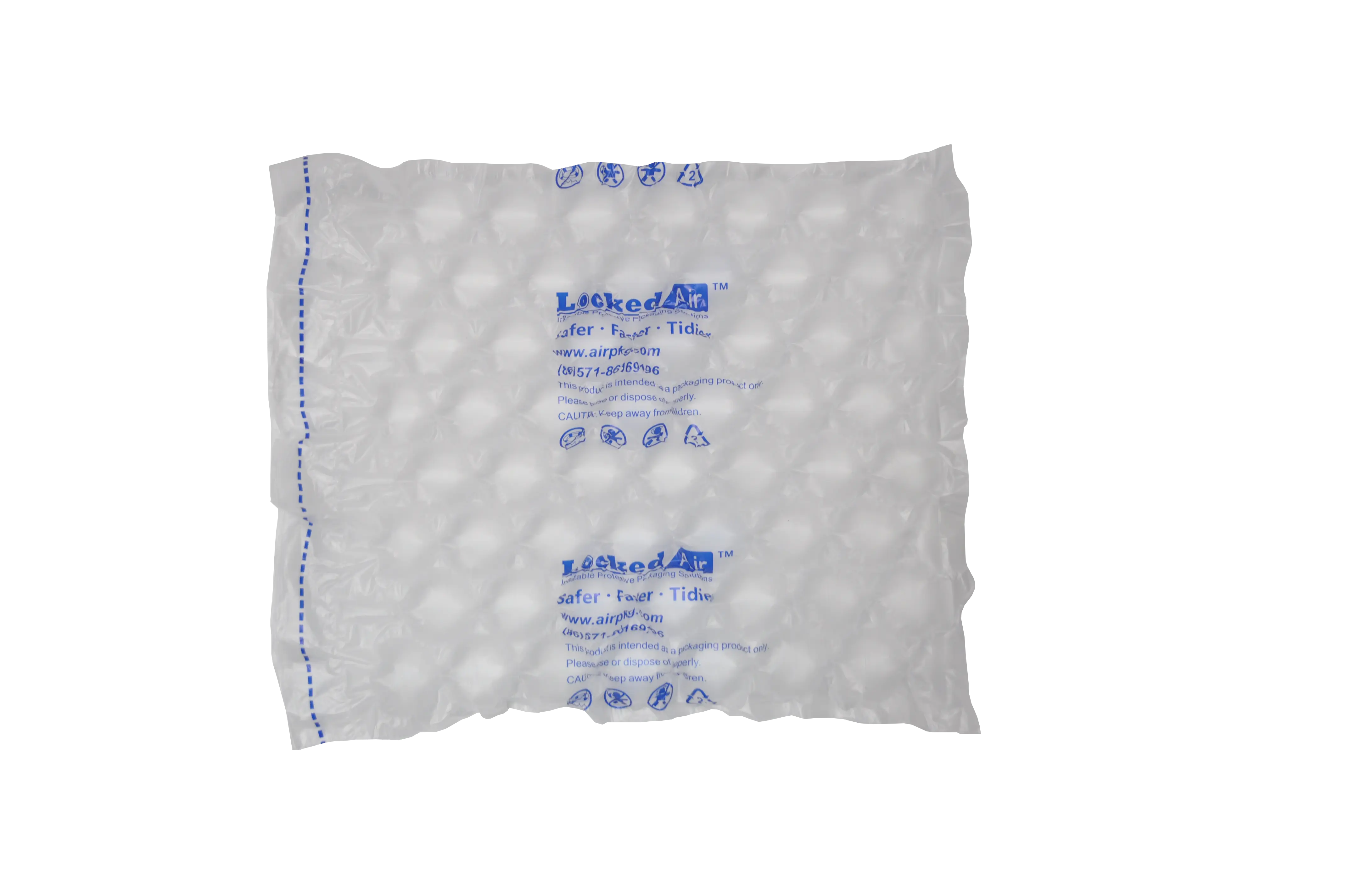

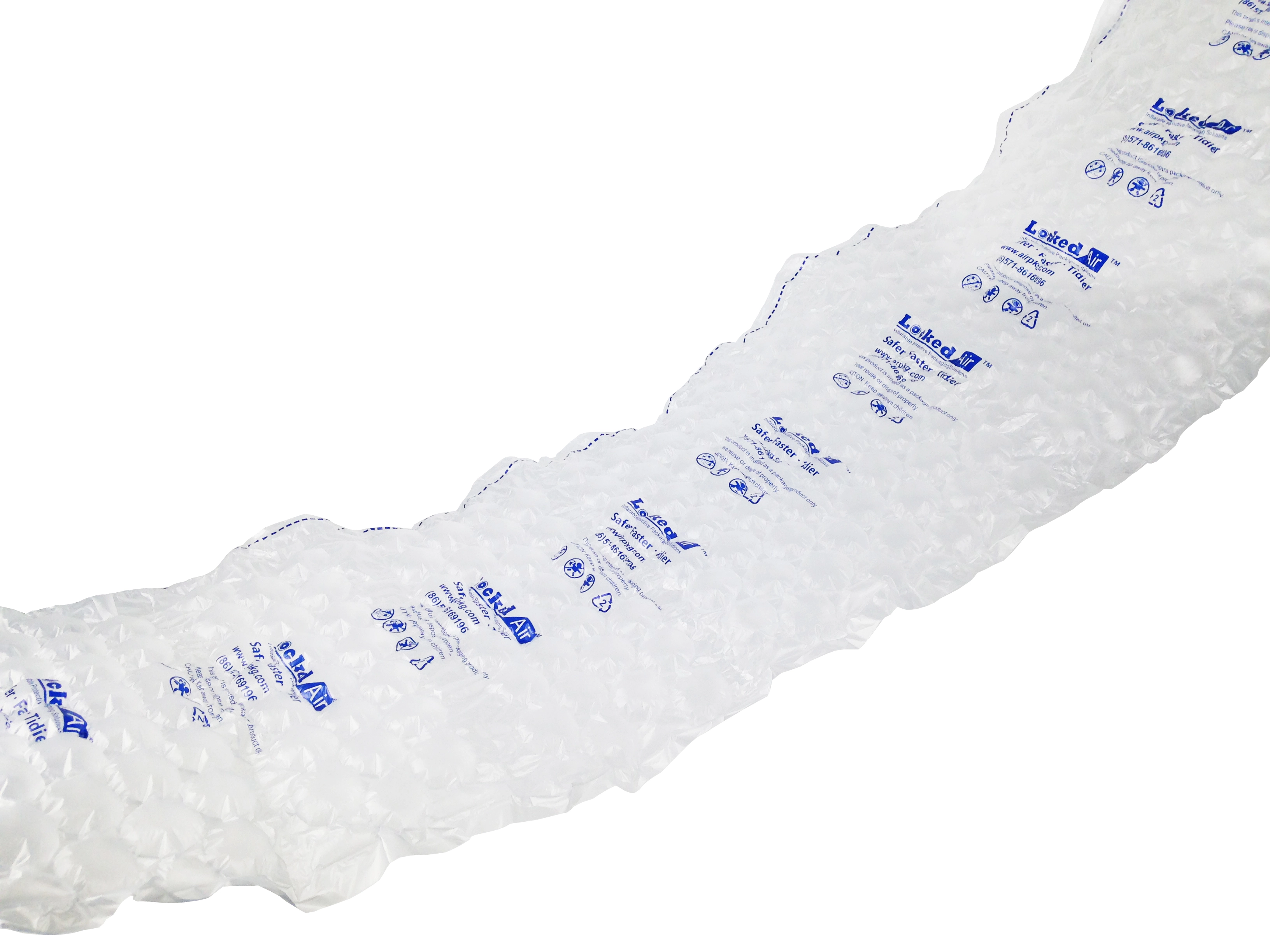

Air Bubble Bag-MF series.

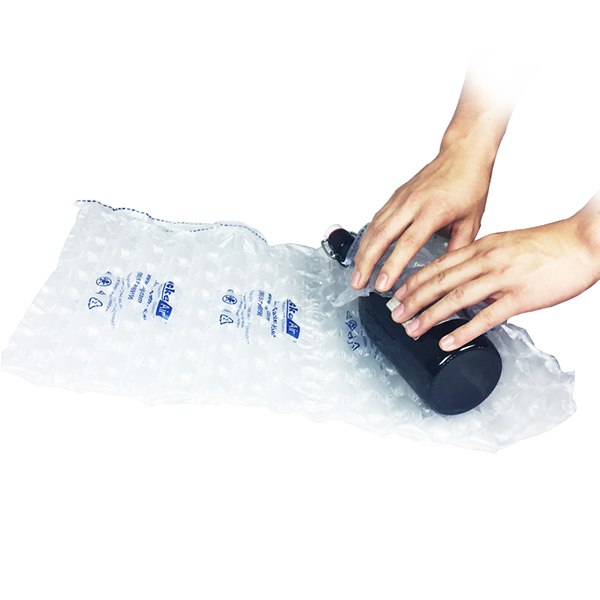

Design for wrap protection.

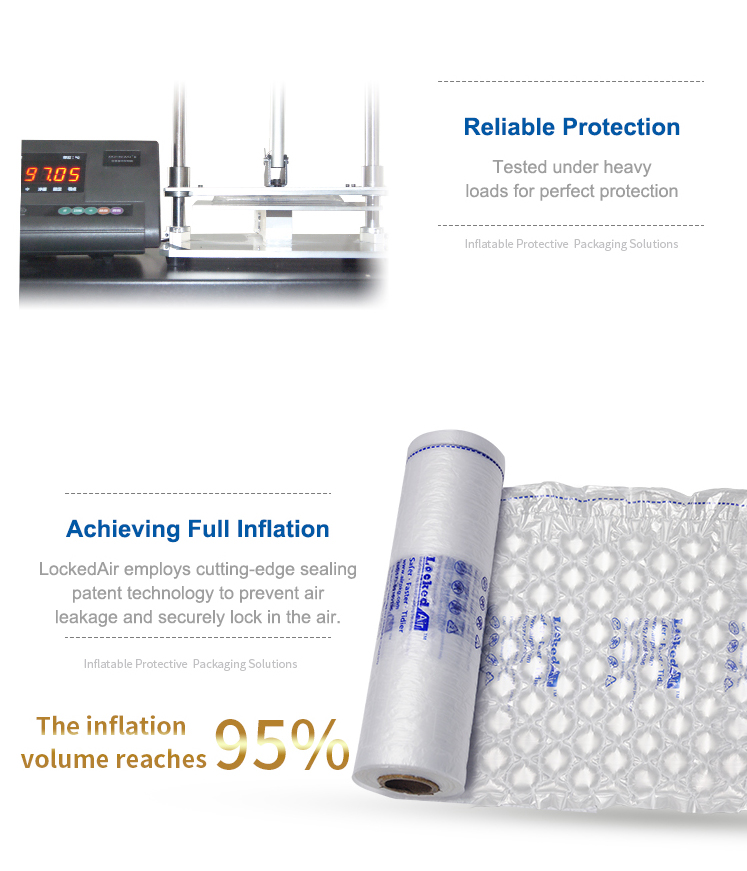

Absorbing the shock with positive pressure air inside.
Replacing the traditional bubble wrap.

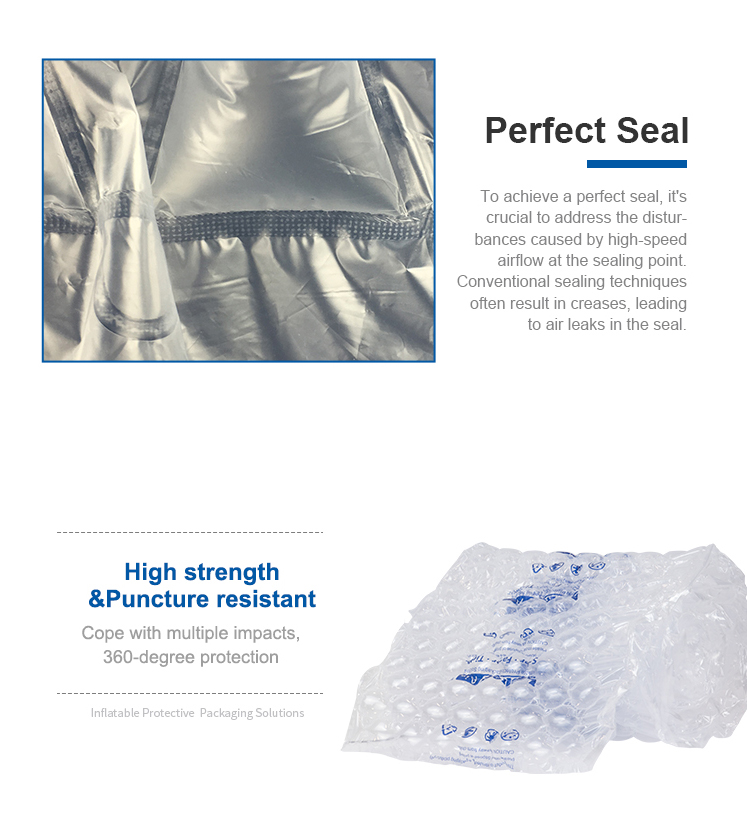

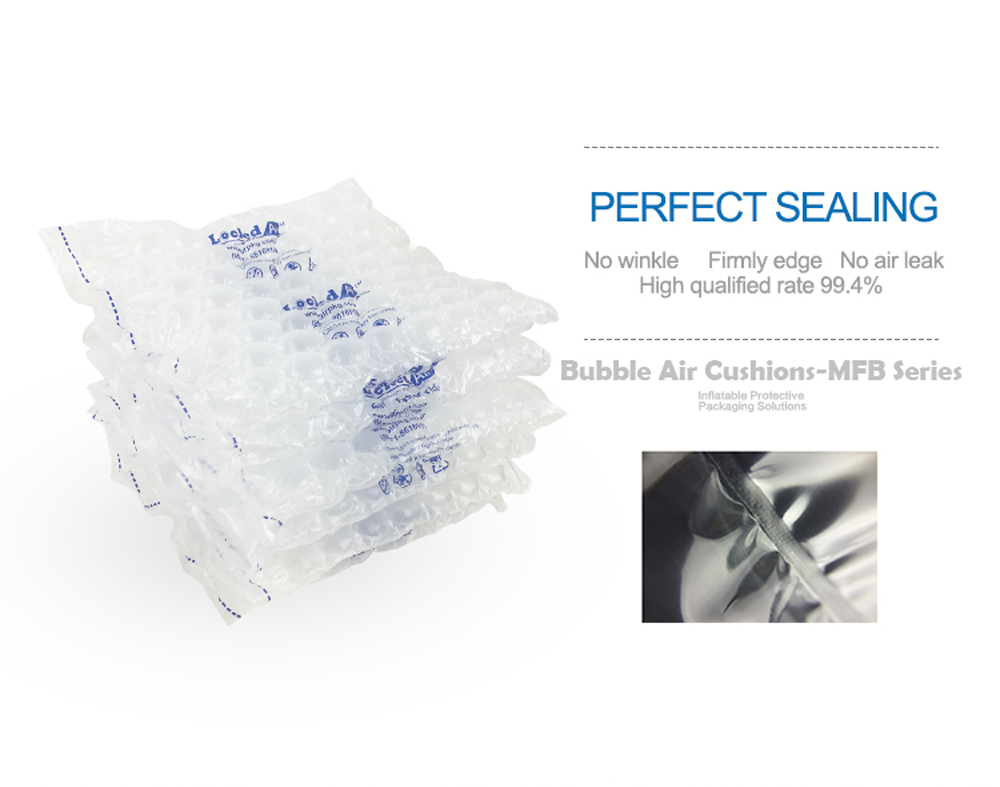

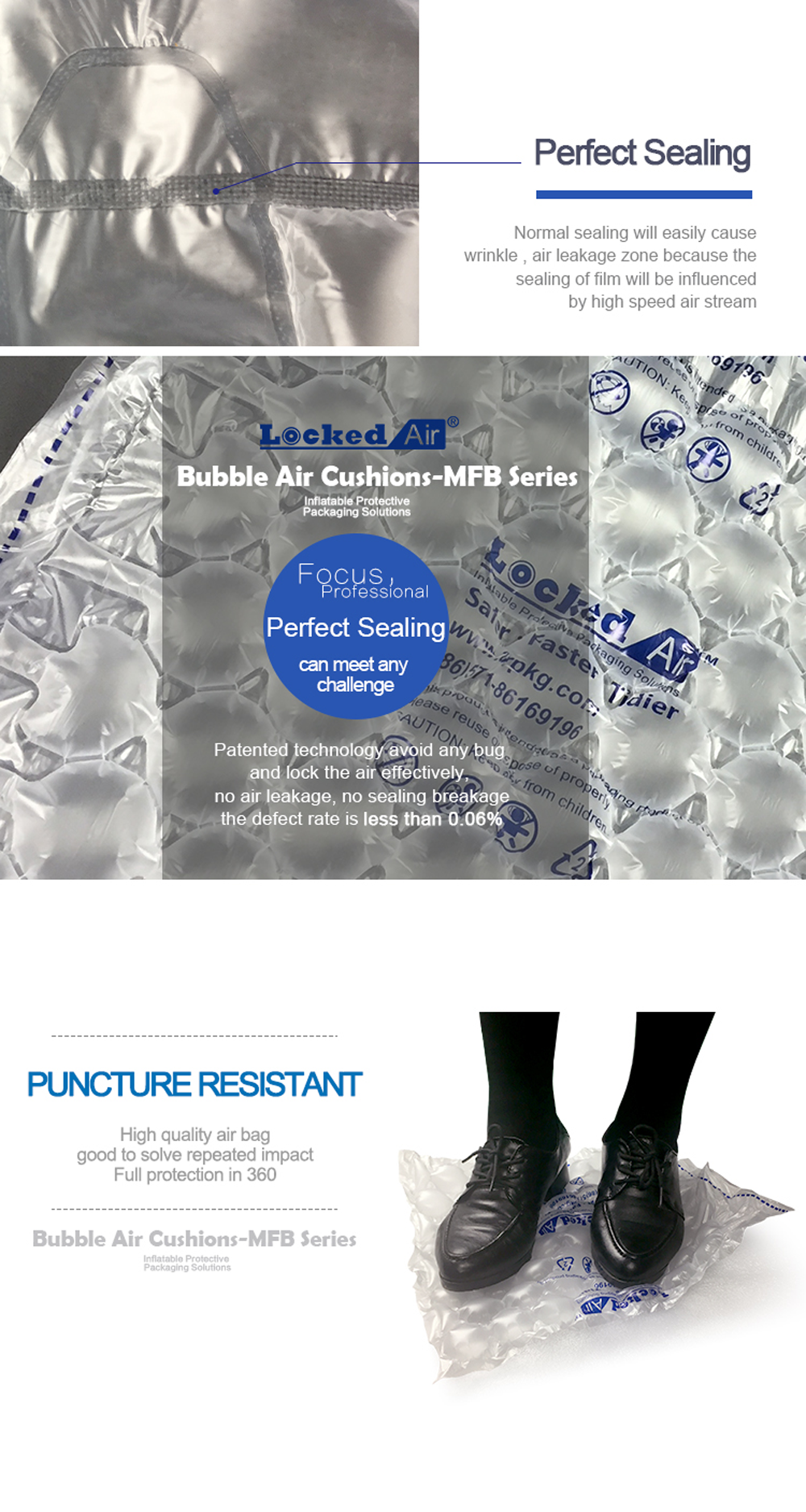

Strong sealing
No air leakage
Positive inside air pressure
High uniformity
Maximum value of film
High efficiency integration system

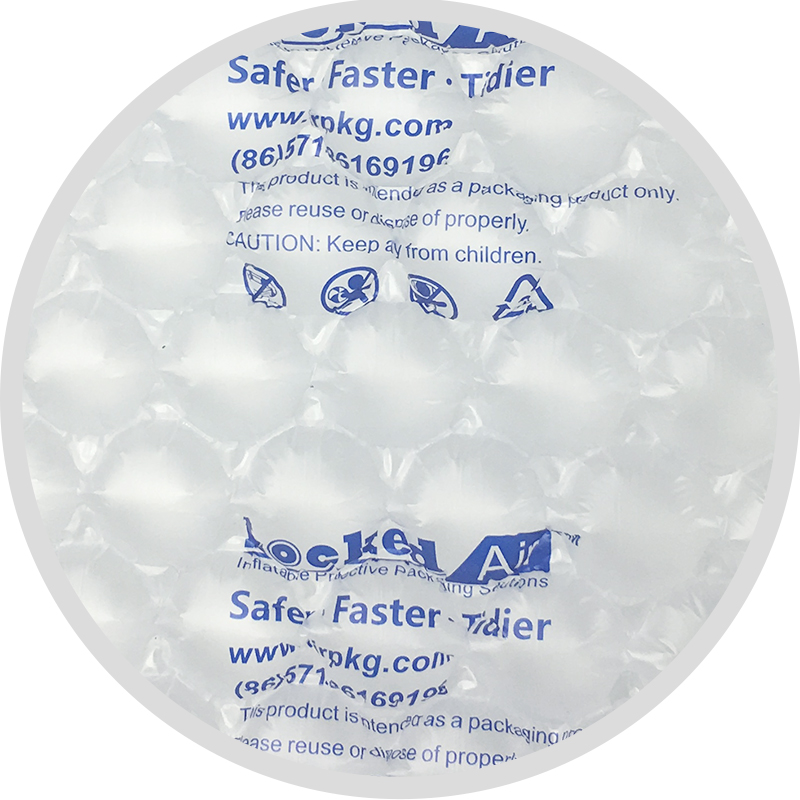

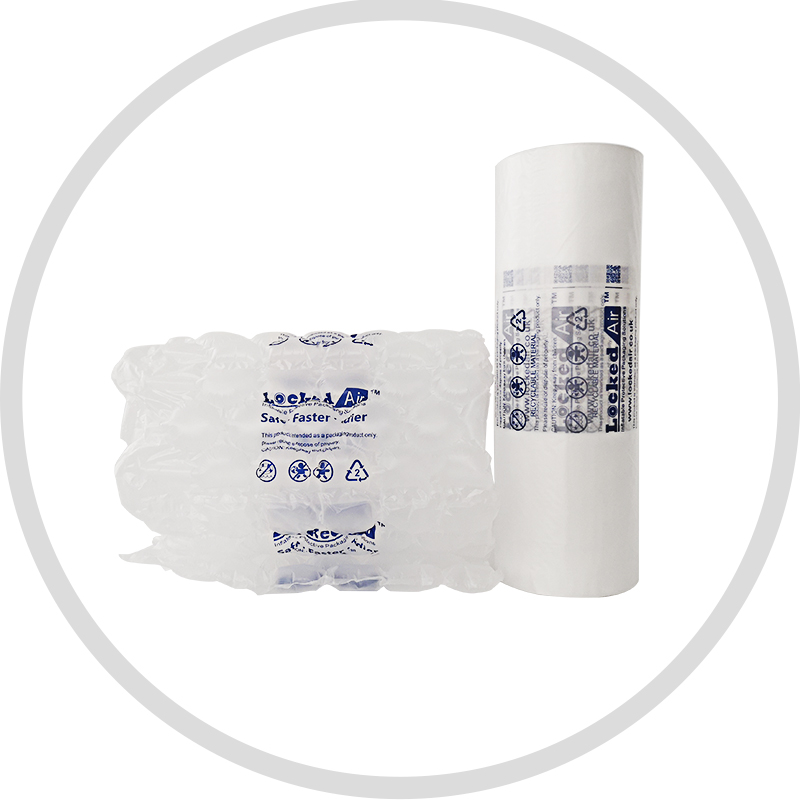

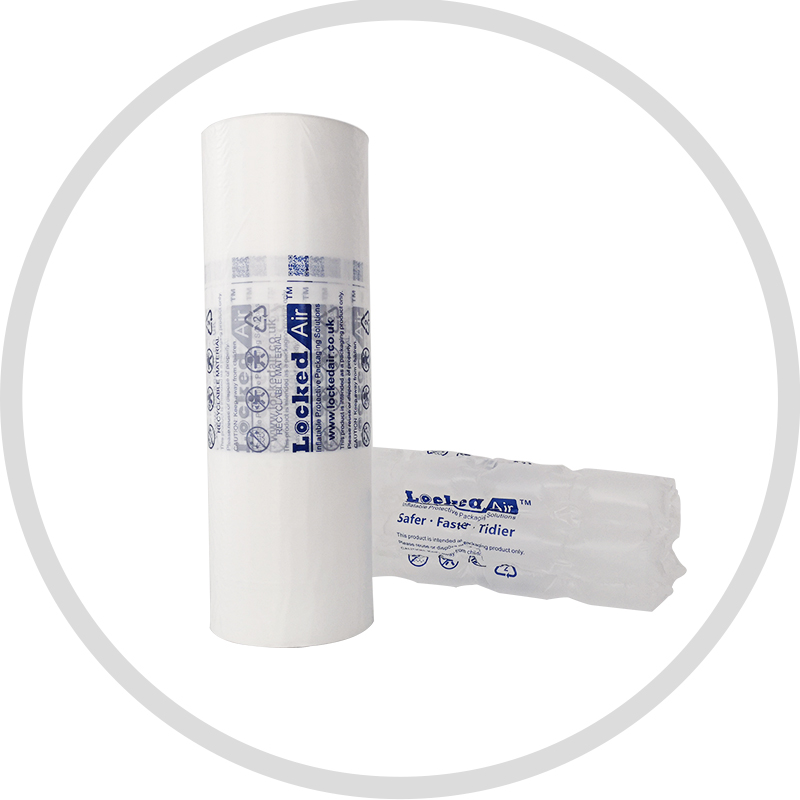

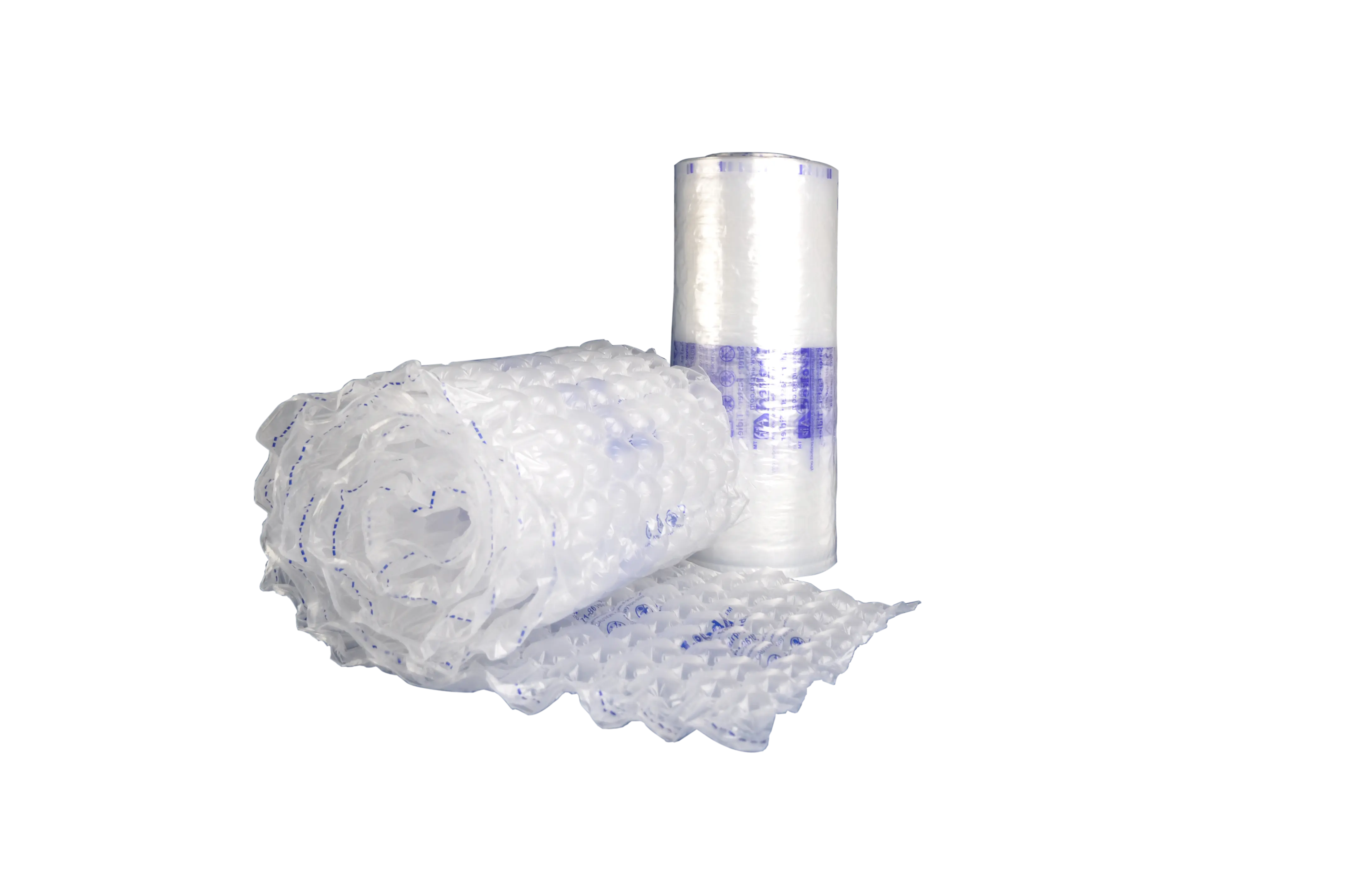

Locked Air® air bubble bag is made from 100% recyclable air bag packing material, with outstanding impact resistance and puncture resistance. The air bubble bags for packing is designed to anti prompt critical shock during the transportation, absorb the shock energy by expanding the film, but not break up. The LDPE based packing air bubbles are crystal clear, and with the customized logo print, that will- increase opening impression a lot. While the HDPE based film could be very thin to lower the cost.
Locked Air® is air bubble bags manufacturer, air bubble bags for packing are strong, clean, low cost and environmentally friendly.

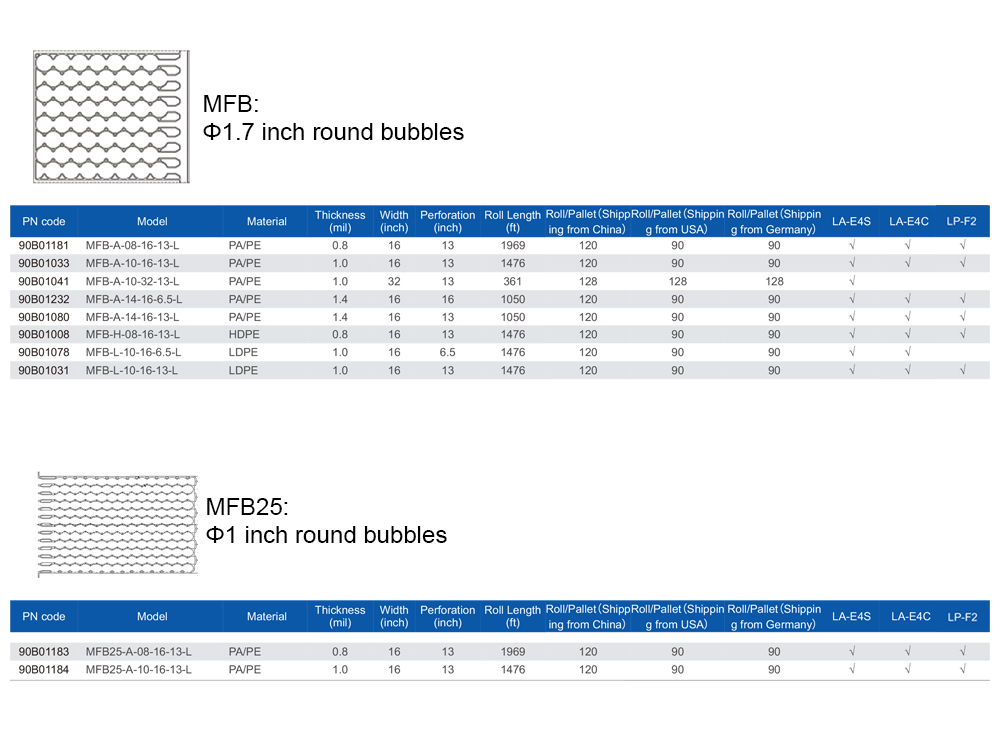

Series | Materiel M | Thickness T (um) | Width W(cm) | Perforation length L(cm) | Printing P | Film Unit | Film Length/Unit (m) | Roll or case/pallet | Pallet size (mm) |
MF | H, DH | 17 | 40 | 450 | 112 | 1100*1100 | |||
H, DH | 20 | 40 | See details in below chart | L: Locked air C: Customized | Roll | 450 | 112 | ||
H, DH | 20 | 60 | 300 | 108 | |||||
H, DH | 20 | 80 | 150 | 128 | |||||
L, DL | 25 | 40 | 450 | 112 | |||||
A | 26 | 40 | 450 | 112 | |||||
A | 26 | 60 | 220 | 108 | |||||
A | 26 | 80 | 110 | 128 | |||||
A | 35 | 40 | 320 | 112 | |||||
A | 35 | 60 | 160 | 108 | |||||
A | 35 | 80 | 80 | 128 |
* MF:Refer to below table for letter in

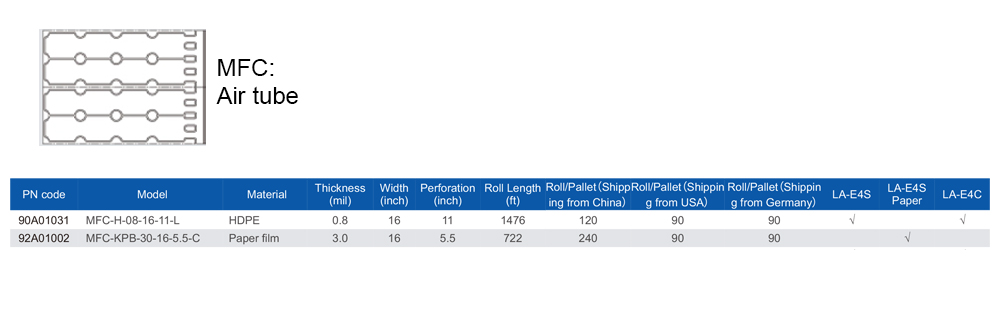

MF code | A | B | C | D |

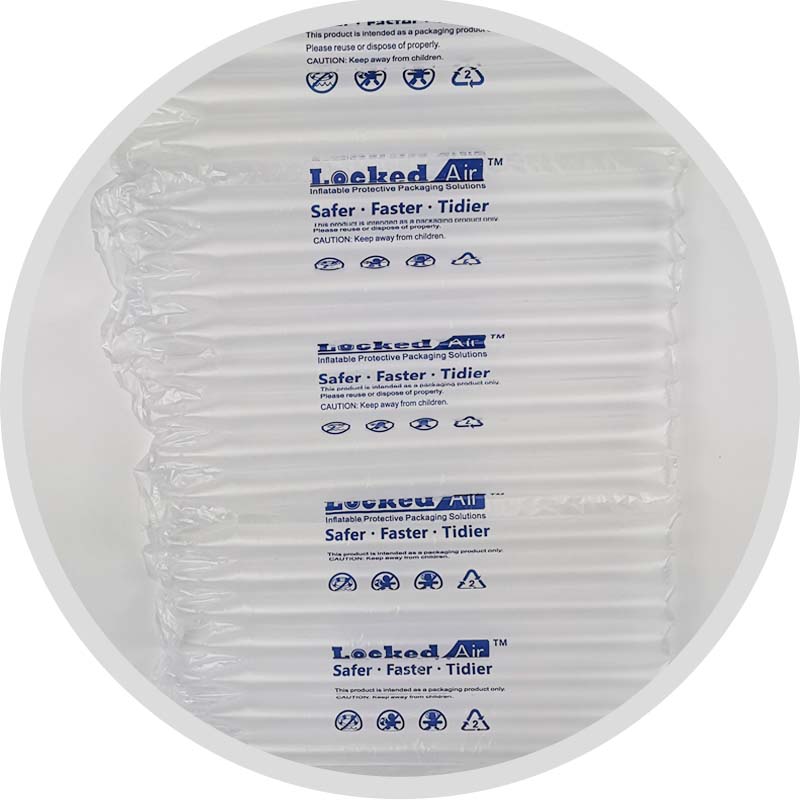

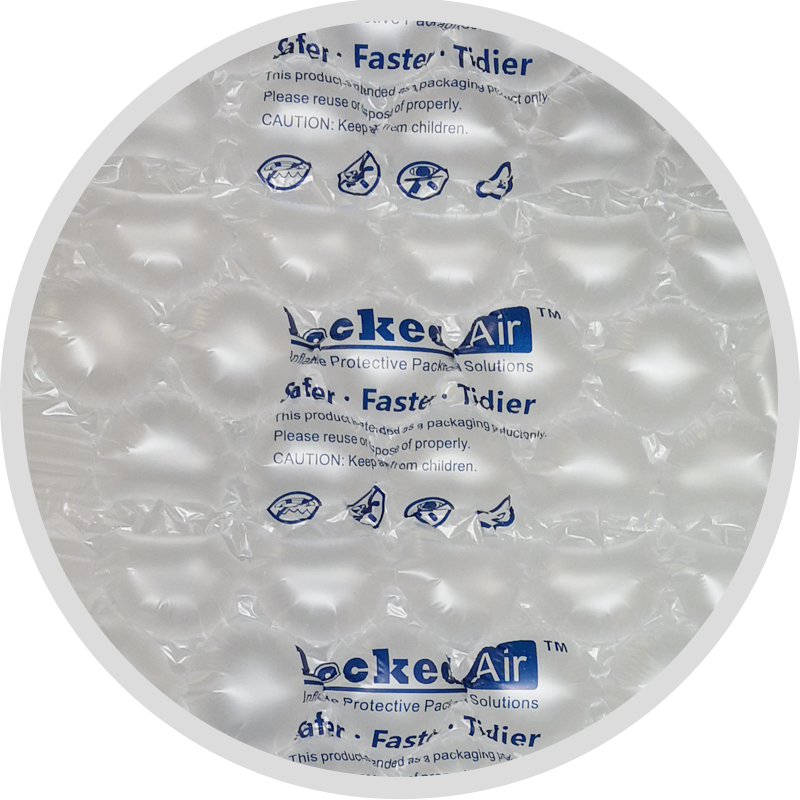

Specification | Air tube | ∅43mm round bubbles | 60mm*88mm bubbles | ∅58mm round bubbles |
Pattern | ![]() ![]() | ![]() ![]() | ![]() ![]() | ![]() |
Perforation Length(cm) | 33 | 33, 16.5 | 14 | 16 |
MF code | E | F | G | H |

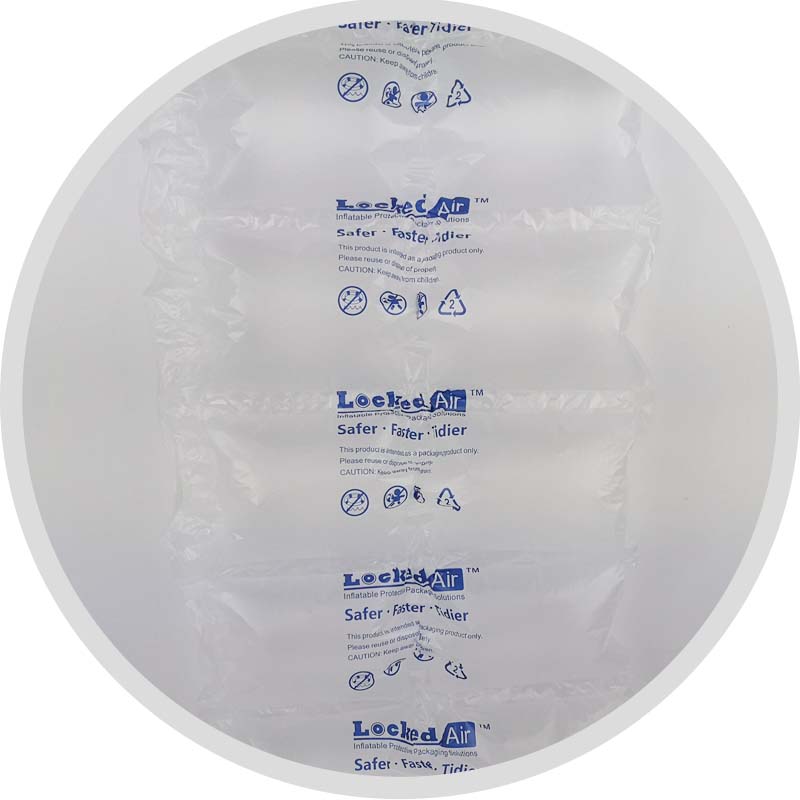

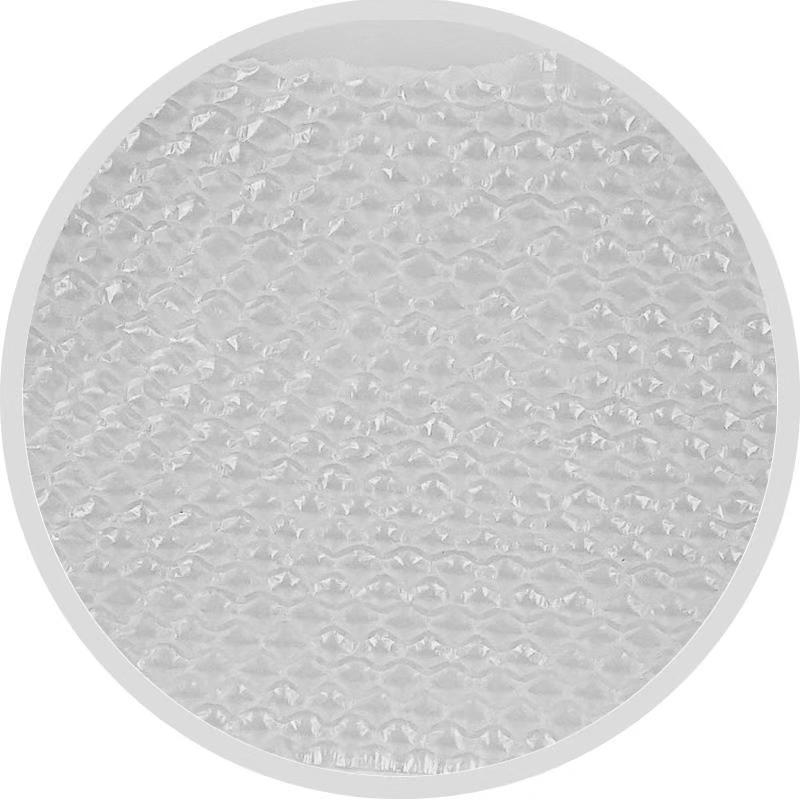

Specification | 130mm*175mm bubbles | Tiny bubbles | ∅15mm round bubbles | 40mm heart shape |
Pattern | ![]() ![]() | ![]() ![]() | ![]() | ![]() ![]() |
Perforation Length(cm) | 14.6 | 34 | 33 | 33 |
